Crucial Checklist for Evaluating a China Construction Machinery Exporter and Factory - Blog

Structural Weld Inspection and Chassis Manufacturing Audit

Frame distortion and weld failure are common issues in heavy equipment under continuous load cycles. A qualified manufacturing facility uses automated submerged arc welding (SAW) and robotic metal active gas (MAG) processes to fabricate main articulated frames, loader arms, and chassis plates.

Sanitary ware

Steel Plate Specifications:

High-tensile structural steel (Q355B or Q690D grade) tested for yield strength ($\ge 355 \text{ MPa}$ to $690 \text{ MPa}$) and impact toughness at $-20^\circ\text{C}$.

Sanitary ware

Non-Destructive Testing (NDT):

100% Ultrasonic Testing (UT) on critical load-bearing butt welds and Radiographic Testing (RT) on primary articulated hinge pins.

Sanitary ware

Hinge Pin Alignment Tolerance:

Machined sleeve tolerances kept within $\pm 0.02 \text{ mm}$ via horizontal boring machines to prevent asymmetric pin wear.

Contact now

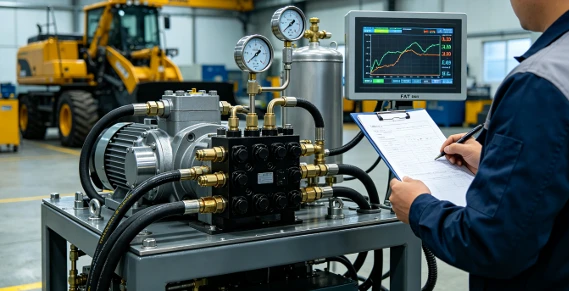

Hydraulic System Pressure Testing and Cycle Timings

Hydraulic system performance directly determines breakout force, cycle efficiency, and thermal stability in continuous aggregate loading. Suppliers must provide factory acceptance testing (FAT) logs covering system relief pressures, pump displacement outputs, and valve response times.

Characteristics of different products

Performance Metric

System Operating Pressure

High-Flow Auxiliary Output

Hydraulic Cycle Time (Lift/Dump/Lower)

Oil Cleanliness Rating

5-Ton Wheel Loader Standard

20MPa-22MPa

N/A

<10.5 seconds

ISO 4406 18/16/13

Skid Steer Loader Standard

18MPa-21MPa

120L/min-150L/min

<9.0 seconds

ISO 4406 17/15/12

Audit Method

In-line hydraulic transducer log

Flowmeter verification at 2000 RPM / 2000

Stopwatch timed under ISO 14397 load / ISO 14397

Laser particle counter sample

Lifecycle Overseas Spare Parts Risk Mitigation

3D Explosion Schematics & Digital Parts Books:

Every exported unit is tied to a specific VIN/chassis serial code linked to cloud-accessible parts catalogs for instant part identification.
Consignment Wear-Part Packages: Fast-moving items-such as bucket teeth, cutting edges, hydraulic seals, and filter kits-are packed and shipped directly with equipment orders.
Standardized Cross-Reference Engine Components:

Utilization of globally serviceable power plants ensures localized access to fuel injectors, filters, and alternators via official dealer networks.

LEARN MORE

FAQ

Q: What structural welding standards are applied to Raygoo heavy machinery chassis?

A: Chassis frames are welded using automated MAG processes conforming to ISO 5817 Level C requirements. High-stress joints undergo 100% ultrasonic testing to ensure structural integrity under dynamic loading.

Q: How are hydraulic components verified before factory release?

A: Every unit undergoes a factory acceptance test (FAT) measuring main relief pressures, oil cleanliness to ISO 4406 standards, pump flow rates, and hydraulic cycle times under load.

Q: What spare parts support is available for long-term fleet maintenance?

A: Units include cloud-linked 3D parts books indexed by VIN. Critical wear packages are shipped directly with machinery, while standardized components align with international OEM service networks.
