Product Details

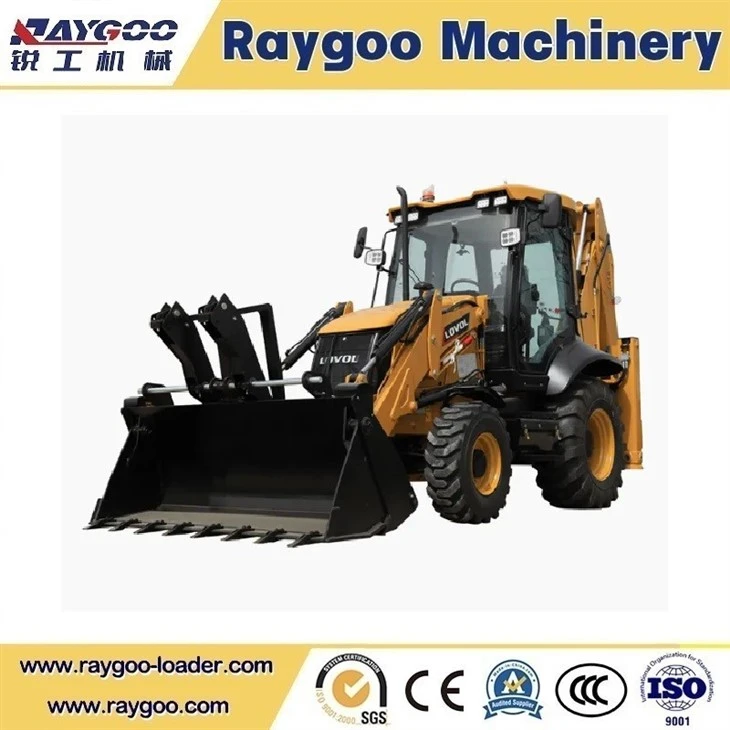

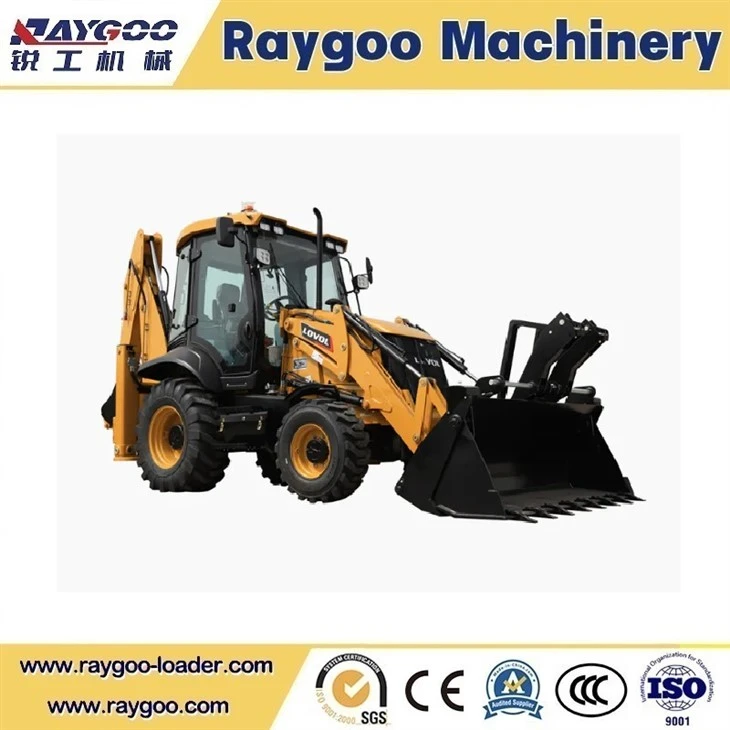

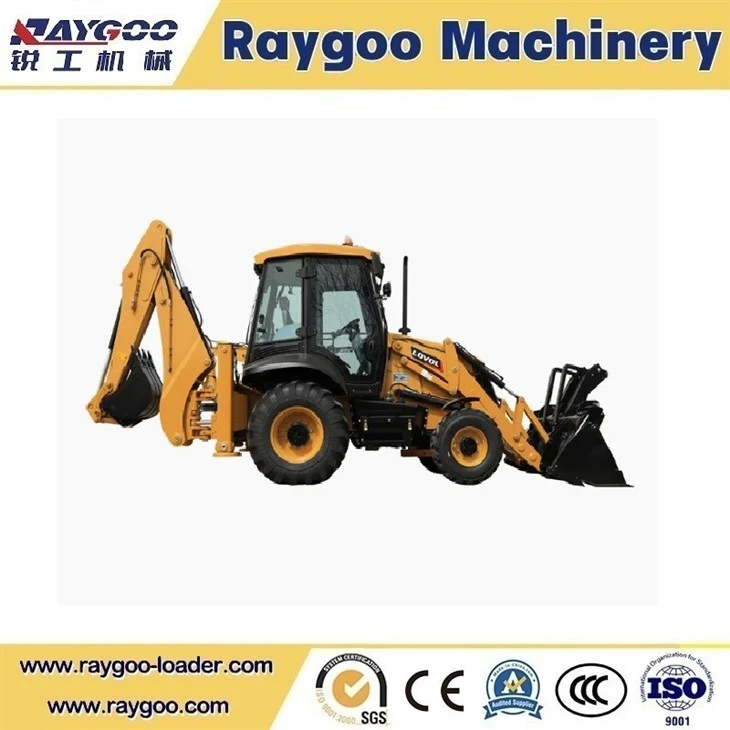

The Lovol Brand New 3.5ton 4X4 backhoe, independently developed by Lovol Heavy Industry, integrates front-end loading and rear-end excavating capabilities into a single unit. Replacing the need for separate wheel loaders and compact excavators, it serves as a versatile piece of equipment for urban and rural engineering projects. With an operating weight of 9,800 kg, it is suitable for a wide range of applications-including municipal maintenance, farmland improvement, landscaping, road upkeep, small-scale infrastructure, utility trenching, and aggregate handling-and handles complex tasks such as short-distance transport, excavating, loading, breaking, and lifting. Capable of flexible operation in confined spaces like tight construction sites, rural roads, and residential landscaping projects, the machine is widely sold in domestic markets as well as in Central Asia, Africa, and Southeast Asia.
FLB468-II
Model
10400kg
Operating Weight
1.0/0.3m3
Bucket capacity
xcmg xc870 Specifications
| Operating weight | 10400KG | Final drive Reduction type | First final drive reduction |
| Transport dimension | Rated load of axles | 4/18.5t | |
| L*W*H | 6030 X 2420 X 3500mm | Transmission system | |
| Wheel base | 2250mm | Torque converter | |
| Min. Ground clearance | 300mm | Model | YJ280 |
| Bucket capacity | 1.0m3 | Type | Single-stage three elements |
| Breakout force | 38KN | Max. Efficiency | 84.4% |
| Loading lifting capacity | 2500KG | Inlet pressure | 0.4Mpa-0.55 Mpa |
| Dumping height | 2650mm | Outlet pressure | 1.2Mpa-1.5 Mpa |
| Dumping reach | 1025mm | Cooling mode | Oil-cooling pressure circulation |
| Loading cutting depth | 52mm | Gearbox | |
| Backhoe capacity | 0.3 m3 | Type | Countershaft power shift type |
| Max. Digging depth | 4085mm | Oil pressure of clutch | 1373Kpa-1569 Kpa |
| Digging slewing amgle | 190° | Gears | 2 Forward and 2 reverse gears |
| Max. Tractive force | 39KN | Travel speed | 28Km/h |
| Engine | Tyre | ||
| Model | Weichai | Model | 14-17.5/19.5L-24 |
| Type | turbocharging four-stroke | Air pressure of front tyre | 0.22 Mpa |
| Cylinder-inner diameter*stroke | 4-108x132 | Air pressure of rear tyre | 0.22 Mpa |
| Rated power | 75KW/100HP | Brake system | |
| Rated speed | 2400r/min | Service brake | Air over oil caliper brake |
| Min. Fuel consumption | 235g/kw.h | External type | |
| Max. Torque | 400N.m | Self-regulation | |
| Displacement | 4.3L | Self-balance | |
| Steering system | Parking/ emergenly brake | Operation power implementing brake | |
| Diverter model | BZZ5-250 | Manual operation power terminating brake | |
| Steering angle | ±36° | Hydraulic system | |
| Min. Turning radius | 6581mm | Bucket digging force | 46.5KN |
The hydraulic operating system of the Lovol backhoe
1. **Load-sensing piston pump hydraulic system:** Flow is distributed on demand with no overflow during no-load operation, resulting in fuel savings of over 15% compared to standard hydraulic systems. The excavator end utilizes pilot controls and supports simultaneous compound movements (lifting, swinging, and bucket retraction), enabling faster work cycles.
2. The front-end loader features an optimized Z-bar linkage, delivering high lifting force and responsive bucket control; it ensures minimal spillage when handling sand, gravel, or earth. With a discharge height of 4,030 mm, it is compatible with standard trucks for loading and unloading. The loader control lever includes a power cut-off function to reduce power loss during no-load operation.
3. Powerful rear-end excavation performance: maximum digging depth of 5,640 mm, maximum digging radius of 5,365 mm, and a bucket digging force of 63 kN. It comes standard with a sideshift excavator arm, allowing for excavation near walls or roadside utilities without frequent machine repositioning-offering a distinct advantage for operations in narrow lanes.
1. Features a fully enclosed panoramic tempered glass cab offering a 360° unobstructed view, ensuring clear visibility of both front and rear working mechanisms; comes standard with a sunshade and full-vehicle LED work lights, providing ample illumination for night operations.
2. Equipped with a shock-absorbing suspension seat and adjustable control levers; the pilot control system requires minimal effort, reducing operator fatigue during prolonged excavation and loading tasks; the cab is sealed to keep out dust and reduce noise, effectively isolating the operator from site dust and engine noise.
3. Includes multi-angle rearview mirrors and an audible-visual reversing alarm for comprehensive safety during excavation and loading; centralized maintenance points allow for easy access to engine oil, hydraulic fluid, and filter elements without dismantling complex structures, making routine maintenance convenient.
Our company
FAQ
Q: What tasks can this backhoe loader perform, and for which project scenarios is it suitable?
A:It is a dual-purpose machine: the front bucket handles earthmoving, loading/unloading of sand and gravel, site leveling, and material transport, while the rear excavator arm digs trenches, foundations, and utility pits. It also supports attachments such as hydraulic breakers, pallet forks, log grapples, and augers for tasks like pavement breaking, cargo handling, and tree-planting hole excavation.
Q: How is the machine powered? Will it lack power or slip easily on muddy, steep, or rough job sites?
A: It is powered by a 74kW Weichai electronically controlled high-pressure common-rail engine, delivering abundant power and high torque with stable performance in high-temperature or high-altitude conditions. It features switchable 2WD/4WD and a wet drive axle with a differential lock.
Use 2WD on flat roads for fuel efficiency; switch to 4WD and engage the differential lock on muddy, steep, or uneven sites to prevent wheel spin and slippage, ensuring off-road capability far superior to standard small loaders.
Q: What are the maximum digging depth and lifting/dumping height of this backhoe loader? Is it convenient for loading and unloading trucks?
A: The maximum digging depth reaches 5,640mm, meeting requirements for municipal utility lines and foundation excavation. The front bucket offers a maximum dumping height of 4,030mm, allowing direct unloading into standard 4.2-meter and 6-meter cargo trucks without the need to raise the ground level, ensuring high material handling efficiency. The excavator arm features a side-shift function, enabling work close to walls or curbs without frequently repositioning the machine.
