Underground Mining Loader

The main pump and motor of the RGCY-06 diesel scooptram are original imported parts, using the YNNEI YN33GBZ engine as the output power, reducing pollution emissions. And the hinge was changed to a slewing support, which changed the arrangement of the swing stand and three-point suspension hinge of the old model, overcoming the shortcomings of the swing stand having a high failure rate, maintenance trouble, serious safety hazards, greatly reduced investment in manpower and material resources, making driving more flexible and efficient.

Send Inquiry

Description

Model	XDCY-06
Bucket Capacity(m°)	0.6
Rated Load(t)	1.2
Operating Weight(t)	5.1
Max.Digging Force(kN)	35
Max.Tractive Force(kN)	38
Speed(km/h)	0-9.7
Forward Gear(km/h)	I 0-4.6, II 0-9.7
Reverse Gear(km/h)	I 0-4.6, II 0-9.7
Grade Ability	16°
Overall Dimension(LxWxH)(mm)	5150x1280x1881
Turning Radius(mm)	2650(Inner side)
Turning Radius(mm)	4250(Qutside)
Min.Ground Clearance(mm)	180
Wheel Base(mm)	2296
Wheel Tread(mm)	980
Max.Dumping Height(mm)	1200
Dumping Reach(mm)	825
Engine Model	YUNNEI YN33GBZ
Rated Power(kW)	65
Tire Model	34x11.5-16

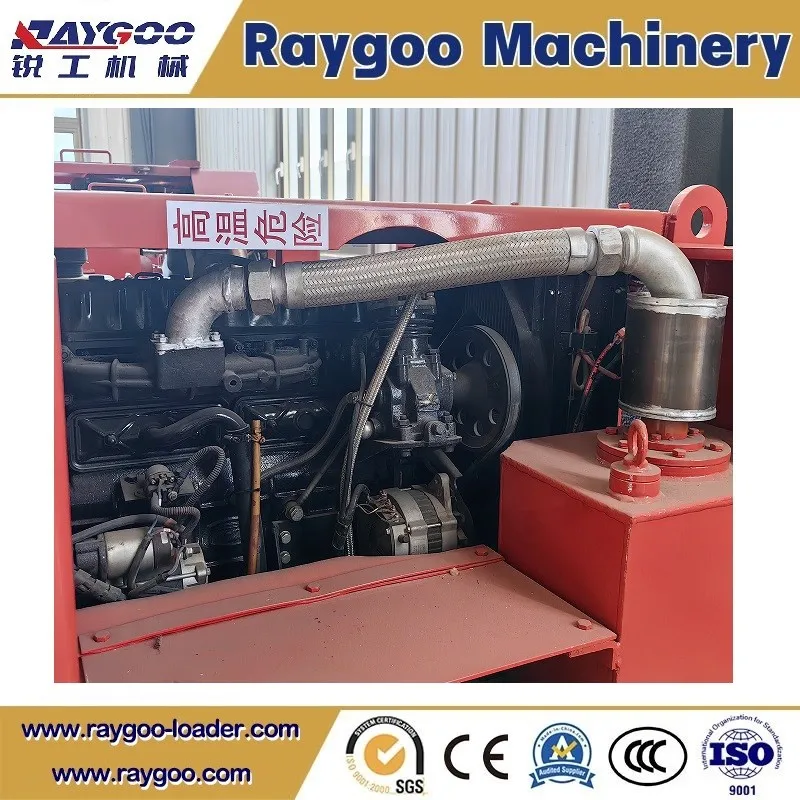

1. Power system adopts China's top brand YUNNEl turbo-charge engine with low speed and high torque. The transmission system uses mining customized hydraulic torque converter and a power shift gearbox to ensure its stability and high efficiency.

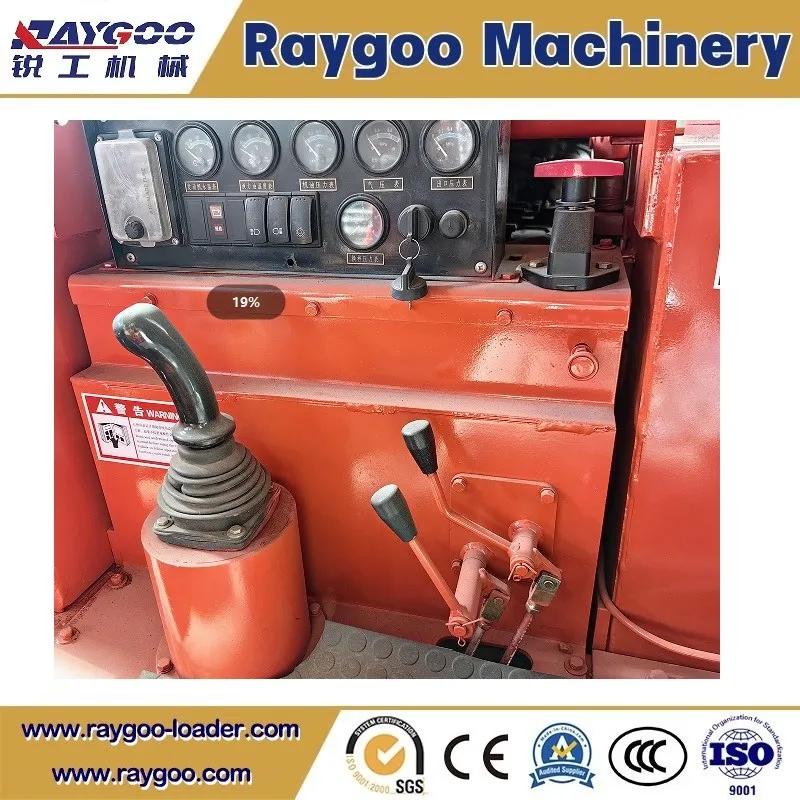

2. The operating system adopts pilot control to make operation easy and work efficiently.

3. The service brake adopts an air-over-hydraulic oil caliper brake to guarantee its safety and reliability.

4. The exhaust cleaning system is equipped with a diesel oxidation catalyst (DOC) and a water filtration system, greatly reducing air pollution.

5.34X11.5-16 wear-resistant and puncture-resistant tires for long working life.

6. Adopt a mature slewing bearing leader slewing structure, hydraulic steering, lower failure rate, and easy to maintain.

7. The loader has a compact structure and a small turning radius; it can be used for shoveling, loading, transporting, and unloading. lt is easy to operate and has high working efficiency.

8. Suitable for mining and roadway excavating, as well as road construction and material transportation.
