Product Details

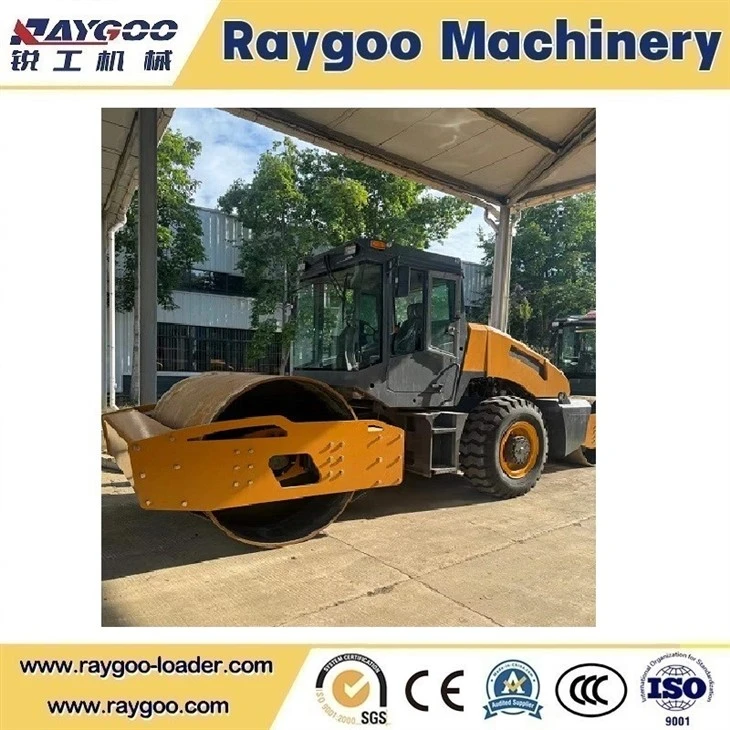

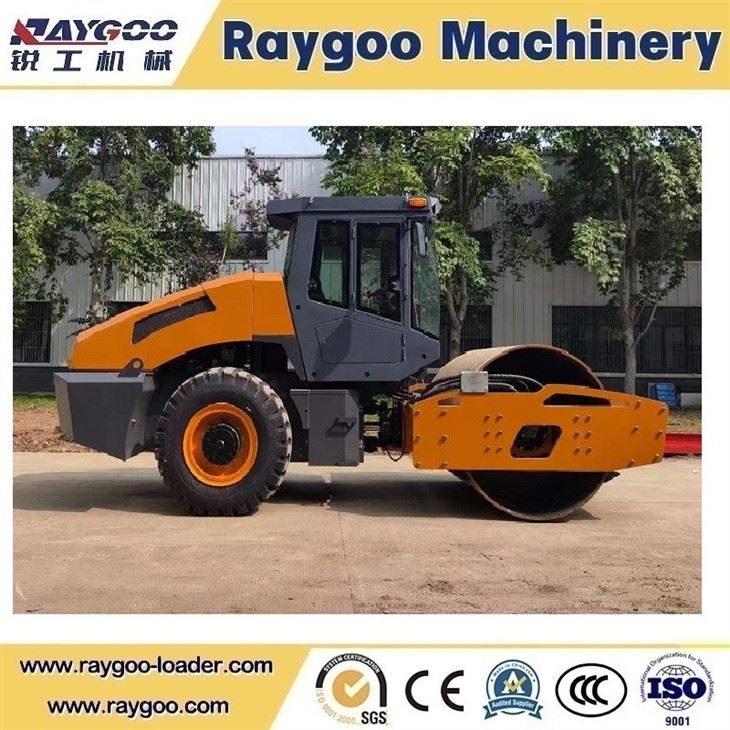

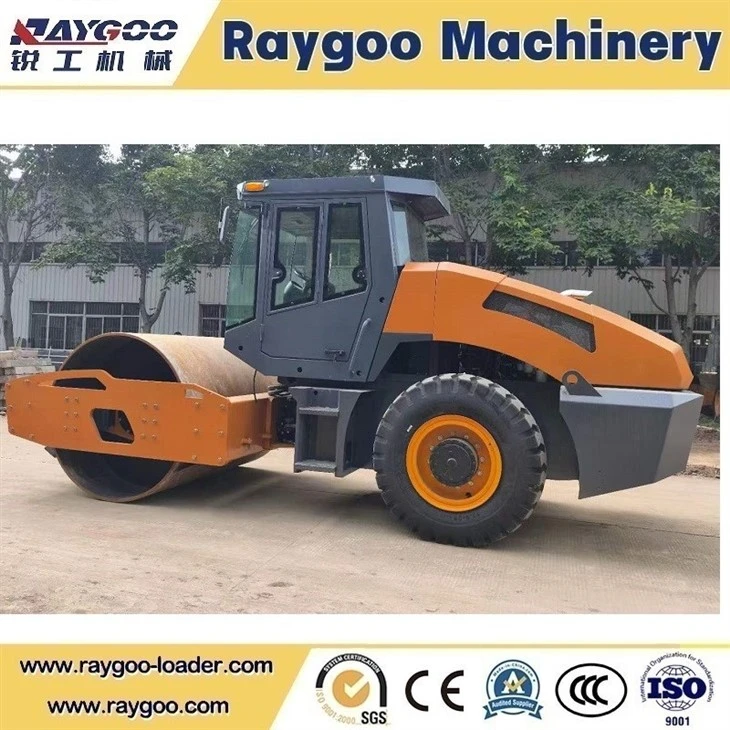

STS12 12-ton single drum vibratory roller is a heavy-duty compaction machine manufactured by Storike Machinery. It is widely applied in highway, municipal road, square, parking lot, airport and foundation compaction works for soil, gravel and asphalt layers. Equipped with a fully enclosed air-conditioned cab, hydraulic articulated steering and high-traction rear tires, this machine balances high compaction efficiency and long-term operation comfort.
STS12
Model
12000kg
Operating Weight
93KW
Rated power
XE113 Road Roller Specifications
| Parameter Item | Specification |
|---|---|
| Model | STS12 |
| Operating Weight | 12000 kg |
| Drum Width | 2130 mm |
| Vibration Frequency | 28Hz / 35Hz |
| Vibration Amplitude | 0.8mm / 1.2mm |
| Exciting Force | 220kN / 280kN |
| Optional Engine | Cummins / Yunnei Diesel Engine |
| Rated Power | 92 kW |
| Travel Speed | 0 ~ 10 km/h |
| Max Gradeability | 30% |
| Steering Type | Hydraulic Articulated Steering |
Key Features
Dual-frequency & dual-amplitude vibration system Two optional vibration modes to handle thick subgrade compaction and thin asphalt surface finishing separately. The thickened seamless steel drum features anti-wear treatment for extended service life.
Full-view enclosed air-conditioned cab Sound insulation, dust-proof and temperature control design. Adjustable suspension seat and large glass windows deliver panoramic visibility, greatly lowering operator fatigue during long shifts.
Application Fields
Highway engineering: Subgrade, subbase and asphalt surface compaction
Municipal construction: Urban roads, residential roads, pedestrian squares
Large infrastructure: Airport apron, large parking lots, industrial workshops
Land development: Landfill, rural cement roads, land consolidation projects
Our company
FAQ
Q: Can this roller work on asphalt roads?
A: Yes. Dual amplitude vibration meets both deep base compaction and fine asphalt surface finishing requirements.
Q: Is air-conditioned cab standard?
A: The fully enclosed cab with air conditioner is standard configuration for STS12.
Q: Are different engine options available?
A:We supply Cummins and Yunnei engines to match different countries' emission regulations.
