Product Details

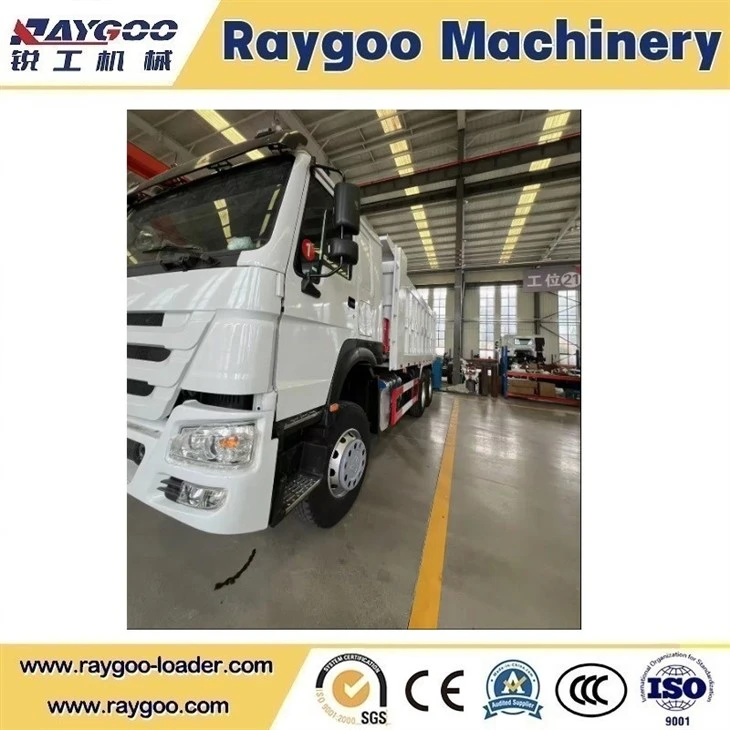

The 6×4 dump truck (tipper truck) is a classic heavy-duty engineering transport vehicle independently developed by China National Heavy Duty Truck Group, widely recognized in global construction, mining, quarrying and infrastructure industries.
Equipped with the iconic HOWO standard high roof cab, this vehicle features mature reliable powertrain, sturdy reinforced chassis and high-strength cargo tipper body. It is built to cope with harsh working conditions including gravel transportation, earthmoving work, mine haulage and urban construction waste delivery.
290HP
Engine Power
25,000kg
Kerb Weight
14–16 tons
Payload Capacity
foton crane truck Specifications
| ITEM | SPECIFICATION |
|---|---|
| Vehicle Model | ZZ3257N3447A1 HOWO 6×4 Dump Truck |
| Drive Type | 6×4 (3 axles, 10 tires + 1 spare tire) |
| Cab | Classic Standard High Roof Cab 2 seats, single sleeper, adjustable shock-absorbing driver seat, optional A/C |
| Overall Dimension(L×W×H) | 8400 × 2496 × 3400 mm (Customizable) |
| Wheelbase | 3825+1350 mm |
| GVW (Gross Vehicle Weight) | 25,000 kg |
| Curb Weight | Approx. 10,000 kg |
| Payload Capacity | 14–16 tons |
| Engine Options | WD615 series Diesel Engine, 6-cylinder inline, turbocharged intercooled 290HP / 336HP / 371HP / 420HP available Emission Standard: EURO 2 / EURO 3 / EURO 4 / EURO 5 Optional |
| Displacement | 9.726 L |
| Transmission | HW19710 Manual Gearbox, 10 Forward + 2 Reverse Gears, with PTO |
| Front Axle | HF9 Heavy Load Front Axle, Rated Load: 9 tons |
| Rear Axle | HC16 Heavy-duty Double Reduction Axle, Rated Load: 16 tons, with differential lock Final Drive Ratio: 4.42 / 4.8 / 5.73 Optional |
| Suspension | Multi-leaf spring suspension |
| Steering System | Hydraulic power steering |
| Brake System | Dual-circuit air brake, optional ABS |
| Tire Size | 12.00R20 Radial Truck Tires |
| Fuel Tank | 300 L Steel Fuel Tank |

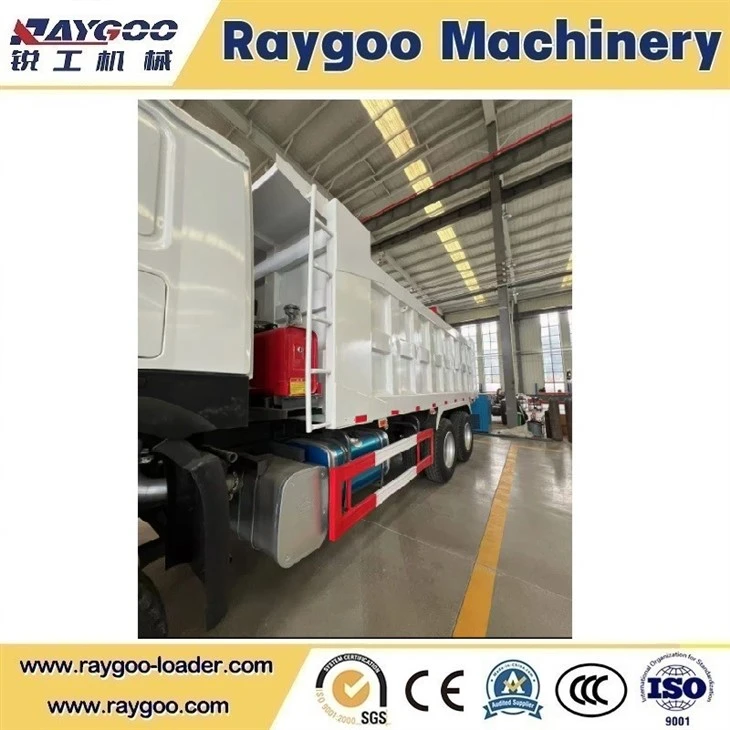

| Tipper Cargo Body | High strength wear-resistant steel cargo box Volume: 16–20 CBM customizable Hydraulic front lifting cylinder, tipping angle ≥47° |
| Electrical System | 24V Negative Ground, 2×12V 165Ah batteries |
| Available Color | White, Red, Yellow, Black (As picture white color in stock) |
| Application | Earthwork, mine transport, construction waste, quarry, infrastructure bulk cargo transportation |
Key Advantages

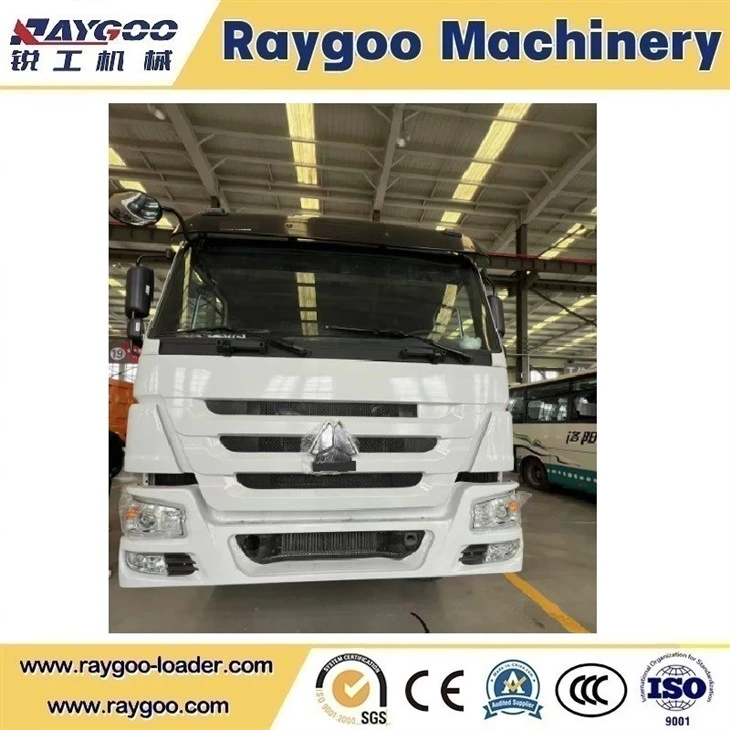

Durable & Comfortable Cabin The classic HOWO long cab integrates wide vision windows, multi-angle rearview mirror system, adjustable driver seat and optional air conditioner. The cab structure realizes effective shock absorption, greatly reducing driver fatigue during long shifts. The streamlined exterior sun visor prevents strong sunlight interference for safer driving.
Powerful & Stable Power Assembly Multiple horsepower options covering 290HP, 336HP, 371HP and 420HP are available. Matched with HW series 10-speed manual transmission, the powertrain delivers strong low-speed torque, outstanding climbing performance and excellent fuel economy. It meets different emission standards to satisfy various country import regulations.
Core Advantages
Power & Transmission System Equipped with 440-horsepower MAN technology diesel engine, matched with multi-speed heavy-duty manual transmission. Low-speed high torque output ensures easy start under full load on muddy, rugged construction roads; small rear axle speed ratio realizes high-speed empty return, balancing climbing capacity and fuel economy. Double-layer reinforced frame structure improves torsional resistance, adapting to long-term harsh working conditions.
Lightweight Large-Volume Cargo Body Custom U-shaped cargo compartment dimension: 6.5m × 2.35m × 1.5m, effective volume up to 22.9 cubic meters. High-strength wear-resistant steel plate is adopted for the carriage to resist impact and abrasion of stone, gravel and muck. The total curb weight of the truck is controlled at about 15 tons, realizing higher effective load capacity and higher transport revenue per trip.
Heavy-load Chassis Structure

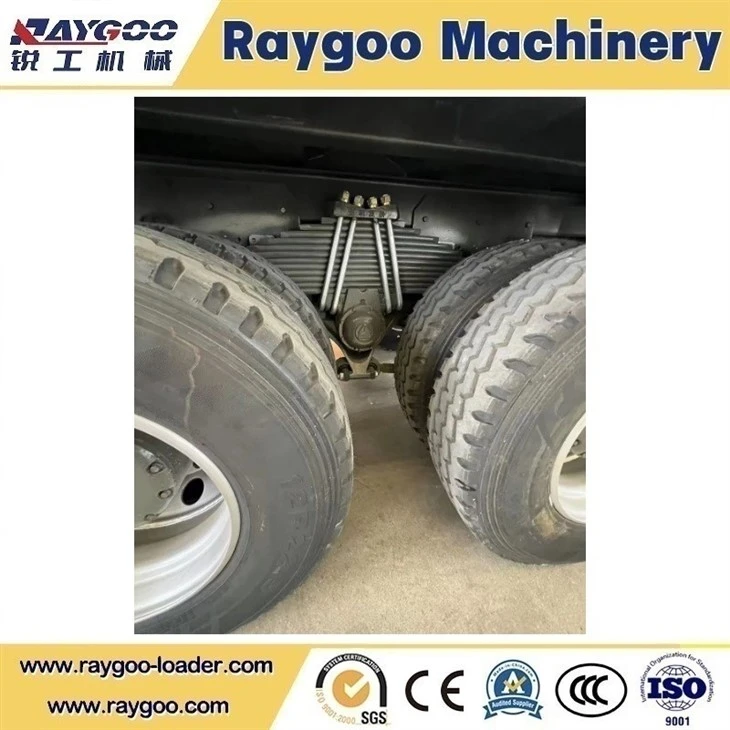

Adopt 6×4 three-axle driving layout (10 tires). Heavy-duty HC16 rear axle with differential lock provides powerful traction on muddy, rugged and slippery roads. Thickened leaf spring suspension enhances loading capacity and impact resistance, adapting to frequent bumpy off-road operation
...
Our company
FAQ
Q: What horsepower options can I choose for this HOWO dump truck?
A: We have 290HP, 336HP, 371HP and 420HP engines for selection. Different horsepower meets your different working conditions.
Q:Can I customize the size and volume of the cargo box?
A: Yes. The cargo box volume can be made from 16 CBM to 20 CBM. We can adjust thickness, length and height according to your local demand.
Q: Is it easy to get spare parts after purchase?
A: Yes. The trucks have huge global spare parts supply network. Most wearing parts are easy to buy with competitive price, low maintenance cost.
