Product Details
Reliable 26 Ton Used Kobelco SK260 Hydraulic Excavator Ready for Global Projects
The Used Kobelco SK260 Excavator is a proven 26-ton crawler excavator designed for demanding earthmoving, quarry, mining, road construction, utility installation, and infrastructure projects. Equipped with a powerful HINO diesel engine and Kobelco's advanced hydraulic system, the SK260 delivers excellent digging force, smooth operation, and outstanding fuel efficiency.
Our available used Kobelco SK260 excavators are carefully inspected before shipment. Multiple manufacturing years and working hour options are available, allowing buyers to choose machines that match different budgets and project requirements.
Whether you are looking to buy a used Kobelco SK260 excavator, compare used Kobelco excavator prices, or source equipment for international projects, this model offers an excellent balance between performance, operating cost, and long-term reliability.
Kobelco SK260
Model
25,700kg
Operating Weight
1.0m3
Bucket capacity
sk260 kobelco Specifications
| Item | Specification |
|---|---|
| Model | KOBELCO SK260LC / SK260LC-11 |
| Machine Type | Crawler Hydraulic Excavator |
| Operating Weight | 26,700 - 27,700 kg |
| Bucket Capacity | 0.40 - 1.40 m³ |
| Engine Model | YANMAR 4TN107FTT |
| Engine Type | 4-cycle, water-cooled, direct injection diesel engine with turbocharger and intercooler |
| Emission Standard | EU Stage V |
| Rated Power | 155 kW (208 HP) @ 2,200 rpm |
| Displacement | 4.567 L |
| Fuel Tank Capacity | 403 L |
| Max. Torque | 805 Nm |
| Hydraulic Pump Type | Variable displacement axial piston pumps + gear pumps |
| Main Pumps | 2 × Variable displacement axial piston pumps |
| Main Pump Flow | 2 × 245 L/min |
| Extra Gear Pump Flow | 42.6 L/min |
| Pilot Pump Flow | 21 L/min |
| Hydraulic Tank Capacity | 165 L |
| Hydraulic System Oil Capacity | 273 L |
| Main Relief Pressure | 34.3 MPa |
| Power Boost Pressure | 37.8 MPa |
| Bucket Digging Force | 170-187 kN |
| Arm Crowding Force | 122-156 kN |
| Travel Speed (High/Low) | 5.8 / 3.6 km/h |
| Swing Speed | 12.5 rpm |
| Gradeability | 70% (35°) |
| Drawbar Pulling Force | 243 kN |
| Overall Length | 10,210 mm |
| Overall Height (Top of Boom) | 3,240 mm |
| Overall Width | 3,190 mm |
| Overall Height (Top of Cab) | 3,090 mm |
| Ground Clearance | 440 mm |
| Rear End Ground Clearance | 1,090 mm |
| Tail Swing Radius | 3,100 mm |
| Distance from Swing Center to Rear End | 3,070 mm |
| Track Length | 4,640 mm |
| Track Gauge | 2,590 mm |
| Shoe Width | 600 mm |
| Upper Structure Width | 2,980 mm |
| Max. Digging Reach | 10,300 mm |
| Max. Digging Depth | 7,000 mm |
| Max. Digging Height | 9,790 mm |
| Max. Dumping Height | 6,880 mm |
| Max. Vertical Wall Digging Depth | 6,150 mm |
Applications
Road construction
Building foundations
Quarry operations
Mining support work
Land development
Utility installation
Pipeline construction
Demolition projects
Earthmoving
Material loading
Machine Inspection for sk260 excavator
Each used Kobelco SK260 excavator is inspected before shipment to ensure dependable operating condition.
Inspection items include:

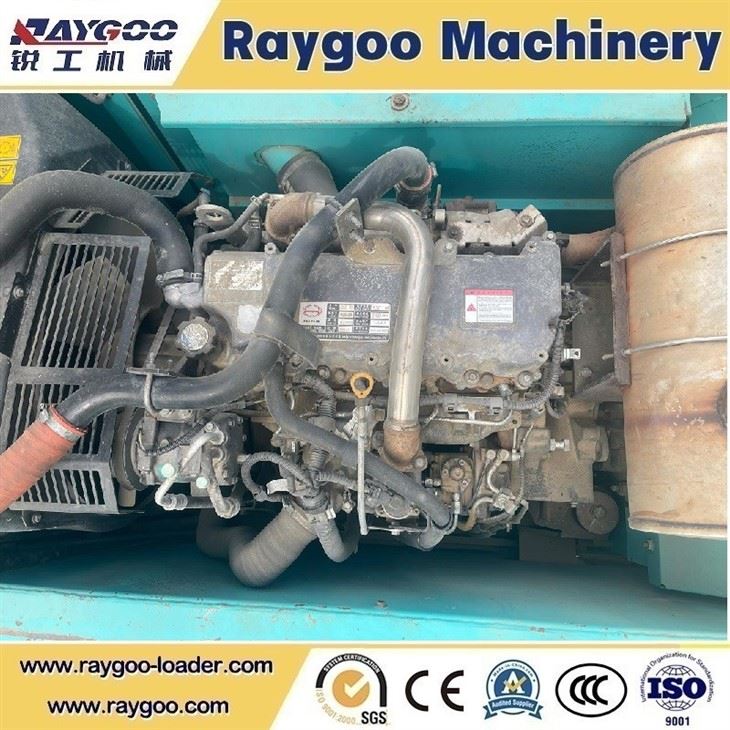

Engine performance

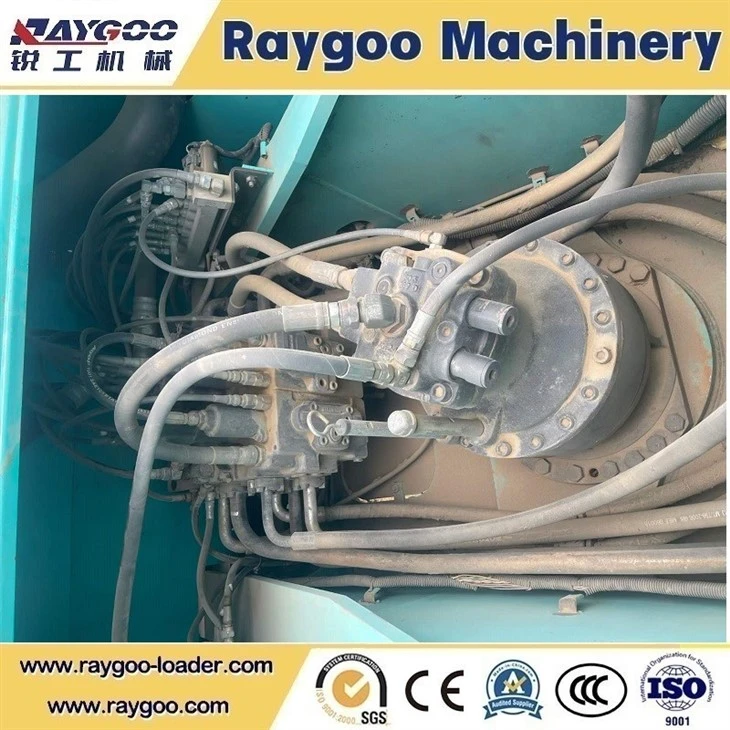

Hydraulic pump operation
Hydraulic cylinder condition
Boom and arm structure
Swing bearing
Travel motors
Final drives

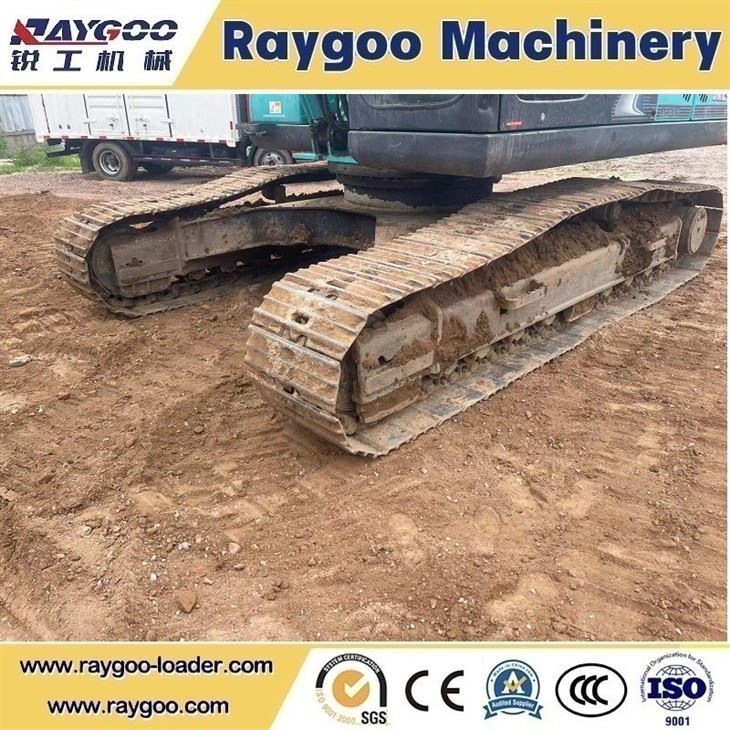

Undercarriage wear
Electrical system
Cabin condition
Cooling system
Working functions
Leakage inspection
Photos, videos, cold-start demonstrations, and live video inspections can be provided upon request.
Optional Configurations for kobelco 260 excavator
Original enclosed cabin
Air conditioning
Hydraulic quick coupler
Various bucket sizes
Rock bucket
General purpose bucket
Ripper attachment
Hydraulic breaker piping
Auxiliary hydraulic lines
Heavy-duty undercarriage
Rear-view camera
Additional work lights
...
Our company
FAQ
Q: Is the used Kobelco SK260 excavator ready for immediate work?
A: Yes. Every machine is inspected and tested before shipment to ensure normal operating condition.
Q: Can I receive recent machine photos and videos?
A: Yes. Detailed photos, walk-around videos, and working videos can be provided before purchase.
Q: Can the machine be inspected online?
A: Yes. Live video inspections are available upon request.
