Product Details
With a ROPS/FOPS/OPG canopy, the XE19U provides excellent visibility, stability, optimal comfort and safety.
Ideal for tough jobs in tight corners that demand precision control and state-of-the-art performance, the XE19U is ready to work. Includes many advanced features: Zero-tail swing, hydraulic retractable undercarriage, boom swing, short and long arm and powerful digging forces.
Add high reliability, low operating costs, and superior efficiency, and you've got the ideal mini excavator for a wide range of modern jobs.

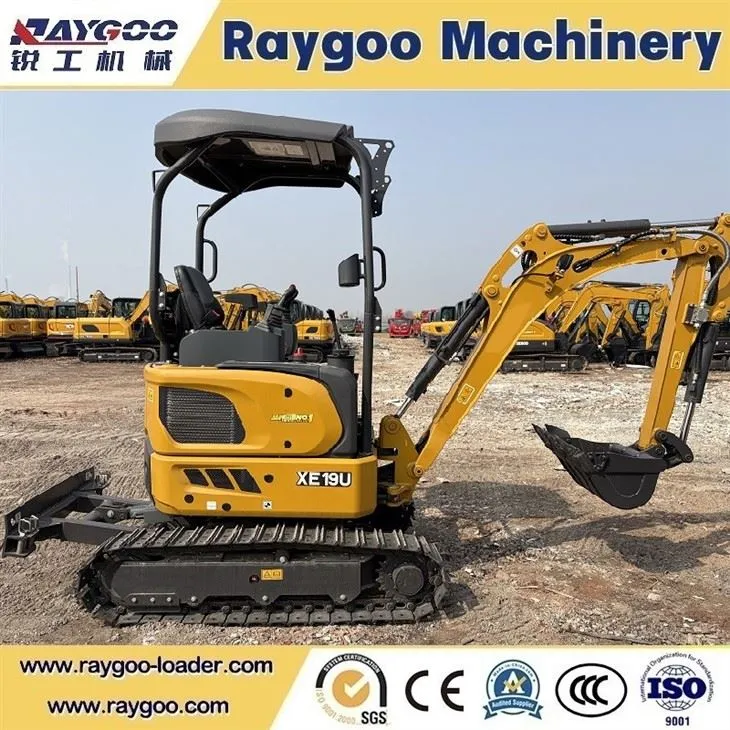

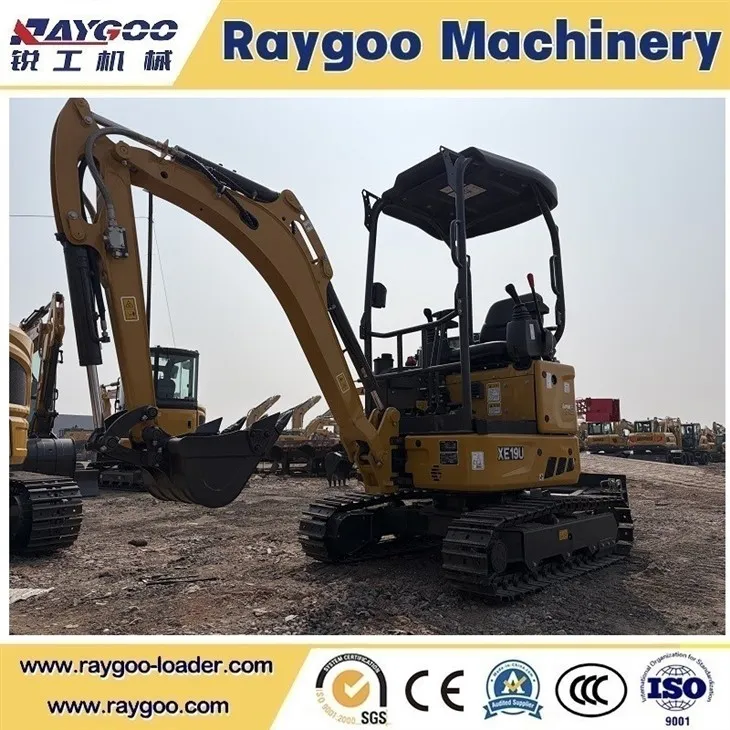

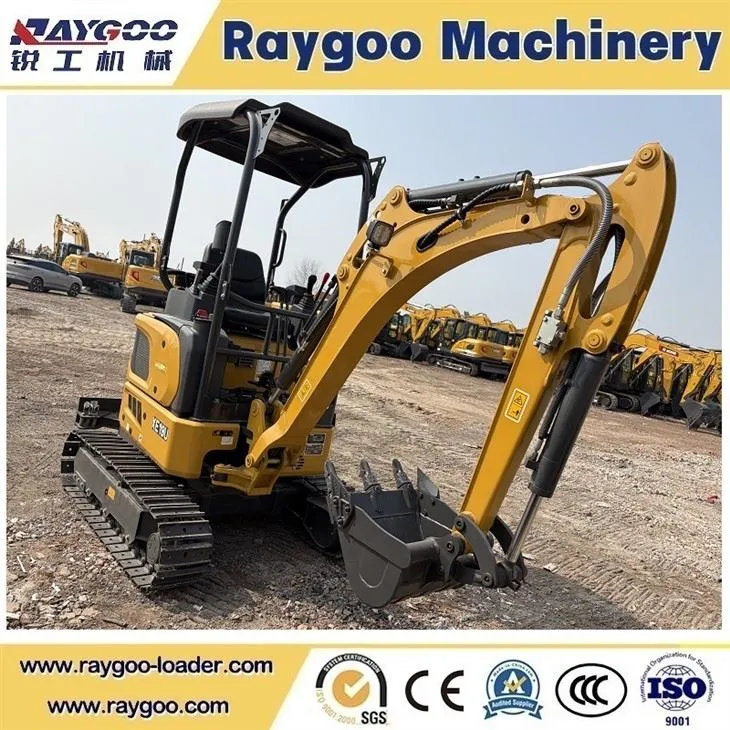

XE19U
Model
1,990kg
Operating Weight
0.04m3
Bucket capacity
Specifications
|
Description |
Unit |
Parameter value |
|
|
Operating weight |
Kg |
1900 |
|
|
Bucket capacity |
m³ |
0.04 |
|
|
Engine |
Model |
/ |
D1105 |
|
No. of cylinders |
/ |
3 |
|
|
Output power |
kw/hp |
15.4/20.9 |
|
|
torque/speed |
N.m/rpm |
70.3/1600 |
|
|
Displacement |
L |
1.123 |
|
|
Hydraulic system |
Travel speed(H/L) |
km/h |
4.2/2.2 |
|
Gradeability |
° |
30° |
|
|
Pressure of prime valve |
MPa |
25.3 |
|
|
Pressure of travel system |
MPa |
25.3 |
|
|
Pressure of swing system |
MPa |
11 |
|
|
Pressure of pilot system |
MPa |
3.5 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
25 |
|
Hydraulic tank capacity |
L |
14.6 |
|
|
Engine oil capacity |
L |
5.1 |
|
|
Appearance size |
Overall length |
mm |
3550 |
|
Overall width |
mm |
990/1300 |
|
|
Overall height |
mm |
2395 |
|
|
Width of platform |
mm |
990 |
|
|
Overall width of chassis |
mm |
990/1300 |
|
|
Width of crawler |
mm |
230 |
|
|
Tumbler distance |
mm |
1230 |
|
|
Track gauge |
mm |
760/1070 |
|
|
Counterweight clearance |
mm |
433.5 |
|
|
Min. ground clearance |
mm |
147.5 |
|
|
Working scope |
Min. tail swing radius |
mm |
675 |
|
Max. digging height |
mm |
3420 |
|
|
Max. dumping height |
mm |
2455 |
|
|
Max. digging depth |
mm |
2520 |
|
|
Max. vertical wall digging depth |
mm |
1750 |
|
|
Max. digging reach |
mm |
4055 |
|
|
Min. swing radius |
mm |
1575 |
|
|
Standard |
Length of boom |
mm |
1810 |
|
Length of arm |
mm |
1090 |
|
|
Bucket capacity |
m³ |
0.04 |
|
Applications
Urban Construction
Ideal for city projects, narrow streets, and residential construction areas.
Agricultural & Farm Work
Suitable for digging trenches, land leveling, and daily farm maintenance.
Landscaping Projects
Perfect for garden renovation, tree planting, and outdoor landscaping tasks.
Municipal Engineering
Widely used in pipeline installation, cable laying, and road repair work.
Indoor & Tight Space Operations
Compact size allows efficient work in basements, warehouses, and confined job sites.
Attachments

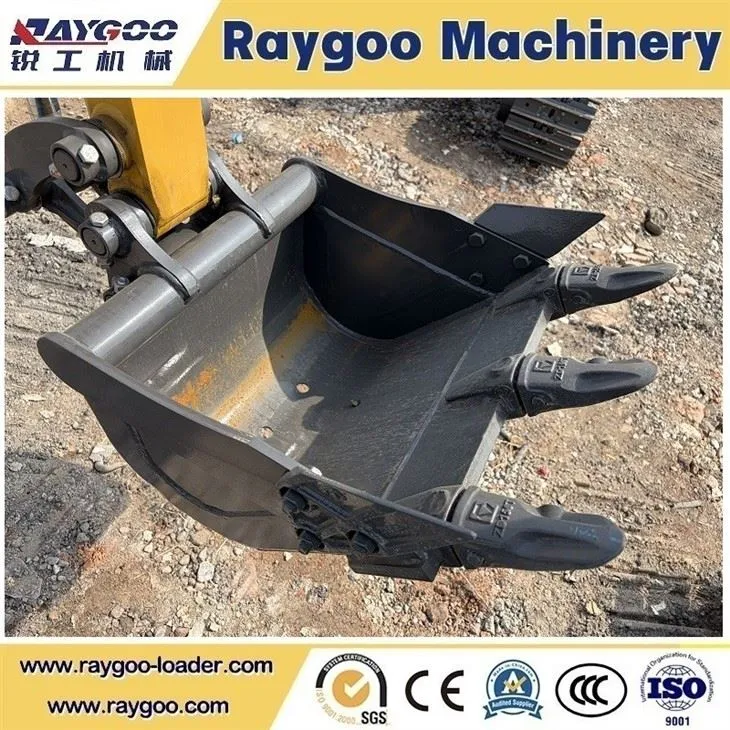

Digging Attachments
Including standard bucket, narrow bucket, and leveling bucket for excavation and trenching work.
Breaking Attachments
Hydraulic breaker for demolition, road repair, and concrete crushing applications.
Grabbing Attachments
Grapple and wood grabber for handling logs, stones, and construction materials.
Drilling Attachments
Auger drill suitable for hole digging, fence installation, and planting projects.
Quick Connection Attachments
Quick hitch and hydraulic thumb for fast attachment changes and improved working efficiency.
...
Our company
FAQ
Q1: What kind of jobs is the XE19U suitable for?
A: The XE19U is ideal for landscaping, urban construction, farm work, trenching, and other small-scale projects in narrow spaces.
Q2: Can the XE19U use different attachments?
A: Yes, the XE19U supports multiple attachments such as hydraulic breakers, augers, grapples, and buckets for different applications.
Q3: Is the XE19U easy to transport?
A: Yes, its compact size and lightweight design make it easy to load, transport, and operate on various job sites.
