Product Details

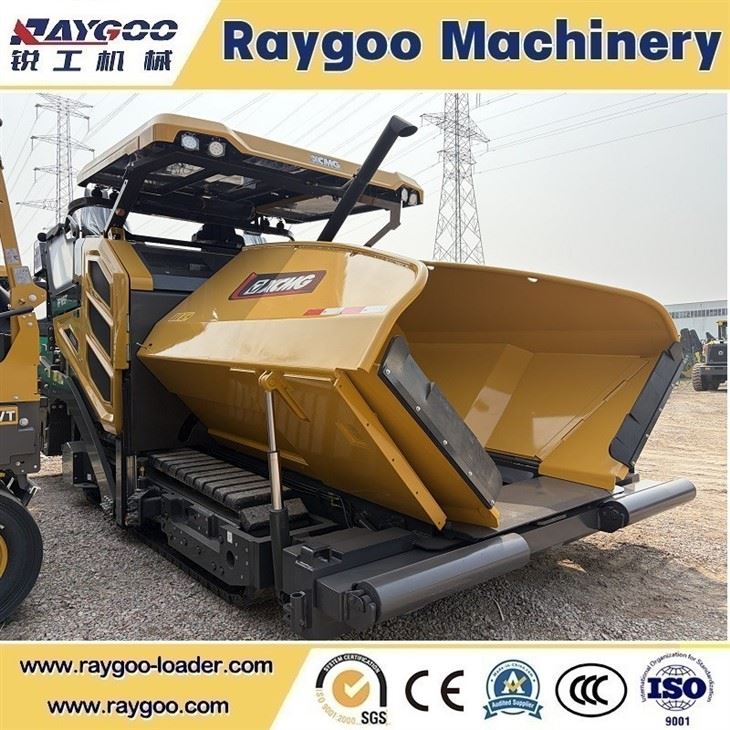

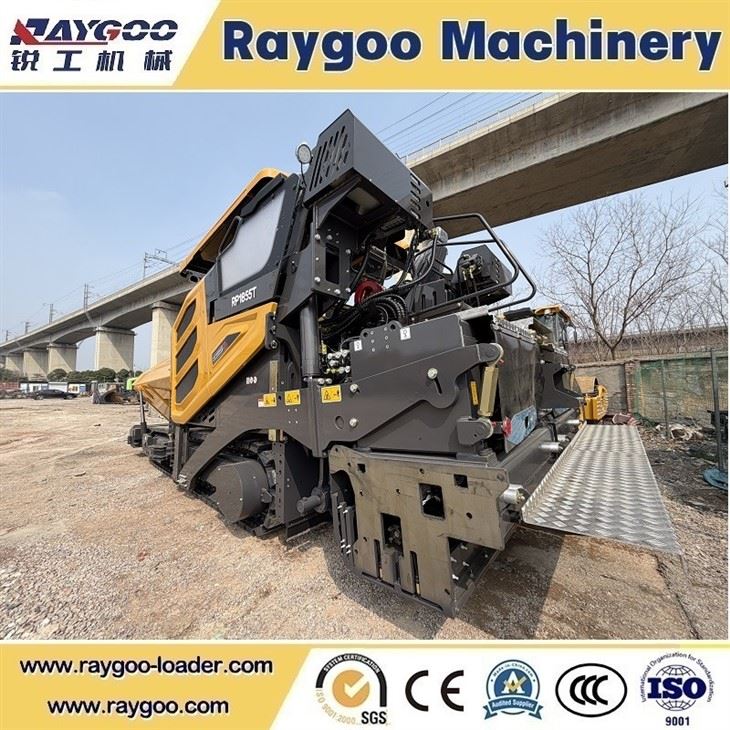

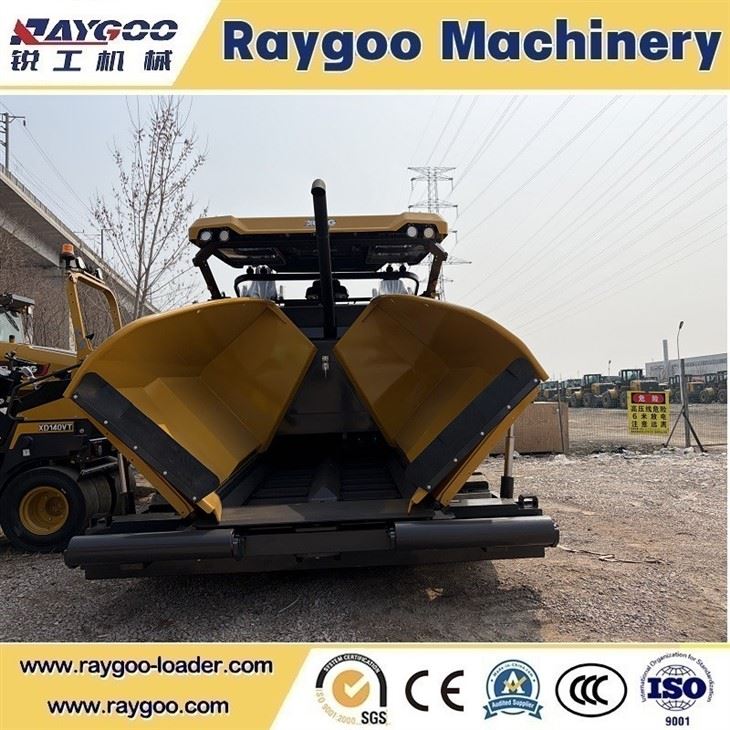

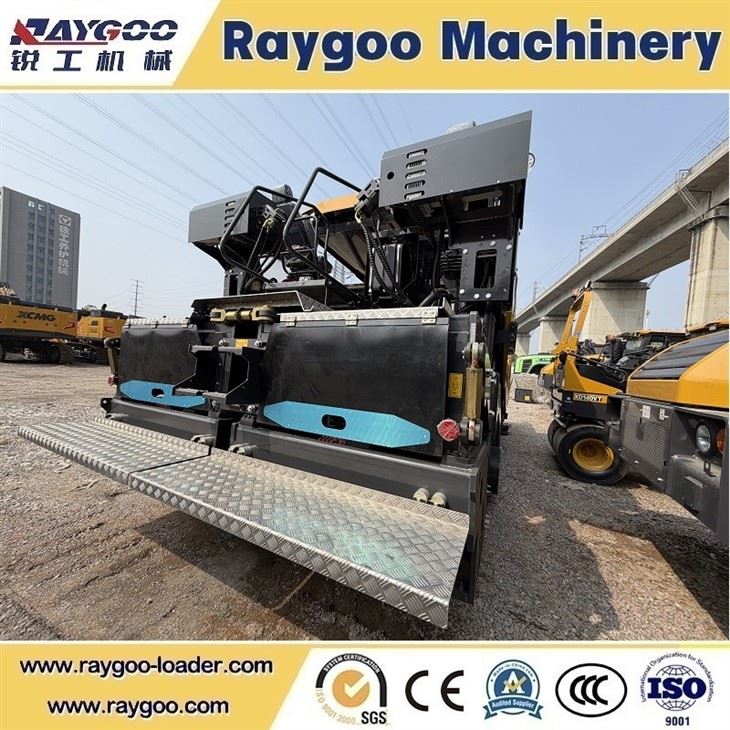

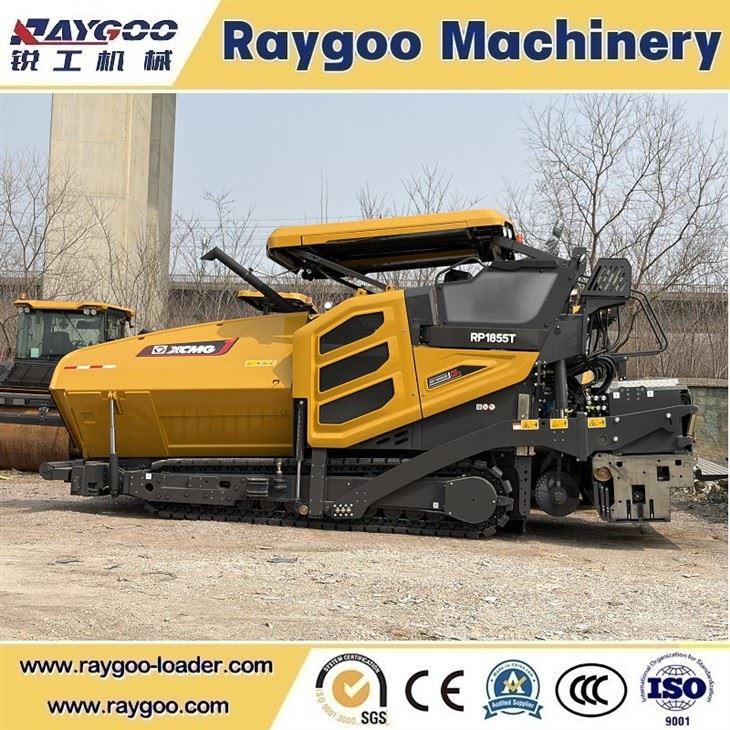

The RP1855T XCMG asphalt paver is a super-large, high-performance road construction machine designed for ultra-wide and high-thickness paving operations. Built to meet the demands of large-scale highway and infrastructure projects, the RP1855T delivers exceptional paving efficiency, stable material distribution, and intelligent control for consistent surface quality. With advanced screed technology, powerful engine performance, and precise leveling systems, this asphalt paver ensures smooth and durable pavement construction while reducing fuel consumption and operational costs.
RP1855T
Model
XCMG
Make
WEICHAI
Engine
xcmg asphalt paver Specifications
| No. | Item | Unit | Performance Parameter | Remark |
|---|---|---|---|---|
| 1 | Basic paving width | m | 3.0 | |
| 2 | Maximum paving width | m | 18.5 | |
| 3 | Maximum paving thickness | mm | 550 | |
| 4 | Working speed | m/min | 0-18 | |
| 5 | Traveling speed | km/h | 0-3.0 | |
| 6 | Theoretical productivity | t/h | 1500 | |
| 7 | Hopper capacity | t | 18 | |
| 8 | Gradeability | % | ≥20 | |
| 9 | Leveling accuracy (standard deviation) | mm | 0.8 | |
| 10 | Camber adjustment range | % | -1-+4 | |
| 11 | Engine model | -- | WP12G430 | Euro III |
| 12 | Engine power | kW | 316 | |
| 13 | Engine speed | r/min | 1900 | |
| 14 | Conveying speed | m/min | 0-41 | |
| 15 | Distribution speed | r/min | 0-110 | |
| 16 | Vibration speed | r/min | 0-1470 ±30 | |
| 17 | Vibration amplitude | mm | Main: 5, Auxiliary: 0, 3, 6, 9, 12 | |
| 18 | Vibration frequency | Hz | 0-40 ±2 | |
| 19 | Overall dimensions | mm | 7270 × 3175 × 4200 | |
| 20 | Machine weight | t | 31.5-48 | |
| 21 | Fuel tank capacity | L | 450 | |
| 22 | Hydraulic oil tank capacity | L | 400 | |
| 23 | Screed heating method | / | Electric heating | |
| 24 | Conveyor level control method | / | Automatic control with angle sensor | |
| 25 | Distributor level control method | / | Automatic control with ultrasonic sensor | |
| 26 | Vibration type | / | Eccentric vibration | |
| 27 | Automatic leveling control method | / | MOBA balance beam with digital leveling sensor |
Applications
Expressway and highway asphalt paving
Airport runway and taxiway construction
National and municipal road construction
Large infrastructure and industrial park roads
High-grade asphalt surface and base layer paving
Wide road and thick layer paving projects
Key Features for road roller double drum
1. Ultra-Wide Paving Capability
The RP1855T is designed for super-wide paving operations, making it ideal for large highway and airport projects, improving construction efficiency and reducing working time.
2. High Productivity Performance
With advanced engineering and powerful engine support, the machine delivers high paving output and stable performance, ensuring continuous and efficient operation in large-scale projects.
3. Advanced Screed System
The high-strength screed system provides excellent anti-deformation performance, ensuring uniform material distribution and smooth road surfaces.
Optional Configurations for 4 ton double drum road roller
Hydraulic telescopic screed extensions
Electric or gas screed heating system
High compaction screed system
Central lubrication system
Intelligent monitoring and diagnostic system
GPS and telematics system
...
Our company
FAQ
Q: Does the RP1855T provide stable paving quality?
A: Yes, it is designed with advanced screed and material distribution systems to ensure smooth and uniform pavement results.
Q: Does the RP1855T support automatic leveling?
A: Yes, it can be equipped with automatic leveling and sensor systems to improve paving accuracy and surface smoothness.
Q: What makes RP1855T different from smaller asphalt pavers?
A: The RP1855T offers wider paving capability, higher productivity, stronger structural design, and better performance for large-scale projects.
