Product Details

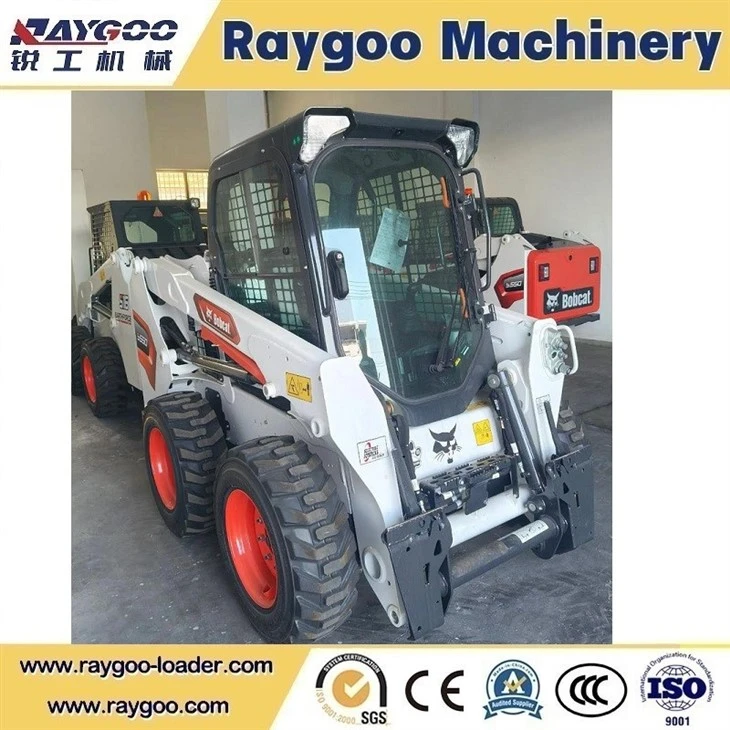

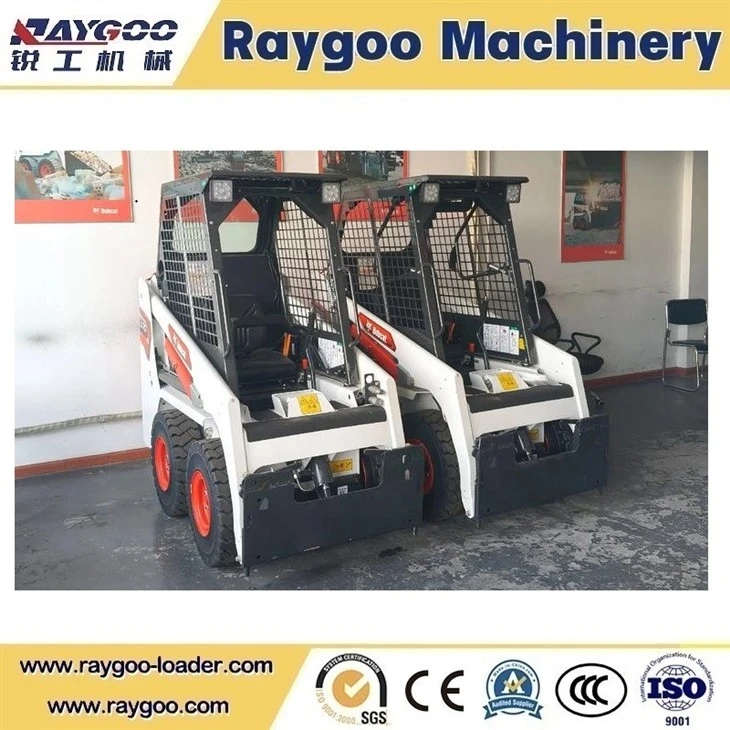

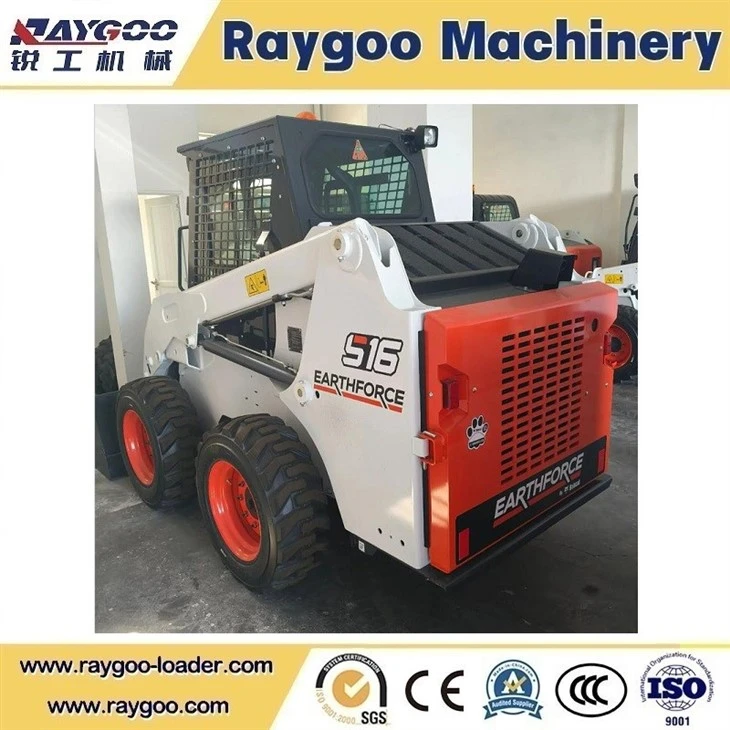

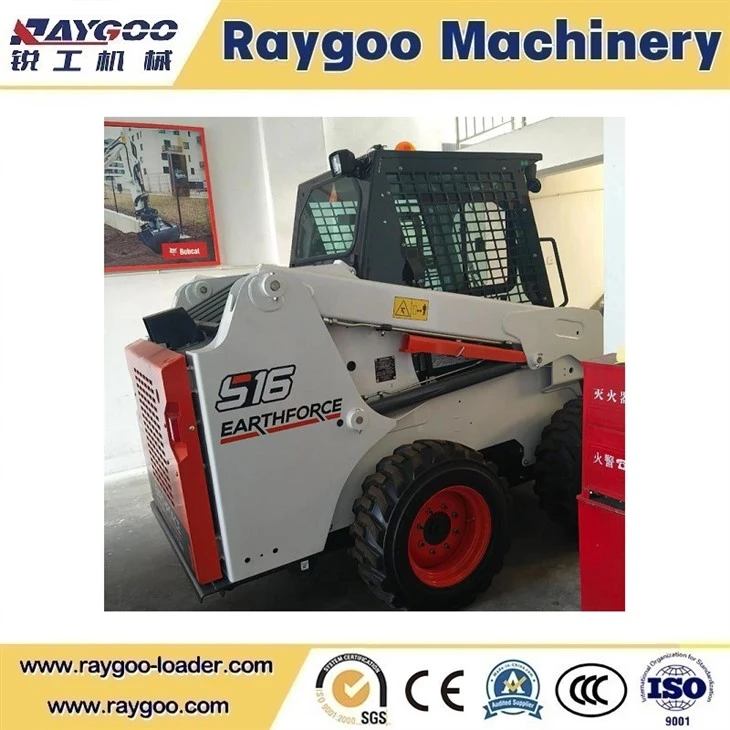

The Bobcat S16 skid steer loader is a compact and versatile machine designed for construction, landscaping, agriculture, material handling, and general maintenance applications. With its small footprint, excellent maneuverability, and reliable hydraulic performance, the S16 provides an efficient solution for customers requiring a compact skid steer loader for sale with strong productivity in limited working areas.
Powered by a reliable diesel engine and equipped with a vertical lift path design, the Bobcat S16 skid steer delivers stable lifting performance, improved reach at truck bed height, and efficient operation with various attachments including pallet forks, buckets, augers, grapples, and other hydraulic tools.
Whether used for loading materials, moving pallets, site preparation, or daily maintenance work, the Bobcat S16 compact skid steer loader offers a practical balance between operating cost, performance, and versatility.
S16
Model
2,573kg
Operating Weight
36.4kw
Rated power
bobcat s16 Specifications
| Specification | Details |
|---|---|
| Model | Bobcat S16 Skid Steer Loader |
| Machine Type | Compact Skid Steer Loader |
| Rated Operating Capacity (ISO 14397-1) | 687 kg |
| Tipping Load (ISO 14397-1) | 1,487 kg |
| Operating Weight | 2,573 kg |
| Shipping Weight | 2,245 kg |
| Loader Arm Type | Radial Lift Path |
| Engine Brand | Kubota |
| Engine Model | V2203-M-DI-E2B-BC-8 |
| Fuel Type | Diesel |
| Cooling System | Liquid Cooled |
| Number of Cylinders | 4 |
| Displacement | 2.2 L (2,197 cm³) |
| Rated Power | 36.4 kW (48.9 hp) |
| Rated Speed | 2,800 rpm |
| Maximum Torque | 149.8 Nm @ 1,700 rpm |
| Fuel Tank Capacity | 80.8 L |
| Hydraulic Pump Type | Gear Pump |
| Standard Hydraulic Flow | 57.2 L/min |
| Maximum System Pressure | 22.3 MPa (223 bar) |
| Auxiliary Hydraulic System | Standard Front Auxiliary Hydraulics |
| High Flow Hydraulic Option | Not Available |
| Drive Type | Hydrostatic Drive |
| Maximum Travel Speed | 10.5 km/h |
| Breakout Force (Lift) | Approx. 1,450 kgf |
| Lift Cylinder Force | Approx. 1,500 kgf |
| Overall Length with Bucket | 3,727 mm |
| Length without Attachment | 2,657 mm |
| Overall Width (Bucket) | 1,727 mm |
| Cab Height | 1,999 mm |
| Height to Hinge Pin | 2,918 mm |
| Wheelbase | 1,082 mm |
| Ground Clearance | 186 mm |
| Dump Angle | 44.5° |
| Maximum Reach at Full Height | 424 mm |
| Turning Radius | 1,633 mm |
| Bucket Width | 1,727 mm |
| Standard Tire Size | 10-16.5 |
| Steering Control | Two Hand Levers |
| Loader Lift/Tilt Control | Foot Pedals |
| Auxiliary Hydraulic Control | Right Hand Steering Lever |
miniskid steer Applications
Construction
Site preparation
Material loading
Earthmoving
Debris handling
Small excavation projects
Agriculture
Farm material transportation
Feed handling
Barn maintenance
Land improvement work
Landscaping
Soil moving
Tree planting preparation
Ground leveling
Maintenance operations
Warehouse & Industrial Applications
Pallet handling
Loading and unloading materials
Indoor maintenance
Key Features for bobcat skidder
Compact Size With High Maneuverability
The Bobcat S16 is designed for applications where working space is limited. Its compact dimensions allow operators to easily work in narrow construction sites, farms, warehouses, and landscaping projects.
Efficient Vertical Lift Design
The vertical lift path provides increased lifting height and forward reach, making the machine suitable for loading trucks, stacking materials, and handling palletized goods.
Multi-Purpose Attachment Compatibility
The Bobcat S16 supports a wide range of Bobcat-compatible attachments, including:
Pallet forks
General purpose buckets
Grapples
Augers
Sweepers
Hydraulic breakers
Landscaping attachments
Reliable Hydraulic System
The hydraulic system provides smooth attachment operation and consistent performance during continuous working conditions.
Why Choose enclosed skid steer
Compact Working Performance
The small operating size makes the S16 suitable for projects where larger machines cannot operate efficiently.
Attachment Versatility
One machine can perform multiple tasks by changing attachments, reducing equipment investment requirements.
Easy Transportation
The compact structure allows easier transportation between different job sites.
Proven Brand Reliability
Bobcat skid steer loaders are widely recognized for durability, operator-friendly design, and long service life in demanding applications.
...
Our company
FAQ
Q: What is the difference between Bobcat S16 and larger skid steers?
A: The S16 is designed for compact applications with easier maneuverability, while larger skid steers provide higher lifting capacity for heavy-duty operations.
Q: Can Bobcat S16 work in narrow spaces?
A: Yes. Its compact dimensions allow operation in confined areas where conventional loaders cannot access easily.
Q: Is Bobcat S16 easy to transport?
A: Yes. Its compact size allows convenient transportation between different job sites.
