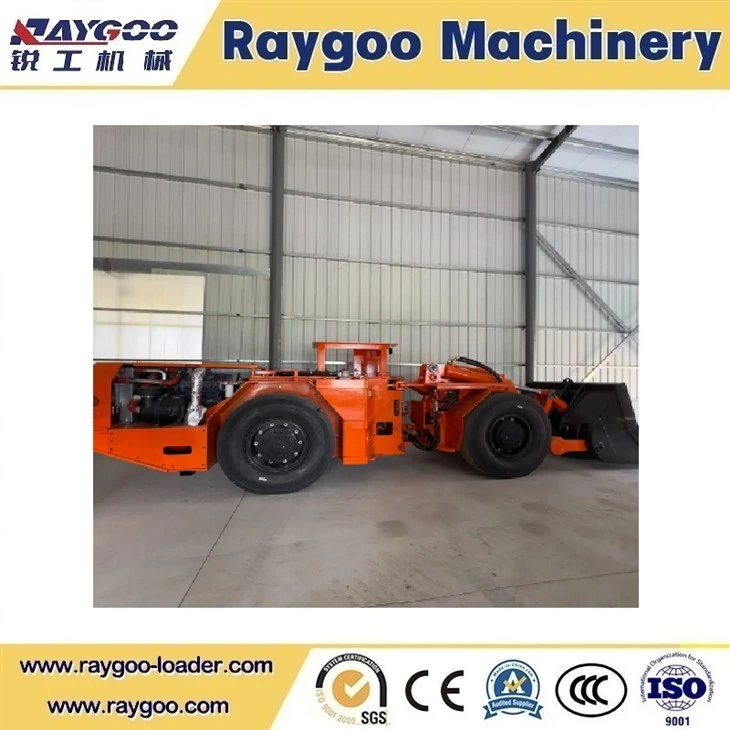

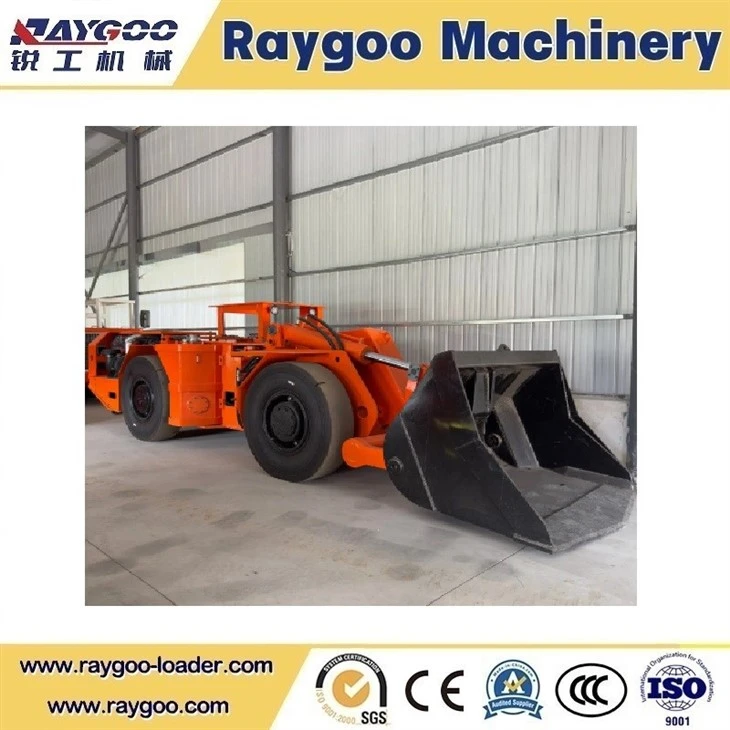

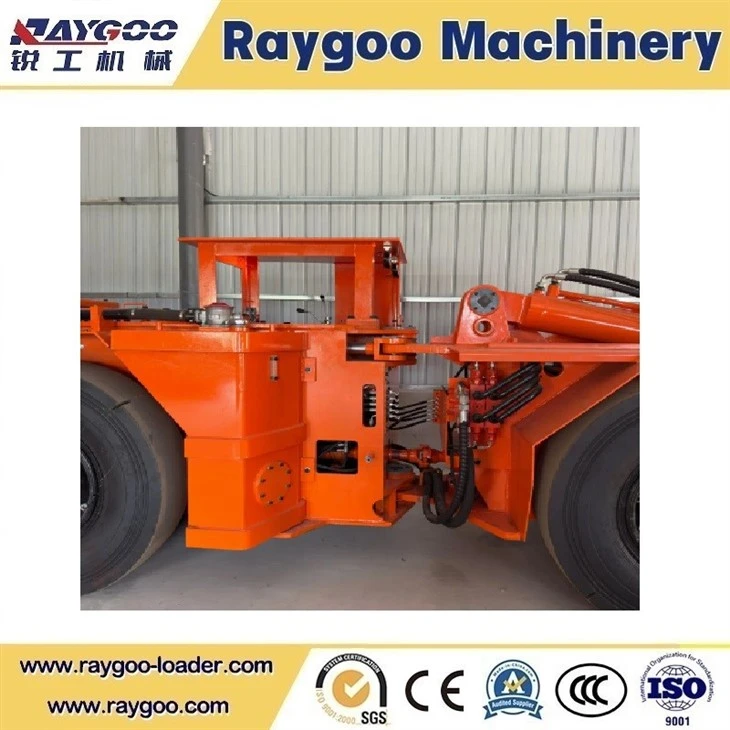

12Ton Articulated Loader

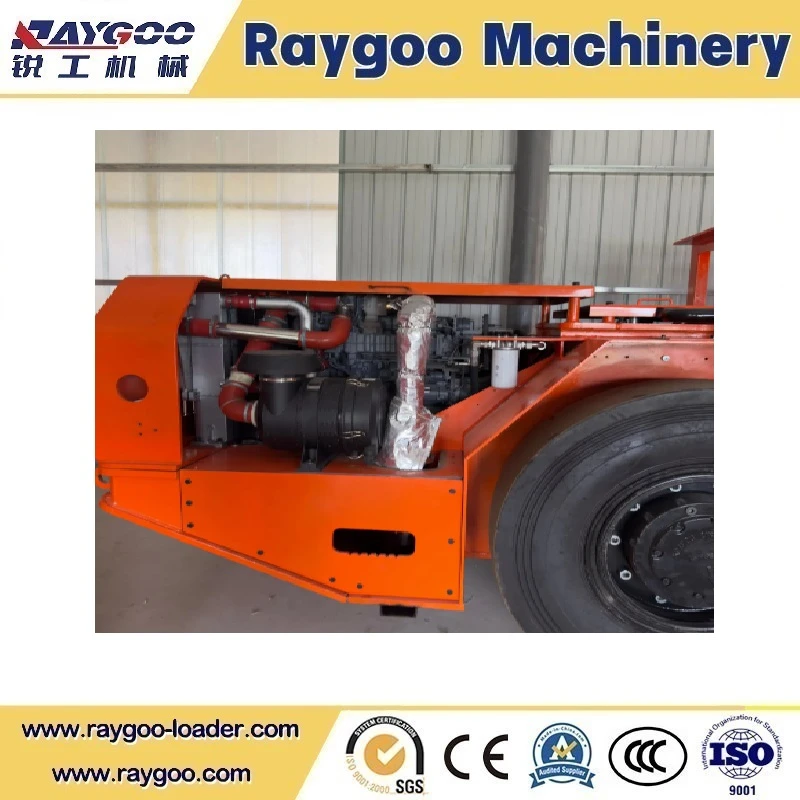

The WJ-2 diesel scooptram using the original German DEUTE engine as its output power, making it characterized by low emissions and low pollution. The transmission system using our independently developed hydraulic torque converter and power shift gearbox, which are easy to operate and run smoothly. The fully hydraulic dual-pipeline working brake system is equipped with multi-disc wet brakes and our independently developed NO-SPIN anti-slip diff erential, which is safe and reliable when operating in muddy tunnels with harsh environments and high water content. The main components of the hydraulic system come from well-known domestic and foreign manufacturers. The manual reversing valve controls the steering, and the pilot valve with an ergonomic handle controls the bucket arm lifting and bucket tipping. It has a beautiful appearance and high work effi ciency.

Send Inquiry

Description

Parameter		Value	Unit
Bucket Capacity (Heaped)		2	m3
Rated Load Capacity		4	t
Maximum Traction Force		100	kN
Maximum Breakout Force		80	kN
Maximum Unloading Height		1400±50	mm
Minimum Unloading Distance		1250±50	mm
Maximum Lift Height		3740±50	mm
Minimum Ground Clearance		250±10	mm
Angle Of Oscillation(Rear Axle)		±6~±8	°
Steering Angle(Left and Right)		36	°
Lifting Capacity		4	t
Maximum Payload		8	t
Minimum Turning Radius(Outside)		6100	mm
Minimum Turning Radius(Inside)		3000±200	mm
Maximum Gradeability		12	°
Attachment Operating Time		18	s
Wheelbase		2850	mm
Track Width		1550	mm
Gross Vehicle Weight (GVW)		12	t
Maximum Speed (Loaded)	1gear	4.8	km/h
	2gear	9.8	km/h
	3gear	18.7	km/h
Transportation State Dimensions	Length	7300±100	mm
	Width	1540±50	mm
	Height	2050±50	mm
Tire	Model	12.00-24
Motor	Power	92 kW/115KW

1,·The multi-functional mining standardized operation table retains the best mechanical quality, easy to use, safe mining, high efficiency and energy saving.
2,The combination of traditional and modern swing support structure, more durable, luxurious cockpit balance operator comfort and safety.

ower and Load: Rated power 160–220kW/2000–2200rpm, torque reserve ≥25%, maximum torque reached at 1400–1600rpm, meeting the frequent start-stop and heavy-load requirements of agricultural loading and unloading, short-distance transportation, and straw/gravel handling.

Fuel Economy: Direct injection + turbocharged intercooled optimized combustion, fuel consumption ≤215g/kW・h, combined with intelligent temperature-controlled fan and electronically controlled turbocharger, achieving overall fuel savings of 10%+, suitable for long-term agricultural operations.
