Product Details

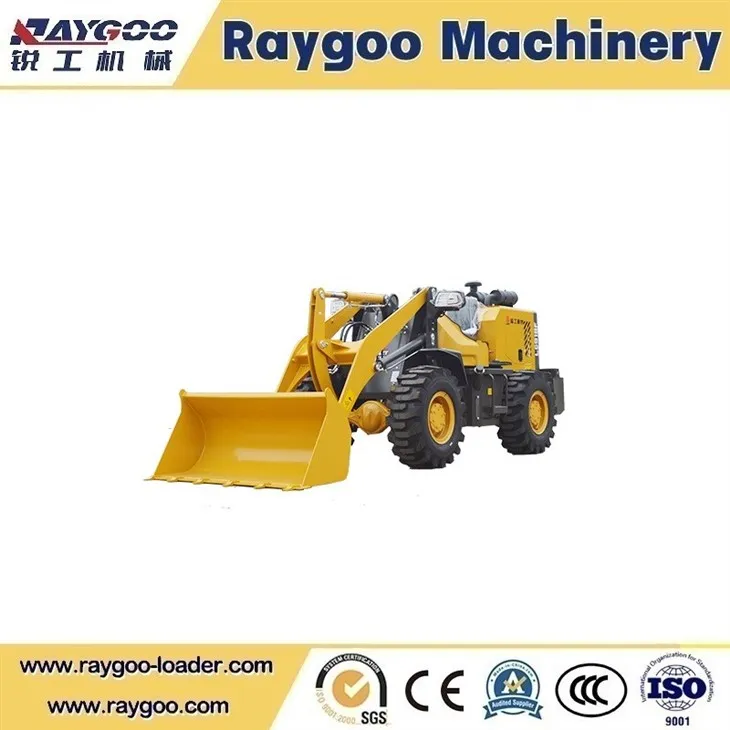

The 918 Zero Tail Swing Loader is a compact and highly maneuverable Zero Tail Swing (ZTS) model engineered for superior performance in confined spaces. Its ZTS design ensures the rear structure remains entirely within the chassis width during full articulation, enabling safe and efficient operation in tight urban construction sites, warehouses, and industrial environments without risk of rear-end collisions. Powered by a reliable engine and equipped with advanced hydraulics, it delivers robust loading and material handling capabilities while prioritizing operator comfort, safety, and productivity.
918
Model
600kg
Rated Capacity
0.8m3
Bucket capacity
Zero Tail Swing Loader Specifications
| Parameter | Value / Unit |
| Rated Load Capacity | 600 kg |
| Max. Dumping Height | 3130 mm |
| Dumping Distance | 1050 mm |
| Lifting Time | ≤5 s |
| Min. Turning Radius | 6000 mm |
| Overall Dimensions (LWH) | 4885 * 1530 * 1860 mm |
| Wheelbase | 2245 mm |
| Wheel Track | 1450 mm |
| Min. Ground Clearance | 230 mm |
| Low Gear Speed | 4 km/h |
| High Gear Speed | 26 km/h |
| Operating Weight | 2450 kg |
Key Features for Zero tail swing wheel loader
3130 mm max dumping height and 1050 mm dumping distance enable precise material placement into trucks, containers, or elevated bins, ideal for logistics, construction, and industrial tasks.
Ergonomic cabin with intuitive controls, enhanced visibility, and minimal vibration, reducing fatigue and boosting productivity during extended shifts.
2245 mm wheelbase and 1450 mm wheel track provide a balanced foundation for lifting, while 230 mm ground clearance ensures smooth traversal over uneven surfaces.
Optional Configurations for Zero Swing wheel loader
360° Camera System: Multi-angle visibility to monitor blind spots in congested areas.
LED Work Lights: High-intensity lighting for night operations or low-light conditions.
Proximity Sensors: Audible/visual alerts for detecting obstacles near the machine.
...
Our company
FAQ
Q: What does "Zero Tail Swing" (ZTS) actually mean for me on the job site?
A: It means that when you turn or articulate the machine, the rear end of the loader stays entirely within the width of its own wheels. This eliminates the worry of the tail end hitting walls, scaffolding, parked cars, or other obstacles in tight spaces like warehouses, alleys, or inside buildings, significantly enhancing safety and efficiency.
Q: What is the biggest advantage of the ZTS design?
A: Safety and efficiency in confined spaces. It allows operators to work close to walls and obstacles without constantly stopping to check clearance, speeding up work cycles and reducing the risk of costly accidents and damage.
Q: Can it handle rough terrain?
A: With 230 mm ground clearance and robust axles, it performs well on uneven surfaces, though it is primarily designed for confined spaces.
