Product Details
The LG855N is a classic 5-ton heavy-duty wheel loader independently developed by Lonking, a leading Chinese construction machinery brand. Optimized for mines, construction sites, material yards, port logistics and road engineering, this machine delivers powerful digging, high loading efficiency and outstanding durability under harsh working conditions. It balances reliable performance, low fuel consumption and easy maintenance, becoming a mainstream workhorse for bulk material handling worldwide.
lg850n
Model
16800kg
Operrating Weight
3m3
Bucket capacity
Lonking lg855n Specifications
| Item | Specification |
|---|---|
| Rated Payload | 5000 kg (5 Ton) |
| Standard Bucket Capacity | 3.0 m³ |
| Operating Weight | 16800 kg |

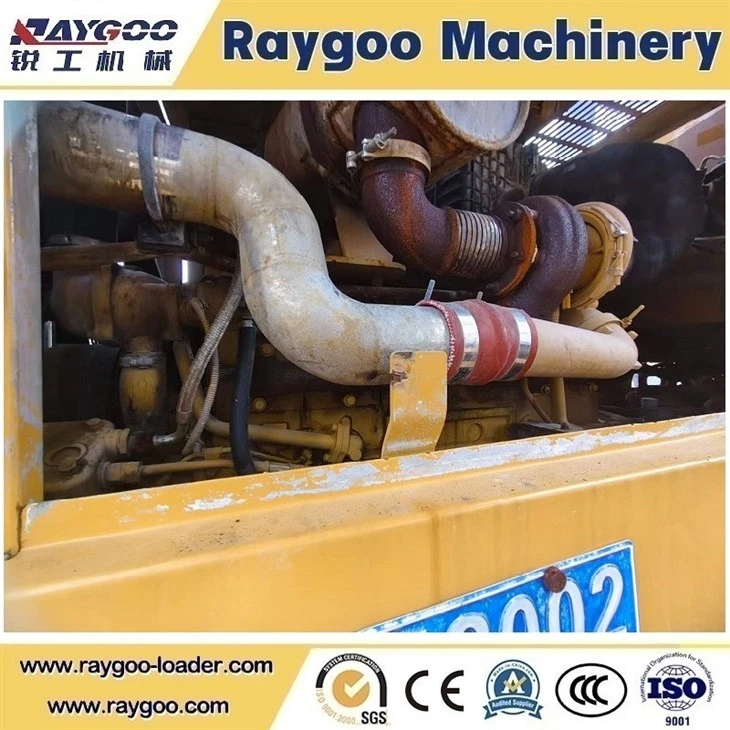

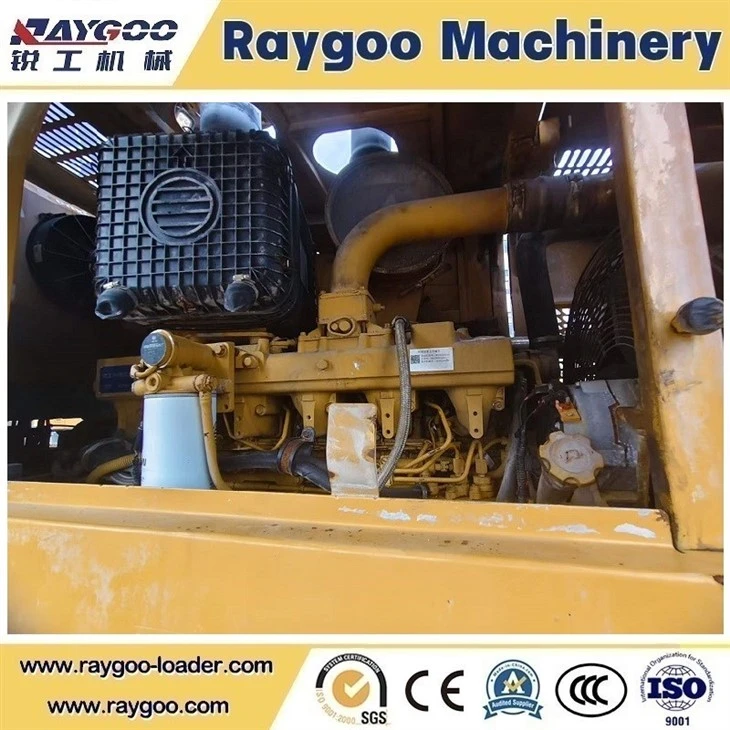

| Engine Model | Weichai WD10G220E21 water-cooled diesel engine |
| Rated Power | 162 kW / 220 HP @ 2200 rpm |
| Max. Breakout Force | 170 kN |
| Max. Traction Force | 155 kN |
| Max. Dumping Height | 3100 mm |
| Dumping Reach | 1150 mm |
| Bucket Raise Time | ≤ 6.0 s |
| Total Hydraulic Cycle Time | ≤ 11.0 s |
| Min. Turning Radius (over tire) | 6450 mm |
| Max. Gradeability | 30° |
| Tire Specification | 23.5-25 16PR L3 heavy-duty anti-slip tires |
| Overall Dimension (L×W×H) | 8180 × 2990 × 3460 mm |
| Wheelbase | 3200 mm |
| Transmission | Hydraulic power shift, 4 forward / 2 reverse gears |
| Brake System | Air-over-hydraulic 4-wheel disc brake |
| Steering | Articulated full hydraulic power steering |
Key Features
Strong Power & High Efficiency Equipped with reliable industrial diesel engine, delivering strong torque for heavy-load operations. Matched with mature hydraulic transmission system, it provides fast lifting and dumping speed, greatly improving daily working output.
Durable Heavy-Duty Structure Thickened high-strength steel frame, reinforced big bucket and robust loading arm to resist impact and abrasion. Large wide anti-skid tires offer excellent grip on muddy, rough and uneven construction ground as shown in the picture, adapting to harsh outdoor working conditions.
Main Application Scenarios
Earthmoving & land leveling on construction sites
Loading sand, aggregate, rock for trucks
Material handling at quarry, farm, warehouse and port
Road repairing, waste clearing and farmland renovation
...
Our company
FAQ
Q: What is this loader mainly used for?
A: It is designed for loading sand, gravel, soil, stone and other bulk materials, widely used in construction sites, quarries, farms and port yards.
Q: Can it work on muddy and rough African job sites?
A: Yes. It is equipped with wide heavy-duty tires and strong traction, perfectly adapting to uneven, soft and harsh outdoor working conditions.
Q: Do you provide after-sales support for overseas orders?
A: Yes. We supply full vulnerable spare parts package, English operation manuals and 12-month warranty for all export machines.
