Product Details

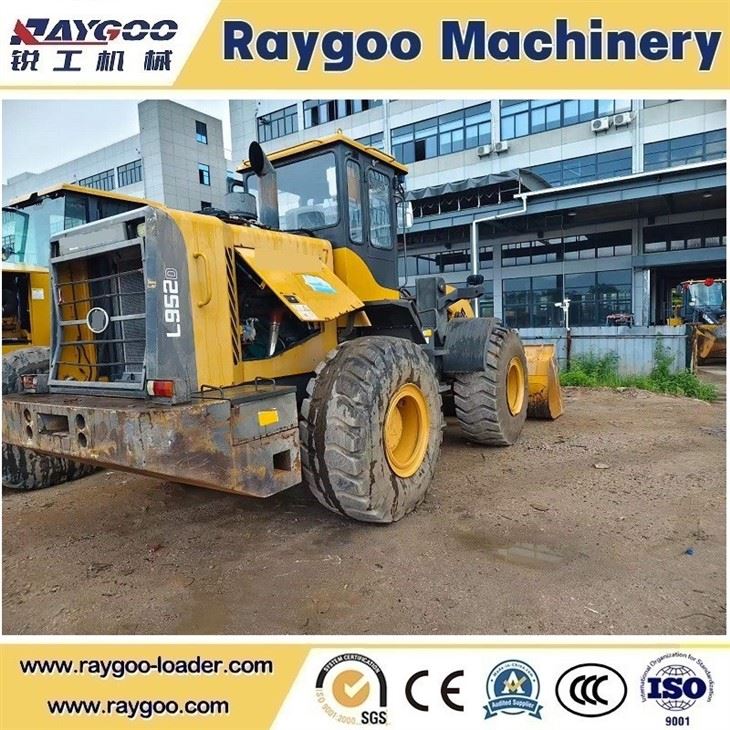

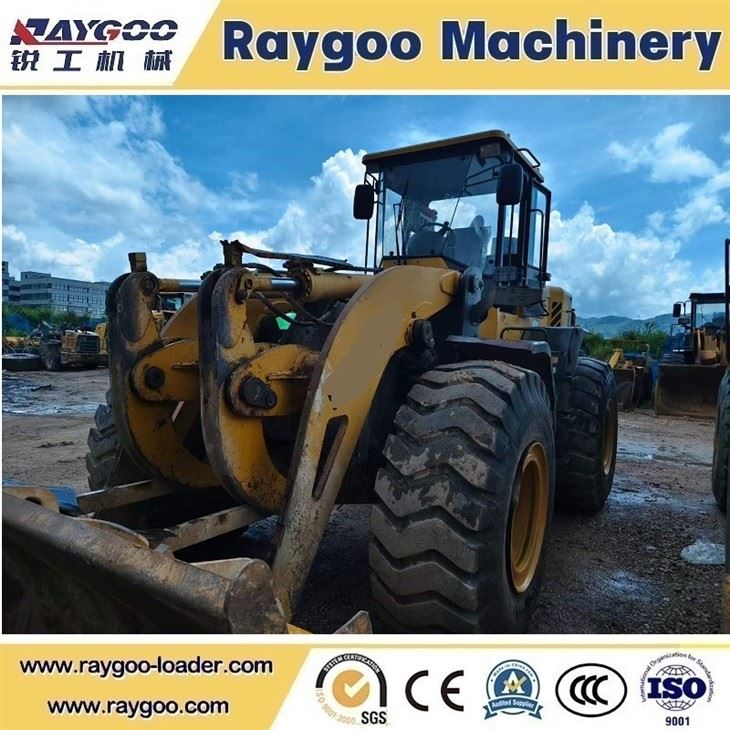

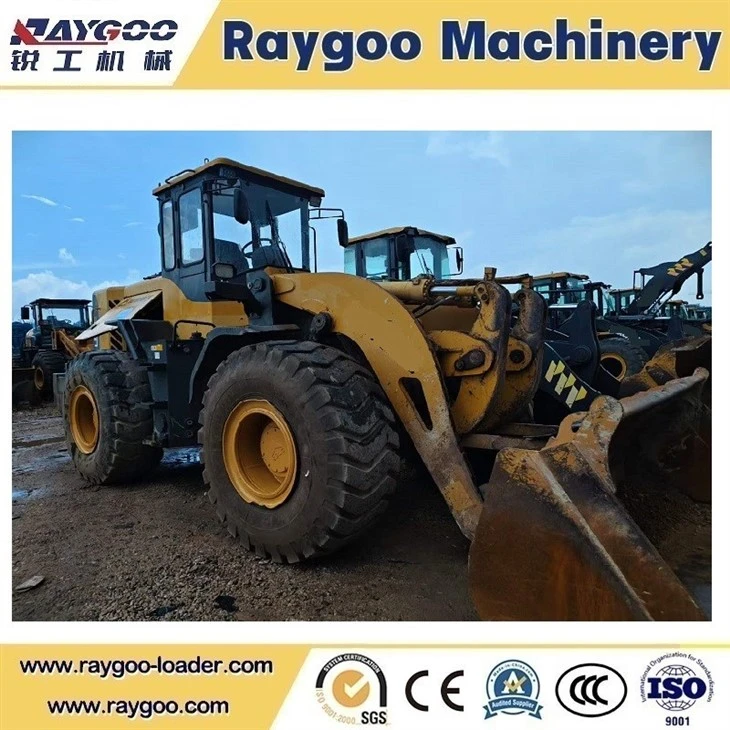

The L952 is a 5-ton medium-duty wheel loader independently developed by Construction Machinery . Designed with a short wheelbase layout, it features compact body size, flexible steering, powerful digging force and outstanding fuel efficiency. It perfectly fits medium & small construction sites, aggregate yards, concrete batching plants, municipal engineering, port cargo handling and farm bulk material transportation, delivering stable high productivity under heavy-duty continuous working conditions.
L952
Model
17,450kg
Operating Weight
3m3
Bucket capacity
front end loader Specifications
| Item | Parameter |
|---|---|
| Model | L952 Wheel Loader |
| Rated Load Capacity | 5000 kg |
| Operating Weight | 16600 kg |
| Standard Bucket Capacity | 2.8 m³ (Optional: 2.4–4.5 m³) |
| Engine Model | WP10G220E343 |
| Rated Power / Rotation Speed | 162 kW / 2000 rpm |
| Max. Breakout Force | ≥170 kN |
| Max. Traction Force | 155 kN |
| Travel Speed | 0–38 km/h (Forward & Reverse) |
| Tire Spec | Heavy-duty wide-base engineering tire |
Core Advantages & Key Features
2.1 Powerful & Energy-saving Power System

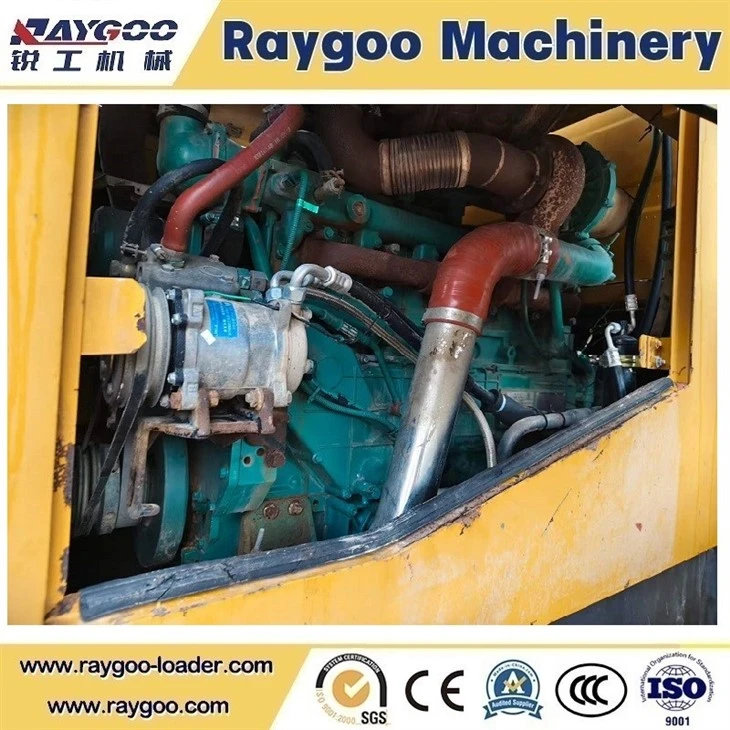

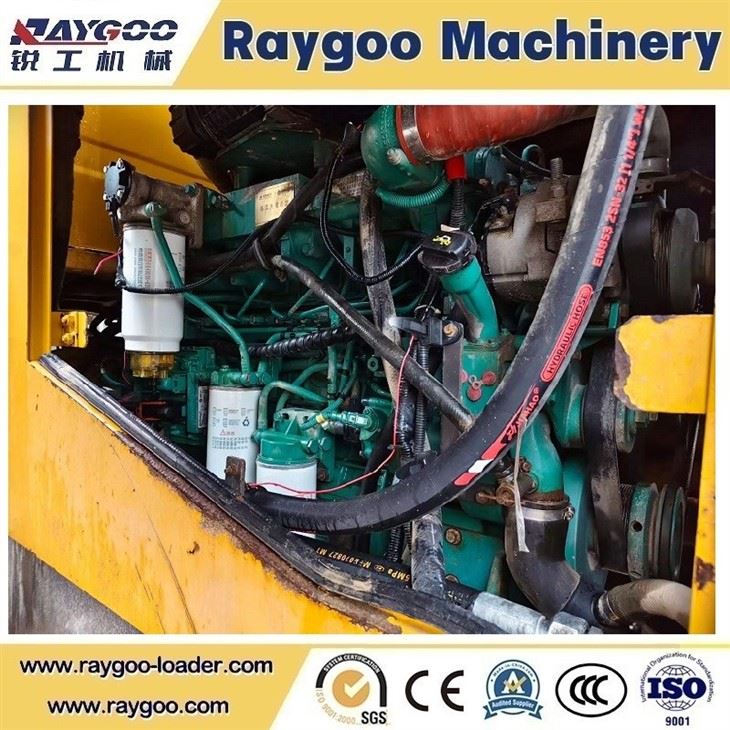

Equipped with WP10G220E343 electronically controlled common rail turbocharged diesel engine, rated power 162kW/2000rpm, peak torque up to 980N·m, strong low-speed torque for heavy shoveling work.
Optimized power matching reduces comprehensive fuel consumption by 10%–15% compared with traditional models, cutting long-term operation costs significantly.
Standard large-flow air intake & oversized heat dissipation radiator assembly, stable temperature control under high-temperature dusty working environments.
2.2 High-efficiency Working Performance
Rated load capacity: 5000kg; standard bucket volume 2.8m³, with optional buckets ranging from 2.4m³ to 4.5m³ for sand, stone, grain and other materials.
Maximum breakout force ≥170kN, maximum traction force 155kN, capable of penetrating dense stockpiles without slipping wheels.
Short wheelbase design realizes small turning radius, excellent maneuverability in narrow yards, workshops and urban road construction sites.
Responsive hydraulic system with fine micro-motion control, supporting precise stacking, loading and leveling operations.
Durable & Robust Structure
Integral thickened rear counterweight, reinforced front/rear frame welding structure, strong torsion resistance to adapt to bumpy, harsh working ground.
Heavy-duty drive axles with reinforced wheel-side reducers, wear-resistant thick block pattern tires, excellent load-bearing and anti-skid performance.
Openable side engine hood design for easy daily inspection of engine, hydraulic pipeline and filter elements, greatly lowering maintenance difficulty.
Wear-resistant bucket cutting edges and high-strength hinge pins, extending service life under frequent abrasive material shoveling.
Comfortable & Safe Operating Cabin
Fully sealed large panoramic cab with wide glass view, effectively isolating dust and reducing internal noise.
Ergonomic adjustable suspension seat, flexible single-hand control hydraulic joystick, lowering operator fatigue during long shifts.
Standard rear-view mirror, high-position tail light and warning reflector for all-round operation safety.
Humanized layout of control buttons, clear instrument panel displaying real-time speed, fuel consumption, engine fault codes and vehicle status.
...
Our company
FAQ
Q: What working sites is this L952 suitable for?
A: It fits construction yards, mixing plants, quarries, municipal works and port bulk cargo handling.
Q:Is the engine fuel-saving?
A: Yes. Matched optimized power system, fuel consumption is 10%-15% lower than old models.
Q: Is it easy to maintain the machine?
A: The side engine cover can be fully opened, convenient for daily inspection and parts replacement.
