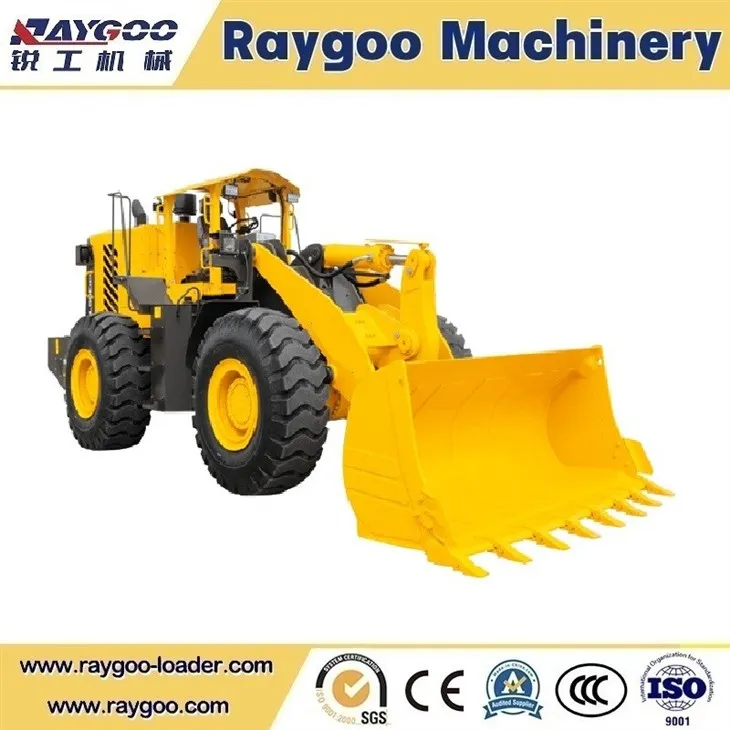

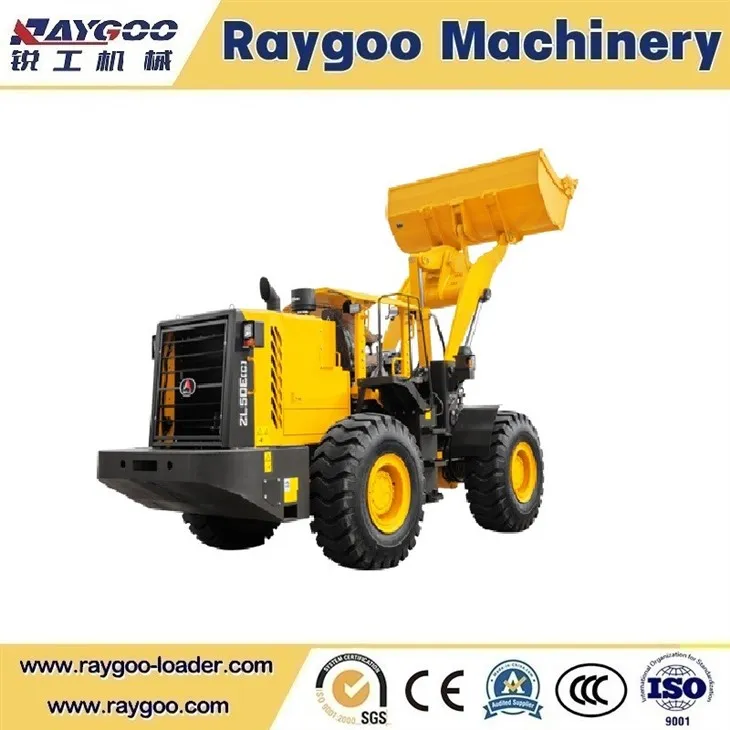

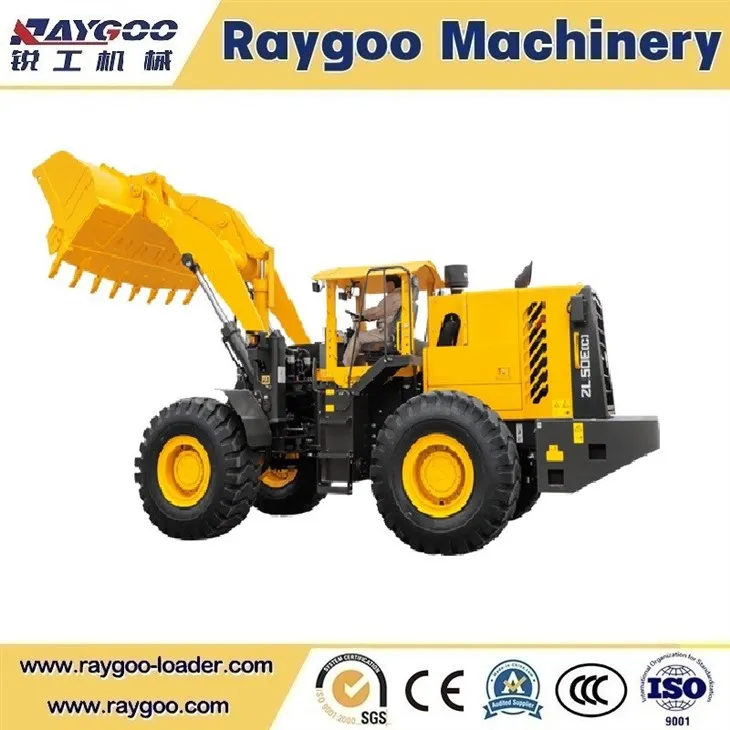

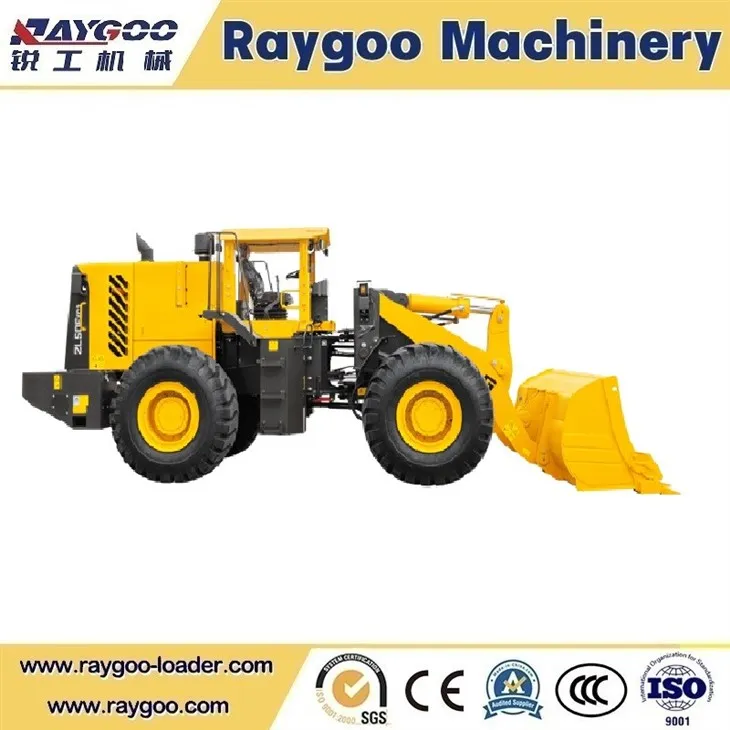

Product Introduction: SDLG ZL50E(C) Wheel Loader
The SDLG ZL50E(C) is a specialized wheel loader engineered for demanding underground mining and confined-space operations. Designed to navigate low-ceiling tunnels, narrow passages, and hazardous environments, it complies with stringent mine safety standards and holds the "KA" Mining Product Safety Certification . This model prioritizes operator safety, operational efficiency, and environmental adaptability, making it ideal for material handling in metal and non-metal mines without explosion risks
ZL50E(C)
Model
5000kg
Operating Weight
2.7m3
Bucket capacity
Key Specifications of Sdlg ZL50E(C) wheel loader
| Parameter | Value |
|---|---|
| Rated Load Capacity | 5,000 kg |
| Bucket Capacity | 2.7–4.0 m³ (standard: 2.8 m³) |
| Operating Weight | 16,800–18,000 kg |
| Max. Dump Height | 3,080–3,130 mm |
| Max. Travel Speed | 36 km/h (high) / 11.5 km/h (low) |
| Turning Radius | 6,520 mm |
| Dimensions (L×W×H) | 7,900×2,970×2,700–3,100 mm |
| Axle Distance | 3,250 mm |
| Gradeability | 30° |
Key Features & Innovations OF the SDLG ZL50E(C) Wheel Loader
Robust Power System
Engine: Equipped with a Weichai WP10G220E341 turbocharged diesel engine (162 kW/2200 rpm), featuring three-stage emission control (Euro III equivalent) and optimized for low-speed, high-torque performance in oxygen-limited environments
Cooling & Filtration: Enhanced with 93-grade dust filters to prevent particulate ingress in high-sediment conditions. Includes a fault-detection interface for real-time engine diagnosticsAdaptive Design for Confined Spaces
Low-Profile Structure: Ultra-compact height (adjustable down to 2,700–3,100 mm) enables operation in tunnels as low as 3 meters. The detachable canopy can be lowered or removed to maximize visibility
Mine-Specific Enhancements:
Wet Brake Axles: Ensure reliable stopping power in humid, slippery conditions.
Reinforced Frame: Heavy-duty platform with 18-ply tires for impact resistance and load stability
Optional Attachments
Sealed cabin with HVAC
Heavy-duty mining bucket
Tri-catalytic converters for stricter emissions
Oil-bath air filters
Competitive Advantages
Certified Safety: Only loader in its class with dual KA + ISO 3471 certifications for mine operations.
Lifecycle Cost Control: 20% lower maintenance costs vs. peers due to modular design and extended service intervals (e.g., 500-hour hydraulic checks)
Global Compliance: Meets emission norms for export to Southeast Asia, Africa, and South America
Our company
FAQ
Q:What are the primary applications of the SDLG ZL50E(C)?
A:
The ZL50E(C) is engineered for underground mining and confined-space operations, such as material handling in low-ceiling tunnels (as low as 3 meters) and narrow mine shafts. It holds the "KA" Mining Product Safety Certification and is suitable for non-explosive metal/non-metal mines
Q:What safety features protect operators in hazardous conditions?
A:
Reinforced canopy: Inverted V-shaped thickened roof deflects falling debris.
Exhaust treatment: Water-based filtration scrubs soot and water-soluble toxins from emissions, meeting enclosed-space air standards.
Optional sealed cabin: Includes HVAC, safety hammer, and explosion-proof configurations (with KA certification)
Q: What configurations optimize performance in heavy-duty mining?
A:
Powertrain: Weichai WP10G220E341 engine with triple power modes (P/S/E) for load-adaptive efficiency.
Transmission: Magnetic-suspension overrunning clutches for extended durability in high-heat environments.
Attachments: Heavy-duty mining bucket, oil-bath air filters, tri-catalytic converters, and wet-brake axles for slippery surfaces
