Product Details

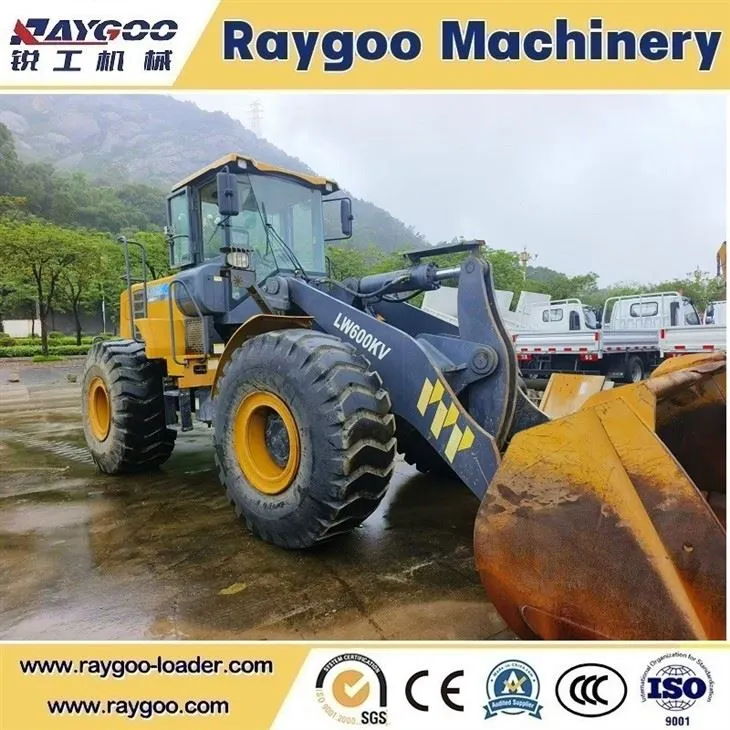

The XCMG LW600FV 6-Ton Wheel Loader (6Ton Wheel Loader LW600KV) is engineered to deliver exceptional performance, reliability, and productivity for the toughest mining, construction, and material handling applications. With its powerful 178kW (240HP) engine, 3m³ customizable bucket capacity, and 40km/h hydrostatic transmission, this loader ensures maximum efficiency and maneuverability on any job site. Whether you're handling rock, ore, scrap, or bulk materials, the LW600FV is built to exceed expectations with its robust structure, advanced hydraulics, and global after-sales suppor
LW600FV
Model
6000kg
Rated Capacity
3.5m3
Bucket capacity
Key Specifications
| Category | Specification | Unit |
| Basic Information | ||
| Model | XCMG LW600FV | - |
| Rated Load Capacity | 6,000 kg | kg |
| Operating Weight | 19,700 - 20,000 kg | kg |
| Bucket Capacity | 3.0 - 4.5 m³ (customizable) | m³ |
| Power System | ||

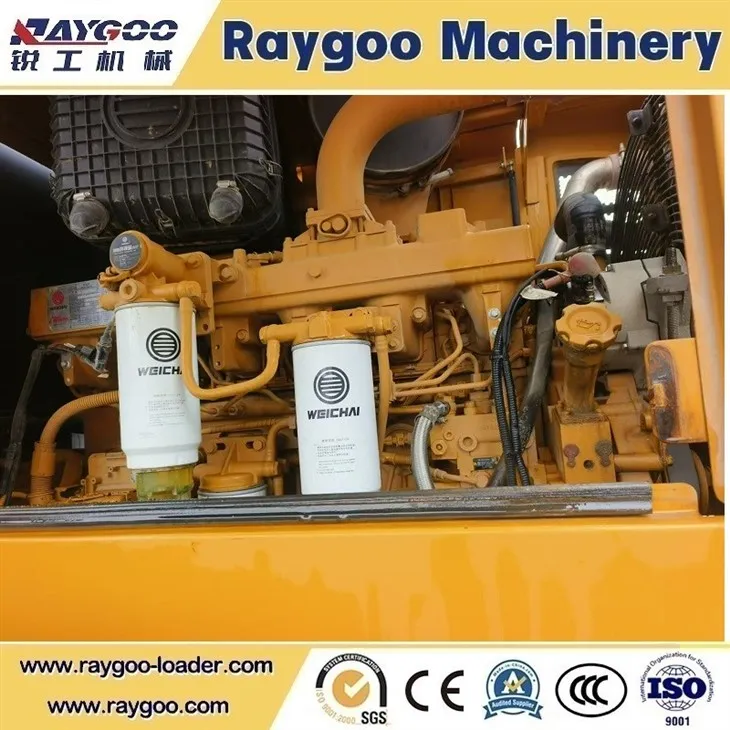

| Engine Model | WP10G240E341 / WP10NG260E30 | - |
| Engine Power | 178 kW (≈240 HP) | kW |
| Rated Speed | 2,200 rpm | rpm |
| Hydraulic System | ||
| Hydraulic System Type | Load-sensing + APD (Automatic Power Distribution) system | - |
| Max Traction Force | 174 - 180 kN | kN |
| Max Digging Force | 201 - 205 kN | kN |
| Operating Performance | ||
| Max Dump Height | 3,170 - 3,750 mm | mm |
| Max Dump Distance | 1,200 - 1,360 mm | mm |
| Boom Lifting Time | ≤5.9 seconds | seconds |
| Combined Cycle Time (Boom + Bucket) | ≤10.9 seconds | seconds |
| Travel Performance | ||
| Max Travel Speed | 40 km/h (hydrostatic transmission) | km/h |
| Wheelbase | 3,350 mm | mm |
| Track Gauge | 2,265 mm | mm |
| Min. Turning Radius | 6,005 mm | mm |
| Tires & Durability | ||
| Standard Tire Size | 23.5-25 | - |
| Axle Sleeve Lubrication | Industry-leading technology extending pin life by ≥100% | - |
| Emission Standard | China Stage III / EU Stage IIIA | - |
| Other Key Parameters | ||
| Fuel Tank Capacity | 300 L | L |
| Hydraulic Oil Capacity | 187 - 250 L | L |
| Cab Configuration | Integrated ultra-quiet cab with standard air conditioning, audio system, and ergonomic controls | - |
| After-Sales Service | Global warranty with on-site support from overseas engineers | - |
Key Features for Wheel Loader XCMG LW600FV
Reinforced Frame: High-strength skeleton frame optimized via finite element analysis, achieving a load-to-material ratio 25% higher than industry standards
Patented Bushing Lubrication: Industry-first design extends pin life by ≥100%, reducing maintenance costs.
Smart Controls: Joystick-mounted handrest, adjustable steering column, and programmable buttons for seamless operation.
Multi-Mode Operation: Supports light/medium/heavy load modes for optimal power use in varying conditions.
Optional Configurations for xCMG Payloader

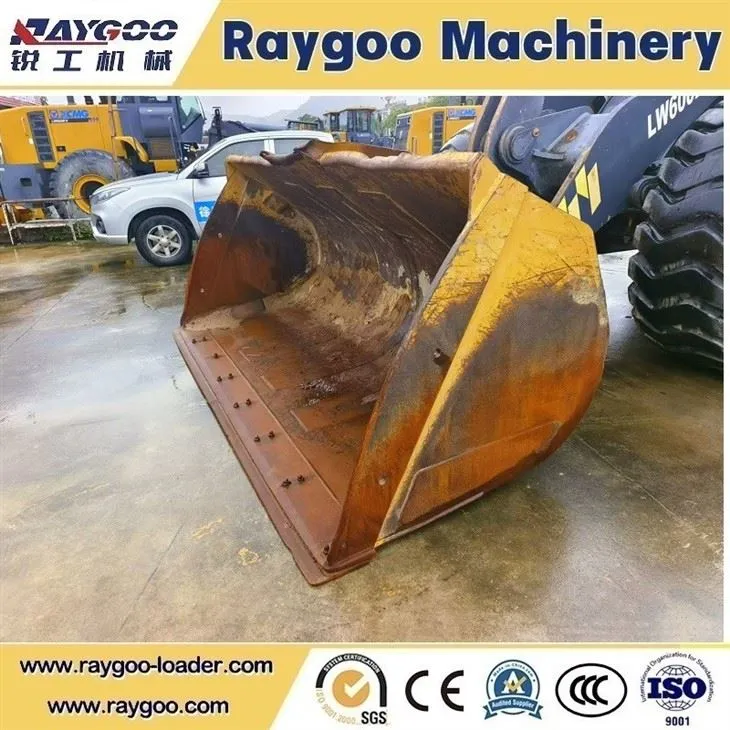

Standard bucket: Capacity 3.0m³, high-strength wear-resistant steel plate, suitable for general material handling.
Large bucket: Capacity 4.5m³, thickened bucket wall design, suitable for loose materials such as ores and coal.
Rock bucket: Thickened wear-resistant plate, reinforced bucket teeth, suitable for hard rock handling.
Waste grab bucket: Hydraulic operated grab bucket, 360° rotatable, suitable for waste metal and waste material recycling.
...
Our company
FAQ
Q: How convenient is daily maintenance??
A: Key maintenance points (engine oil, hydraulic oil, filters) are easily accessible. The recommended service interval is 500 hours (adjustable based on working conditions).
Q: Does it support autonomous operation or remote monitoring?
A: Some models offer GPS tracking and remote diagnostics for fleet management (requires additional configuration).
Q: Is the loader easy to operate? Are there any smart features?
A: Yes, it features electro-hydraulic controls for smooth and precise operation. Optional smart monitoring systems provide real-time data on oil temperature, pressure, and fault diagnostics.
