Product Details

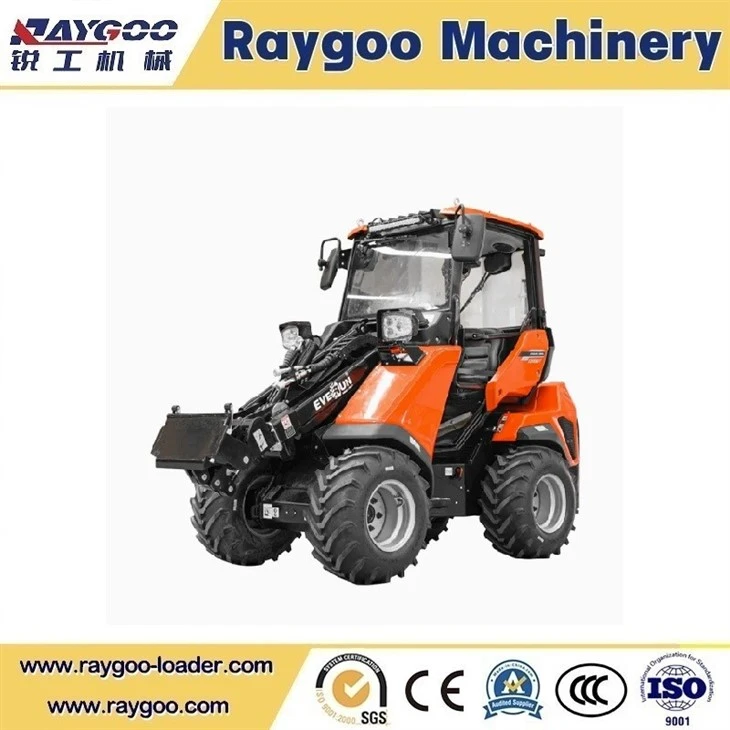

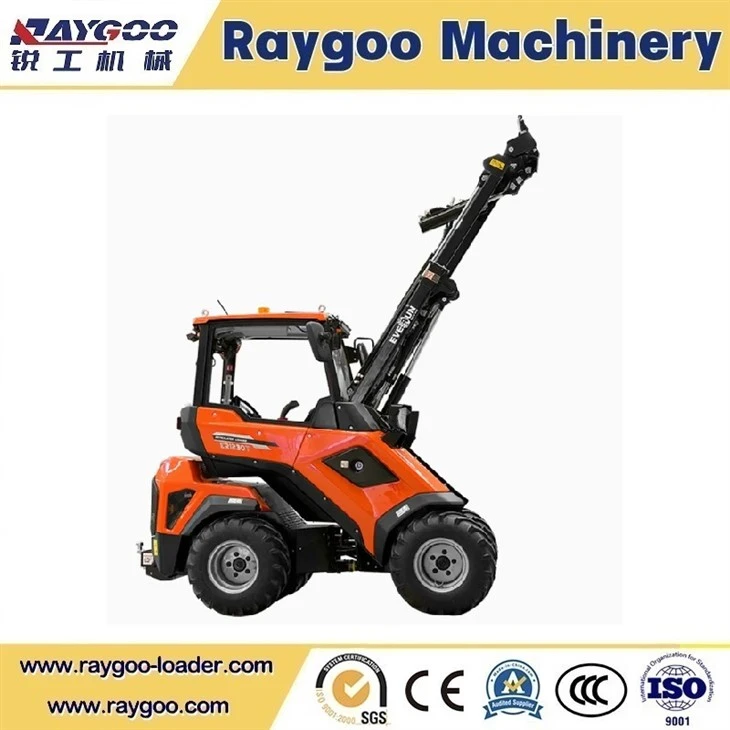

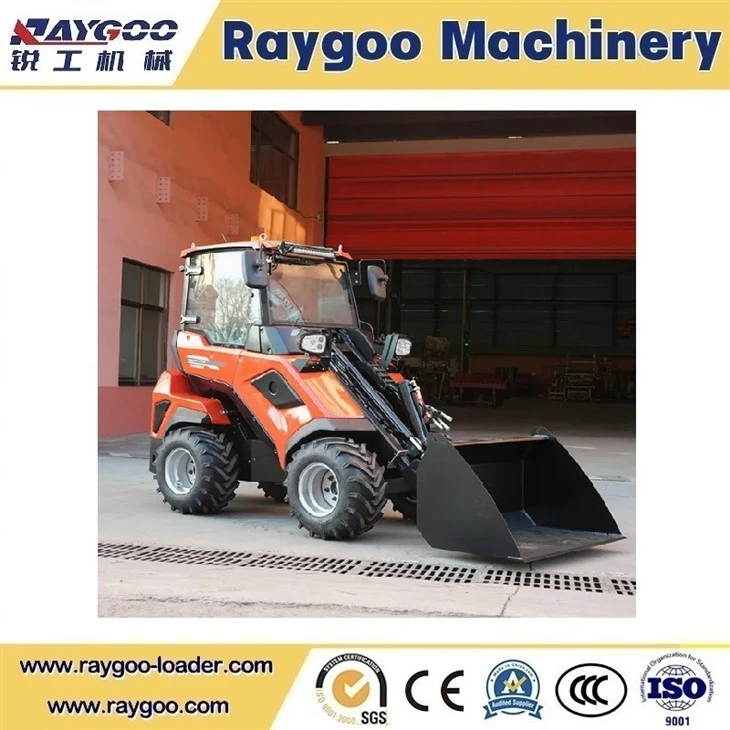

The 1.2ton Front-End Diesel Small Telescopic Loader is a compact telescopic wheel loader launched by our company. It integrates the functions of a standard loader and a telescopic handler, featuring a compact, agile design and a deluxe enclosed cab-making it purpose-built for confined working environments.
Certified to meet Euro V and US Tier 4 Final emission standards, this machine excels in space-constrained applications such as agriculture and landscaping, warehouse logistics, small-scale construction sites, municipal landscaping, livestock farming, and indoor factory operations. Currently a best-seller in overseas markets including Europe, North America, Australia, and South America, it balances portability, impressive lifting height, and versatile attachment compatibility, standing as a prime example of lightweight, multifunctional construction equipment.
ERW1230t
Model
1200kg
Rated Capacity
0.2m3
Bucket capacity
Key Specifications for ZL08F
|
Max. Loading Capcity (tipping load) |
1050kg |
|
Net Weight |
1660kg |
|
Overall Dimension (L×W×H) |
2630×1250×2000mm |
|
Max. Lifting Height of shovel pivot pin |
3060mm |
|
Wheelbase |
1312mm |
|
Min. Turning Radius(Outside) |
2050mm |
|
Engine |
KUBOTA D1105-E4B-CWL-1 |
|
Displacement |
1123ccm |
|
Engine Power |
18.2kw |
|
Type of Coolant |
Water Cooling |
|
Number of Cylinders |
3 |
|
Rated Speed |
3000r/min |
|
Transmission Type |
Hydrostatic |
|
Gear Shift |
Electric |
|
Max. Driving speed |
21km/h |
|
Drive Pump Rated Pressure |
320bar |
|
Working Pump Rated Flow |
50L/min |
|
Working Pump Rated Pressure |
18bar |
|
Steering Type |
Articulated Steering |
|
Max. Turning Angle |
50° |
|
Service Brake |
Hydrostatic brake |
|
Parking Brake |
Electric parking brake |
|
Tire Specifications |
26×12-12 |
Powertrain and Hydraulic System Performance
1. **Imported Low-Noise Power Unit**
Equipped with a Japanese Kubota D1105 diesel engine, it meets Euro V and US EPA Tier 4F emission standards. It delivers stable power output, low vibration and noise, and excellent fuel economy. It offers reliable cold-weather starting performance and complies with environmental regulations worldwide.
2. **Imported Hydrostatic Transmission**
Features a European-brand hydrostatic drive system with stepless speed regulation. Transitions between forward and reverse are smooth and shock-free. The four-wheel-drive system provides strong traction, preventing slippage on muddy, grassy, or uneven gravel surfaces, while ensuring balanced power distribution during travel.
3. **Dual-Pump Combined Hydraulic System**
Utilizes a dual-pump combined flow design, delivering a maximum working hydraulic flow of 50 L/min. Movements-such as telescopic boom lifting/retracting and bucket tilting-are synchronized and fluid. The system ensures rapid lifting and unloading speeds without stalling under heavy loads, significantly boosting loading and unloading efficiency.
Application Scenarios of Mini loader
- Agriculture: Farm forage handling, orchard harvesting, livestock/poultry manure removal, greenhouse material transport
- Landscaping: Sapling transplanting, earthwork and grading, tree pruning, road sweeping and snow removal
- Warehousing & Logistics: Warehouse cargo stacking, container loading/unloading, small truck loading/unloading
- Small-scale Construction: Courtyard renovation, indoor renovation debris removal, small infrastructure backfilling
- Municipal & Property Management: Residential area cleaning, road maintenance, sanitation waste transport
The machine features a compact body and an exceptionally tight turning radius, offering superior off-road capability with its four-wheel-drive system. Fully hydraulic controls ensure effortless operation, while the quick-change system allows for the rapid attachment of various tools such as buckets, log grapples, pallet forks, and hydraulic breakers. The enclosed cab provides excellent sound insulation and dust protection, ensuring operator comfort during extended shifts; the unit is easy to maintain and fuel-efficient. Standard CE certification facilitates export to markets in Europe, the Americas, Southeast Asia, and Africa.
Our company
FAQ
Q1: What is the rated load capacity and maximum lifting height of the ER1230T telescopic loader?
A: The model has a rated load capacity of 1,200 kg (1.2 tonnes), and its three-section telescopic boom offers a maximum lifting height of 3,060 mm. In contrast, standard fixed-boom loaders of the same tonnage typically offer a lifting height of only around 2 meters; the telescopic design allows for tasks such as high-level truck loading and stacking materials in greenhouses with ease.
Q2: What engine does the machine use, and is it suitable for export to European and American markets?
A: It is powered by a Japanese Kubota D1105 diesel engine (18.2 kW output) that meets European Euro V and US EPA Tier 4 Final emission standards. It fully complies with environmental regulations for import and export in Europe and the Americas. The machine is currently exported in large numbers to markets including Europe, North America, and Australia, facing no emission-related restrictions during customs clearance.
Q3: Can this machine operate flexibly in confined spaces, such as greenhouses or indoor warehouses?
A: It is perfectly suited for confined spaces. The machine features a compact articulated steering design, resulting in a very tight turning radius. Its compact overall dimensions, combined with four-wheel drive and deep-tread off-road tires, allow it to easily maneuver and turn around in greenhouse aisles, indoor warehouses, and narrow courtyard paths-enabling operation in areas inaccessible to large loaders.
