product detail

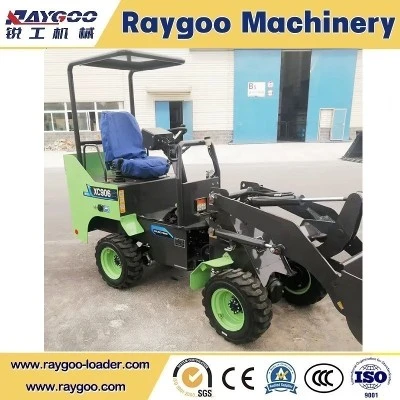

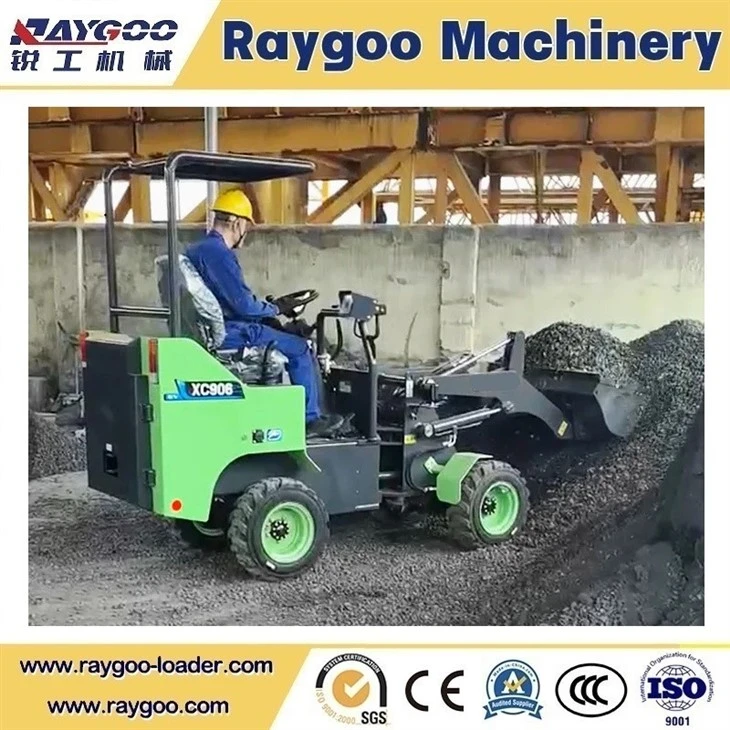

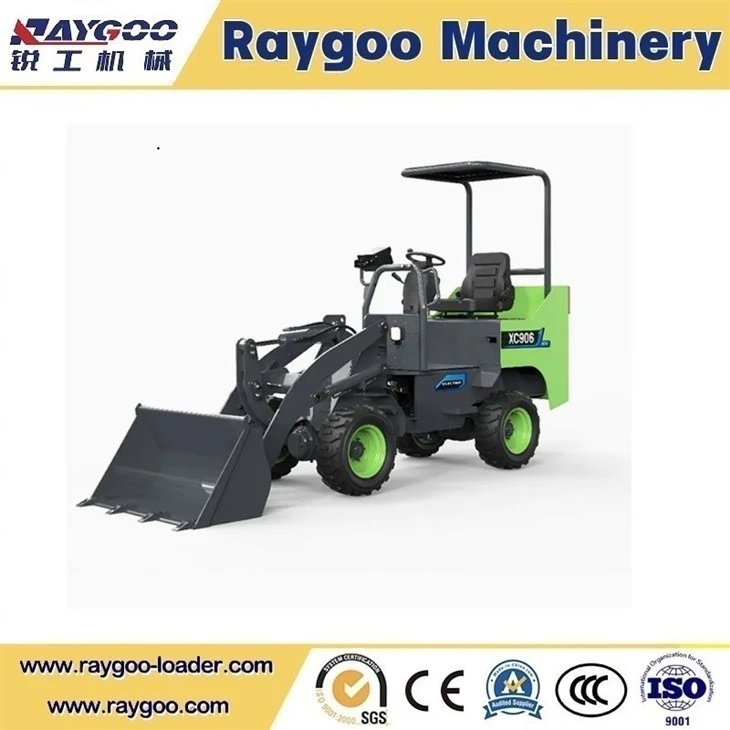

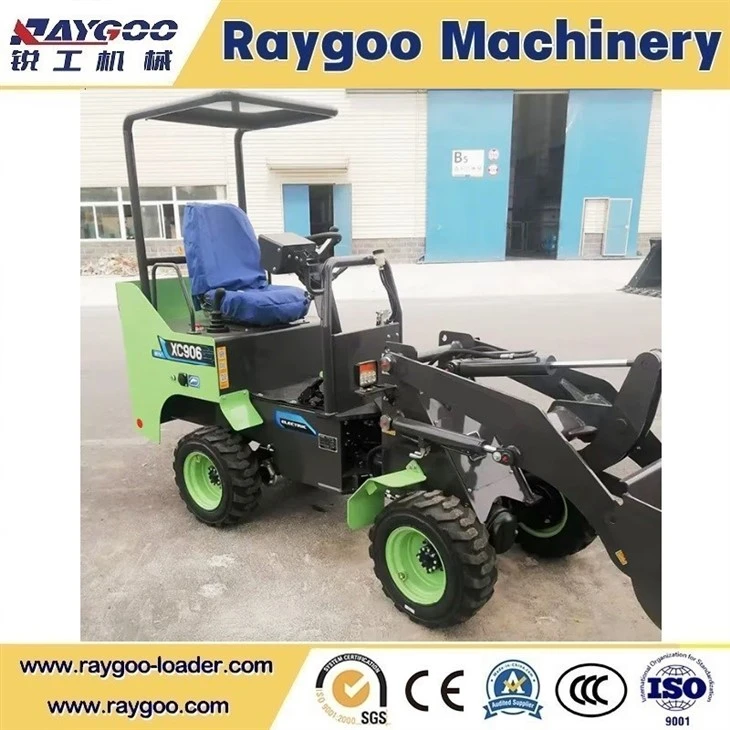

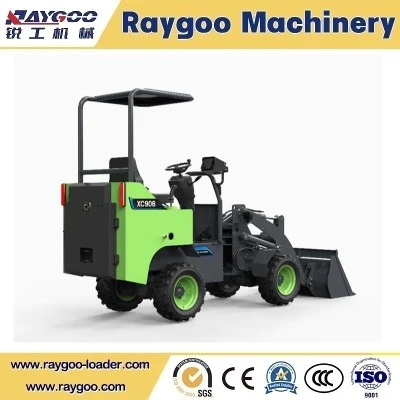

The XC906EV Electric Wheel Loader is a compact and efficient electric loader designed for construction, logistics, municipal projects, landscaping and material handling. Its battery-powered system provides low-noise and flexible operation, making it suitable for urban and noise-sensitive working environments.
With a 500 kg rated load capacity and 0.2 m³ bucket capacity, the XC906EV offers practical loading and material-handling performance in confined spaces. Its compact design, flexible steering and easy maintenance make it a practical solution for various light-duty applications.
Key Specifications
| Item | Parameter | |
| Rated bucket capacity m3 | 0.2 | |
| Rated Load kg | 500 | |
| Operating Mass kg | 1400 | |
| Dumping height mm | 1750 | |
| Dumping reach mm | 510 | |
| Wheelbase mm | 1560 | |
| Tread mm | 880 | |
| Overall length mm | 3720 | |
| Overall height mm | 2230 | |
| Bucket width mm | 1100 | |
| Max. Breakout Force kN | 18 | |
| Max. Traction Force kN | 12 | |
| Outer Tire Center (turning radius) mm | 2950 | |
| Boom Lifting Time s | ≤4.5 | |
| Fastest Three Cycle Time s | ≤10.5 | |
| Battery Brand | Electrical Energy | 8/12kwh |
| Hydraulic Motor | Power | 3kW |
| Traveling Motor | Power | 3kW*2 |
| Tire Type | 23X8.5-12 | |
| Travel Speed km/h | Forward | 0~13 |
| Reverse | 0~13 | |
Key Features
Electric Power System
The XC906EV uses an electric drive system for quiet and efficient operation, making it suitable for urban construction, indoor applications and noise-sensitive working environments.
Compact & Flexible Design
Its compact dimensions and flexible steering make the XC906EV easy to operate in narrow spaces, small construction sites and confined working areas.
Easy Operation & Maintenance
The XC906EV features a straightforward operating system and accessible service areas, helping operators perform routine inspections and maintenance efficiently.
Safety design
Stable Machine Structure
Compact chassis and optimized weight distribution help provide stable operation during loading and material handling.
Reliable Braking System
The braking system supports controlled stopping and safer operation on working sites.
Operator Visibility
The compact design and open operator area provide a clear view of the bucket and surrounding work area.
Low-Noise Electric Operation
Reduced operating noise helps create a more comfortable working environment, particularly in urban and indoor areas.
Hydraulic Safety
The hydraulic working system is designed for controlled lifting, lowering, and bucket operations.
Easy Access & Maintenance
Accessible service points make routine inspection and maintenance more convenient, helping keep the machine in proper working condition.
Our company
FAQ
Q1: What is the rated load capacity of the XCMG XC906EV?
A: The XC906EV has a rated load capacity of 500 kg, making it suitable for light-duty loading and material handling.
Q2: What is the bucket capacity of the XC906EV?
A: The standard bucket capacity is 0.2 m³, suitable for handling materials such as soil, sand, gravel and other bulk materials.
Q3: Where can the XC906EV electric wheel loader be used?
A: It is suitable for construction sites, landscaping, municipal projects, warehouses, logistics and other material-handling applications, especially where low-noise operation is required.
