Product Details

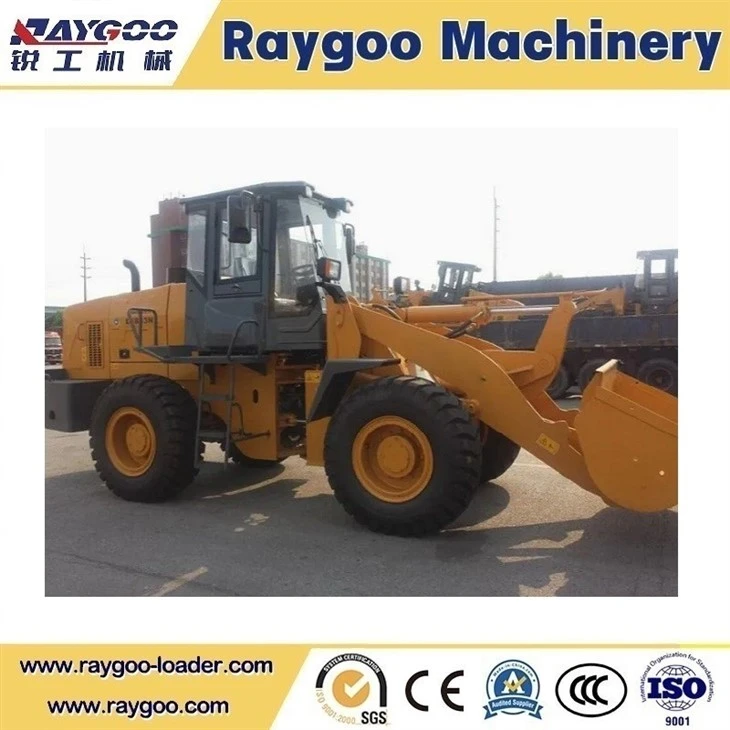

The Lonking 3 Ton Cdm833 Wheel Loader designed for heavy-duty construction, mining, and material handling. With a robust Weichai engine, high breakout force, and a durable drivetrain, this CDM833 wheel loader delivers exceptional performance at a competitive factory price.
Cdm833
Model
10,300kg
Operating Weight
1.7-2.5m3
Bucket capacity
Lonking 3 Ton Cdm833 Wheel Loader Specifications
| Parameter | Specification |
|---|---|
| Model | Lonking CDM833 |
| Rated Payload | 3000 kg (3 ton) |
| Operating Weight | 10300 kg |
| Bucket Capacity | 1.7 – 2.5 m³ (choose according to material density) |
| Engine Model | Weichai WP6G125E332 (Turbocharged, intercooled) |
| Rated Power | 92 kW @ 2200 rpm |
| Max Torque | 500 N·m @ 1600-1800 rpm |
| Breakout Force | 105 kN |
| Traction Force | 97 kN |
| Travel Speed (Forward) | 0 – 38 km/h (4 forward gears, 2 reverse) |
| Dump Clearance (at max lift) | 2904 mm |
| Dump Reach | 1050 mm |
| Wheelbase | 2900 mm |
| Overall Dimensions (L×W×H) | 7520 × 2500 × 3180 mm |
| Tire Size | 17.5-25 (16PR) |
| Fuel Tank Capacity | 130 L |
| Hydraulic Tank Capacity | 110 L |
| Hydraulic System Pressure | 16 MPa |
| Turning Radius (outside) | 5550 mm |
| Articulation Angle | 36° ± 1° |
| Gradeability | 28° |
Applications for Front End Loader Cdm833
Engine – Weichai WP6
It's a workhorse. 92kW gives you enough grunt to fill the bucket in one pass. Fuel burn is around 12-15L per hour in normal digging – not great, not terrible, but for a wheel loader total cost of ownership, it's competitive.
Breakout force – 105kN
That means you can pry into compacted gravel or hardpack without stalling. Better than some 3.5 ton machines.
Hydraulics – pilot operated
Smooth. Your operator won't hate you at the end of the shift.
Easy maintenance
The hood tilts up. Grease points are grouped. Side doors swing wide. You don't need special tools for daily checks.
Cab
Standard ROPS/FOPS. Air con and suspension seat are optional but worth it if your guys work long hours.
Key Features
Construction sites – loading sand, gravel, backfill
Mines and quarries – stockpile work, feeding crushers
Concrete batching plants – feeding aggregate hoppers
Warehouses & factories – moving scrap, pallets, bulk bags
Farms – grain, manure, silage (with a light material bucket)
Optional Configurations for Front End Loader Cdm833
..
Our company
FAQ
Q: How does CDM833 compare to XCMG LW300F or Liugong 833N?
A: Lonking has higher breakout force (105kN vs 95kN on Liugong) and a bigger fuel tank (130L vs 110L). Price is usually 5-8% lower than XCMG. We can send you a side-by-side comparison sheet.
Q: Fuel consumption per hour – real numbers?
A: About 12-15L in normal loading. More if you're pushing into a pile all day. Less if you're just moving loose material.
Q: Payment terms?
A: T/T, L/C at sight. Small orders can use PayPal or Western Union.
