Product Details

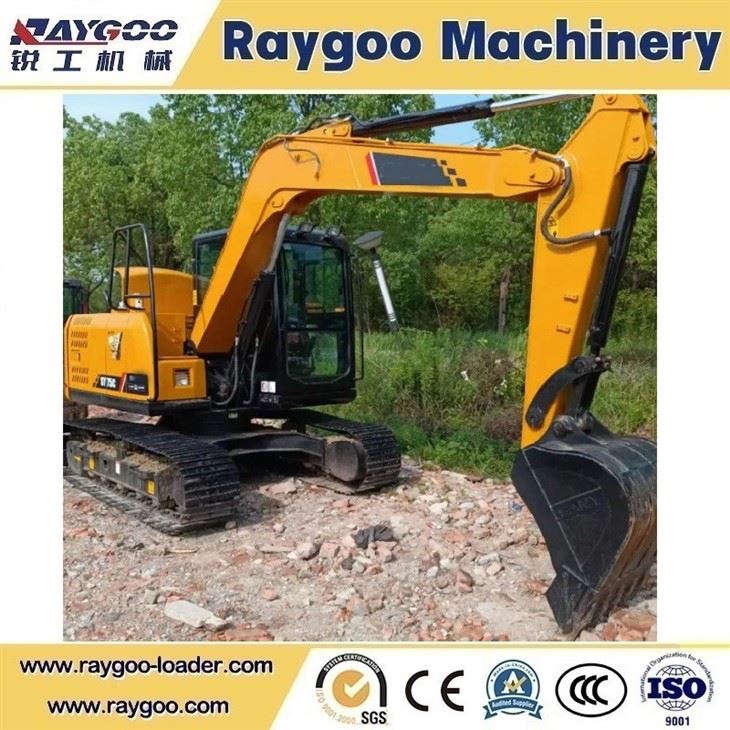

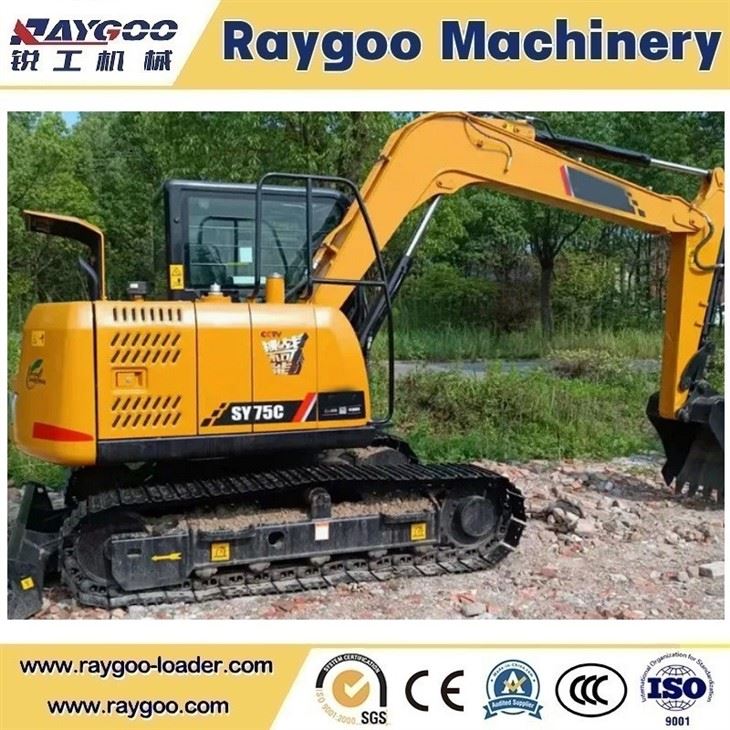

The SY75C excavator is engineered as a 7.5-ton versatile compact digging platform designed for high-density excavation, urban utility installation, and quarry auxiliary operations. Built around a stress-tested X-frame chassis and a reinforced boom assembly, this machine delivers a fast total cycle time under 9.0 seconds during continuous trenching loops. Powered by a fuel-efficient 43 kW powertrain coupled with a load-sensing hydraulic main pump, the system dynamically matches pressure and flow based on workload requirements, reducing overall fuel consumption during partial-load operations.
SY5C
Model
7,280kg
Operating Weight
0.28m3
Bucket capacity
Specifications
|
Engine model |
Is 4JG1 |
|
Rated power |
40/2100 kW/rpm |
|
Emission standard |
Tier 2 |
|
Operating weight |
7280kg |
|
Std. track shoe width |
450 mm |
|
Bucket capacity |
0.28 m³ |
|
Boom length |
3720 mm |
|
Arm length |
1620 mm |
|
Max. Digging Height |
5155 mm |
key feature
Strong Digging Performance – Delivers reliable digging and lifting power for demanding jobs.
Efficient Hydraulic System – Provides smooth operation and high working efficiency.
Durable Construction – Built for stable performance in tough working environments.
Comfortable Operator Cabin – Offers a practical and comfortable working environment.
Versatile Applications – Ideal for construction, earthmoving, roadwork, and landscaping projects.
Industrial Application Scenarios
Municipal Pipeline Backfilling: Compact tail swing profile allows safe operation within single-lane road closures and tight urban utility corridors.
Quarry Stripping Operations: Reinforced boom geometry and 56 kN breakout force clear overburden, broken granite, and aggregate materials efficiently.
Agricultural Land Reclamation: Auxiliary dual-way hydraulic lines support heavy brush cutters, earth augers, and land-clearing grapples.
Foundation Trenching: 4,150 mm maximum digging depth enables precise footings and drainage installation in clay or rocky terrain.
...
Our company
FAQ
Q1: How does the SY75C auxiliary hydraulic line match high-flow attachments like hydraulic breakers or tilting couplers?
A: The SY75C features an integrated proportional dual-way auxiliary line controlled via joystick switches. Main line hydraulic flow delivers up to 149 L/min at 27.5 MPa working pressure. Relief valve pressures can be adjusted to match hydraulic hammer, auger, or shear flow limits without causing system backpressure spike or oil overheating.
Q2: What sea freight packaging and containerization methods are used for bulk SY75C exports?
A: For standard ocean freight, the SY75C fits inside a 40ft High Cube (40HC) container by removing the bucket and adjusting the boom stance. Machine frames are secured via heavy-duty ratchet straps attached to chassis tie-down points. Underbody metal and cylinder rods receive factory-applied anti-corrosion wax spray to protect against saltwater mist during transit.

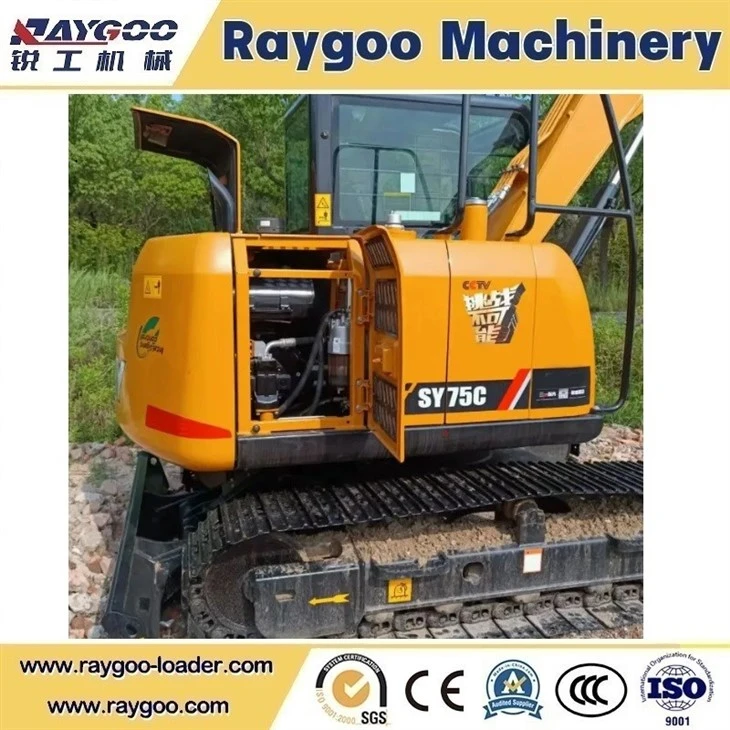

Q3: How does the engine cooling package perform under 50°C high-ambient desert environments?
A: The SY75C utilizes a heavy-duty side-by-side radiator and hydraulic oil cooler module designed for extreme thermal loads. High-capacity suction fans combined with widened radiator fin spacing prevent dust accumulation while maintaining hydraulic oil working temperatures below 85°C during continuous heavy digging in high-temperature ambient conditions.
