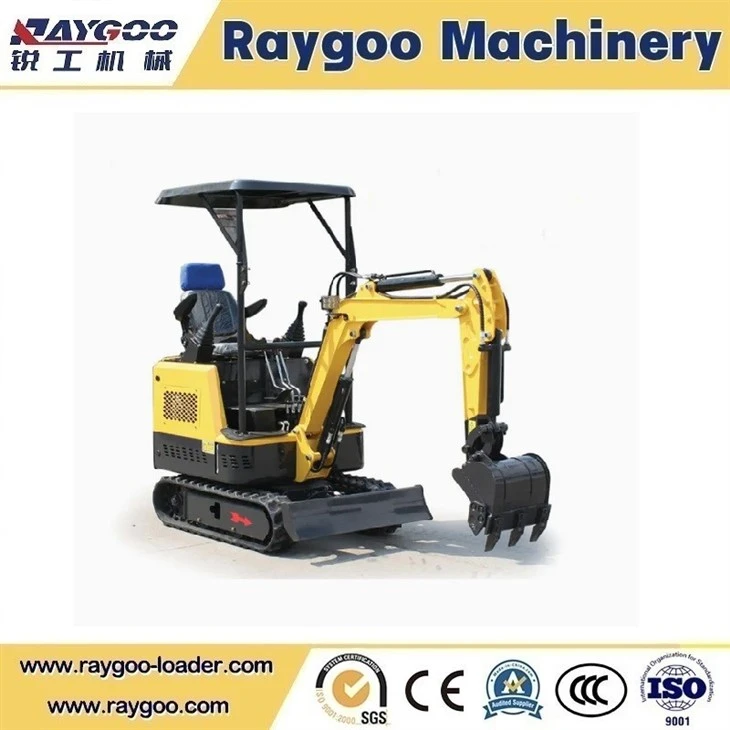

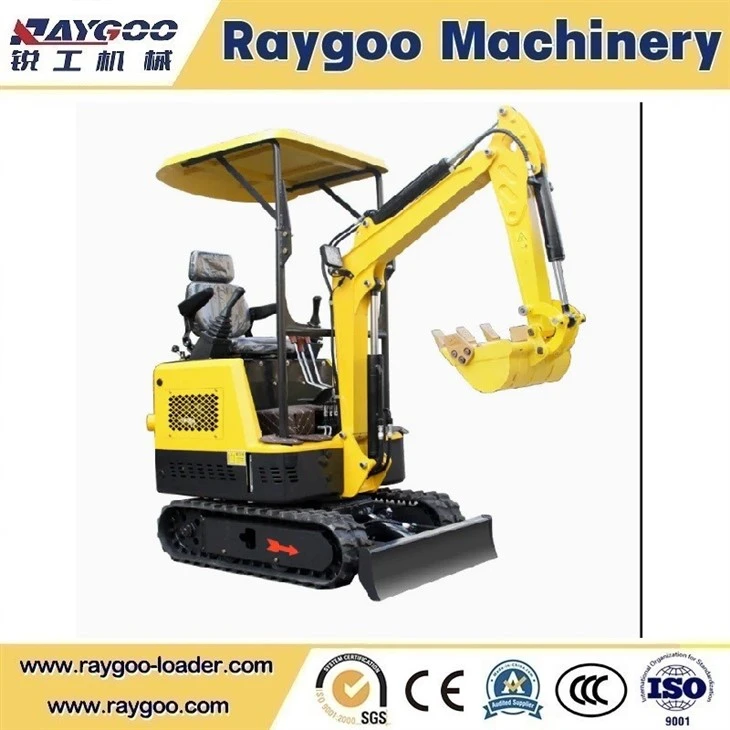

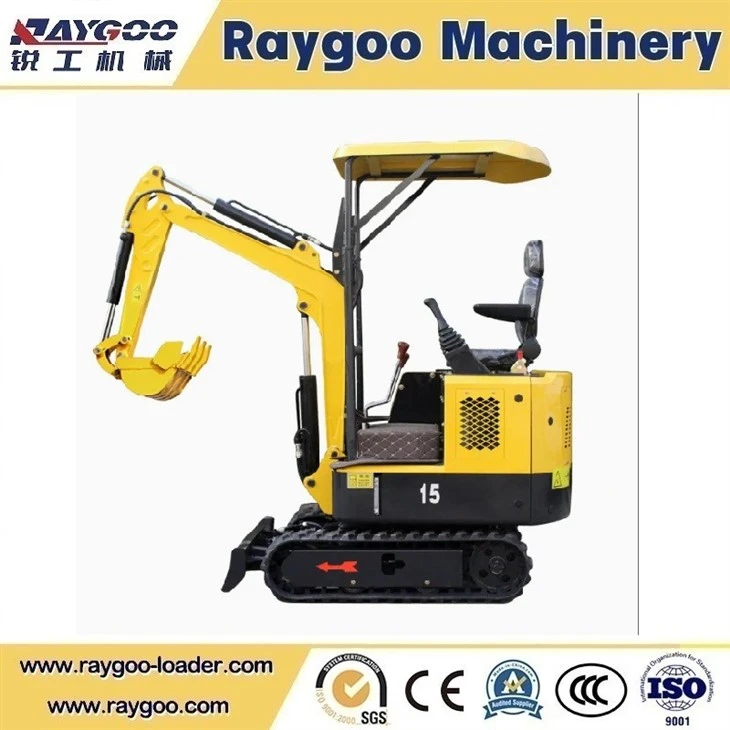

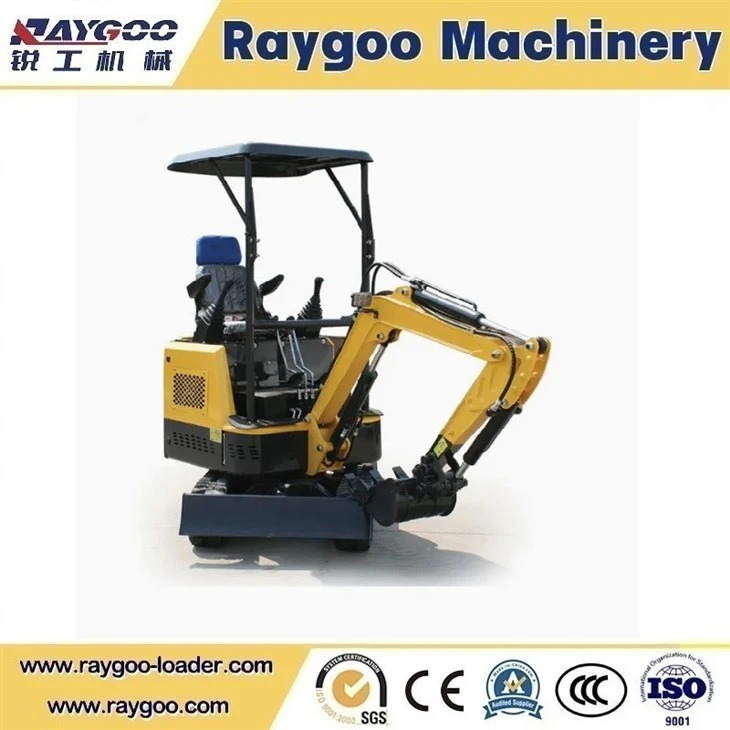

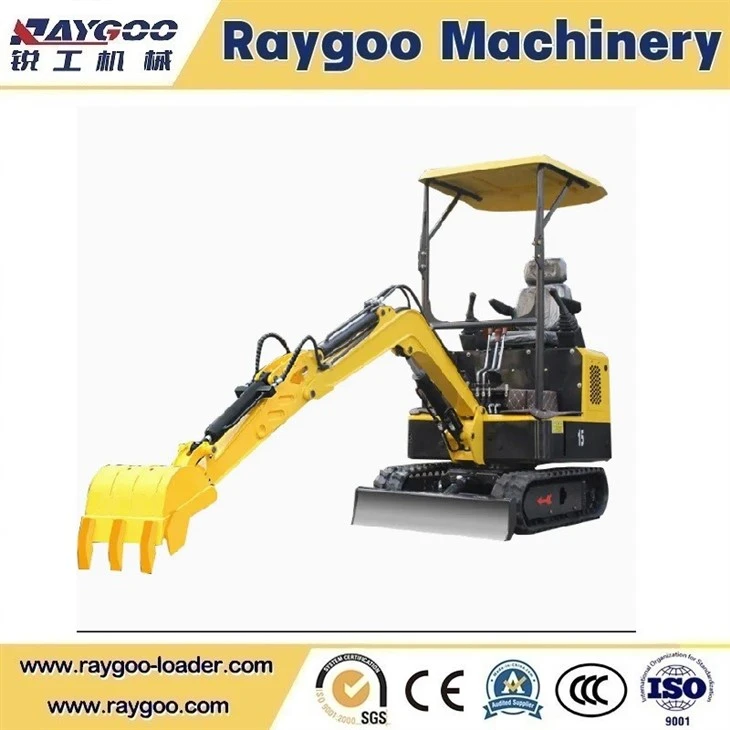

Product Details
HT15
Model
1500kg
Operating Weight
0.04m3
Bucket capacity
Specifications
| Item | Specification |
|---|---|
| Model No. | HW15 Mini Crawler Excavator |
| Operating Weight | 1500 kg (1.5 ton) |
| Engine Type | Single-cylinder air-cooled diesel engine / Water-cooled diesel engine (optional) |
| Rated Power | 9.5kW / 12.8HP |
| Engine Speed | 2200 r/min |
| Drive Mode | Full hydraulic crawler drive |
| Track Type | Standard rubber track; Steel track optional |
| Track Width | 180 mm |
| Track Length on Ground | 1100 mm |
| Chassis Width (Min) | 980 mm |
| Chassis Width (Max, Bulldozer Blade Spread) | 1100 mm |
| Overall Dimensions (L×W×H) | 2500×980×2200 mm |
| Digging Performance | |
| Max Digging Depth | 1600 mm |
| Max Digging Reach (Ground Level) | 2400 mm |
| Max Digging Height | 2450 mm |
| Max Dumping Height | 1750 mm |
| Side Swing Angle of Boom | Left 90° / Right 90° (Total 180°) |
| Bucket Capacity (Standard) | 0.03 m³ |
| Bucket Digging Force | 7.2 kN |
| Arm Digging Force | 5.8 kN |
| Travel Performance | |
| Travel Speed (Low/High) | 1.2 / 2.8 km/h |
| Gradeability | 30° |
| Ground Clearance | 180 mm |
| Ground Pressure (Rubber Track) | 0.32 MPa |
| Hydraulic System | |
| Main Pump Type | Gear pump |
| Rated System Pressure | 16 MPa |
| Control Mode | Pilot hydraulic control lever |
| Bulldozer Blade Size | Width 1100 mm, Height 250 mm |
| Standard Configuration | Sunshade canopy, shock absorption seat, standard digging bucket, bulldozer blade, full hydraulic system, safety warning signs |
| Optional Attachments | Hydraulic breaker, auger drill, log grapple, narrow trenching bucket, enclosed cab, steel tracks |
| Fuel Tank Capacity | 12 L |
| Hydraulic Oil Tank Capacity | 18 L |
| Noise Level | ≤78 dB |
Core Advantages
Ultra-Compact Body Design The narrow chassis and small turning radius allow smooth operation in courtyards, green belts, indoor sites and narrow roadways where large excavators cannot access. Equipped with durable rubber tracks as standard, it protects lawns, asphalt floors and concrete ground from scratches and damage.
Stable & Powerful Hydraulic System Adopts integrated multi-way valve hydraulic assembly with smooth boom, arm and bucket movements. Independent swing cylinder for the digging arm realizes 180° side digging, greatly improving working flexibility. Matching high-efficiency engine delivers stable digging force while controlling fuel consumption.
Main Application Scenarios
Landscaping: Tree planting, pit digging, garden soil arrangement, river pond dredging;
Agriculture: Farmland renovation, greenhouse foundation digging, manure cleaning;
Municipal Works: Cable trench digging, pipeline laying, sidewalk repair;
Renovation & Demolition: Indoor wall breaking, small building dismantling, waste clearance;
Household Projects: Courtyard reconstruction, swimming pool excavation, small foundation construction.
...
Our company
FAQ
Q1: Where can this mini excavator work?
A: It works for gardens, farms, small construction, pipeline digging and house renovation. It fits narrow spaces easily.
Q2: Can I replace rubber tracks with steel tracks?
A: Yes. Steel tracks are optional for rough rocky ground. Rubber tracks are standard to protect roads and lawns.
Q3: What extra tools can I install on this machine?
A: You can add hydraulic breaker, auger drill, log grapple and narrow digging bucket for different jobs.
