Product Details

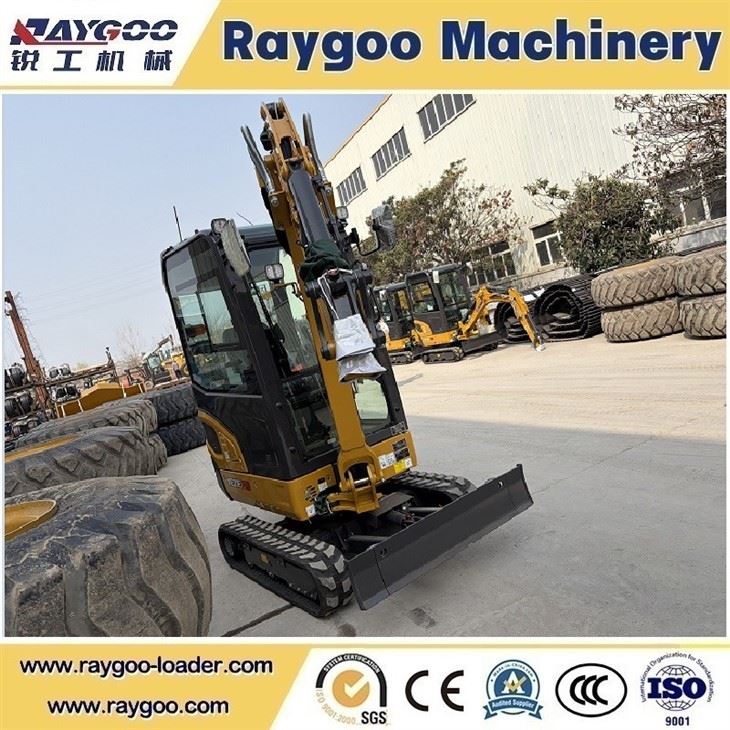

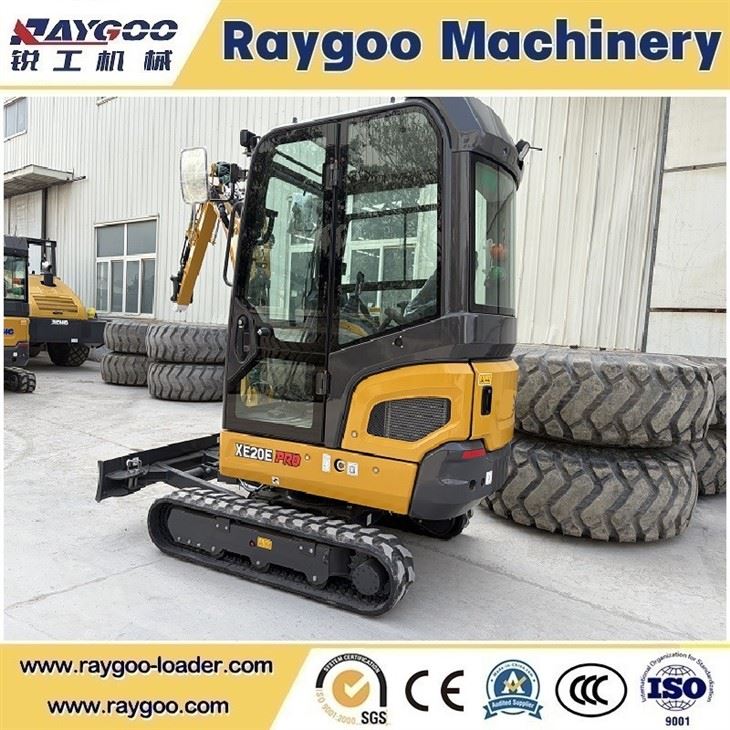

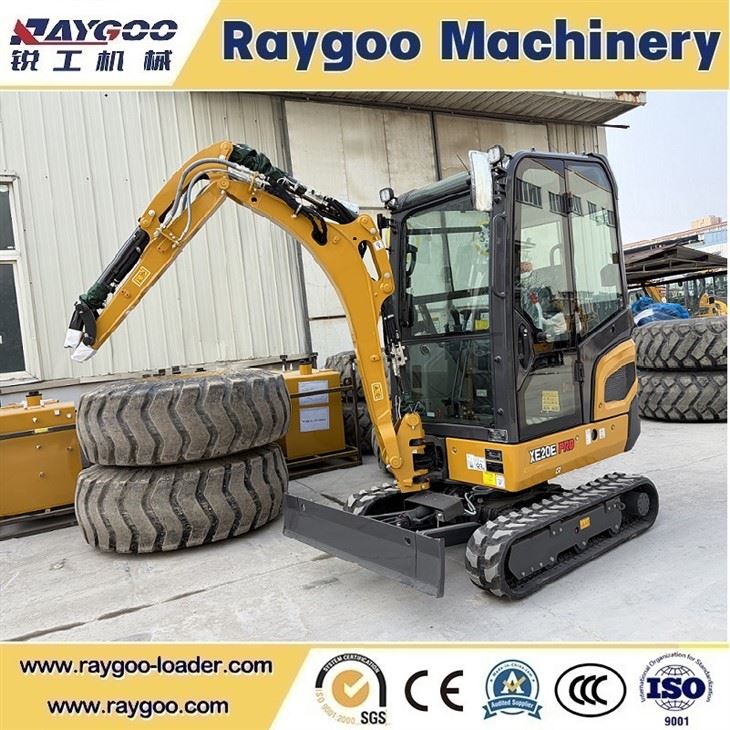

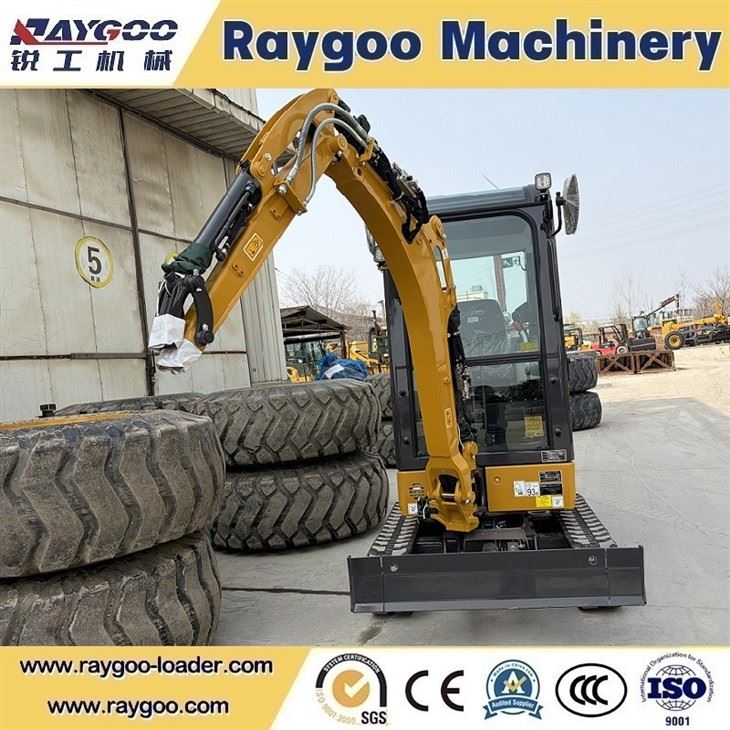

XE20E
Model
6,050kg
Operating Weight
0.25m3
Bucket capacity
Specifications
|
Operation Weight |
6050 kg |
|
|
Bucket Capacity |
0.25 m³ |
|
|
Main performance |
Travel speed(H/L) |
4.2/2.2 km/h |
|
Rotating speed |
10 r/min |
|
|
Gradeability |
35° |
|
|
Ground pressure |
32.5 kPa |
|
|
Bucket digging force |
48.3 kN |
|
|
Arm digging force |
32.5 kN |
|
|
Maximum traction |
50.5 kN |
|
|
Hydraulic system |
Rated flow of main pump |
151.2 L/min |
|
Pressure of prime valve |
24.5 Mpa |
|
|
Pressure of travel system |
22 Mpa |
|
|
Pressure of swing system |
21 Mpa |
|
|
Pressure of pilot system |
3.5 Mpa |
|
|
Oil capacity |
Fuel tank capacity |
110 L |
|
Hydraulic tank capacity |
85 L |
|
|
Engine oil capacity |
12 L |
|
|
Appearance size |
Overall dimensions(L*W*H) |
5860×1920×2585 mm |
|
Width of platform |
1780mm |
|
|
Width of crawler |
400 mm |
|
|
Clearance under counterweight |
700 mm |
|
|
Min. ground clearance |
385 mm |
|
|
Min. tail swing radius |
2890 mm |
|
key feature
Compact and Flexible – Ideal for narrow spaces and urban construction.
Powerful Performance – Delivers reliable digging and lifting performance.
Fuel Efficient – Designed for efficient operation and lower fuel consumption.

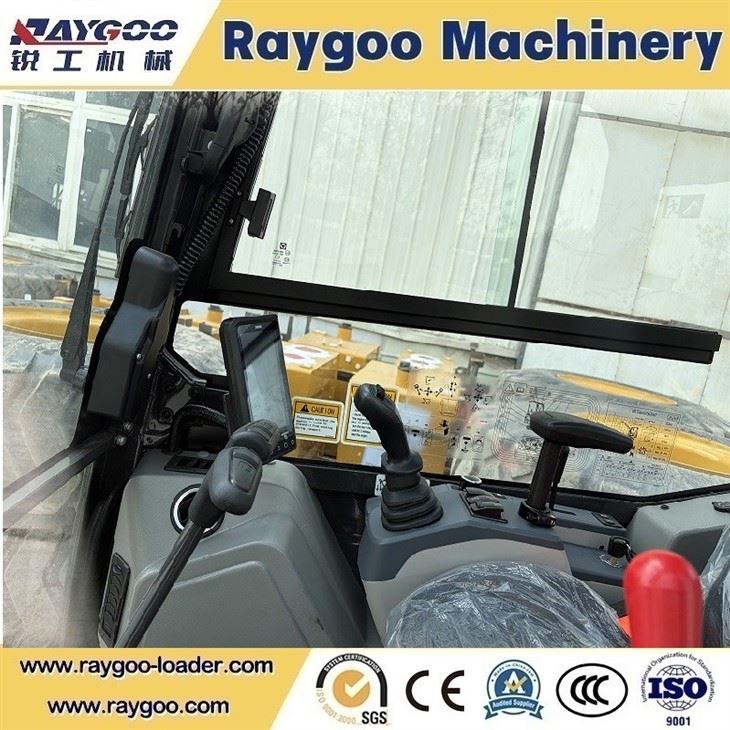

Easy Operation – Comfortable operator controls for improved productivity.
Versatile Applications – Suitable for construction, landscaping, farming, and utility work.
Applications
Trenching & Pipeline Work – Efficient for digging narrow trenches for cables, pipes, and drainage systems.
Residential Construction – Suitable for house foundations, renovations, and backyard projects.
Municipal Engineering – Ideal for urban infrastructure and public utility maintenance.
Demolition Work – Can be equipped with attachments for light demolition tasks.
Material Handling – Suitable for moving soil, gravel, and other materials on small job sites.
...
Our company
FAQ
Q1: What is the XE20E Mini Excavator used for?
A:The XE20E is ideal for small construction projects, landscaping, farming, utility work, and operations in narrow spaces.
Q2: What are the key advantages of the XE20E?
A: It offers a compact design, flexible operation, reliable performance, and good fuel efficiency for various job sites.
Q3: Is the XE20E Mini Excavator easy to operate?
A: Yes. Its compact design and user-friendly controls make it easy to operate, especially in confined working areas.
Hot Tags: xe20e mini excavator, China xe20e mini excavator manufacturers, suppliers, factory
