Key Specifications
|
Engine Power |
35.7 kW (48.5 hp) @ 2600 rpm |
|
Operating Weight |
2950 kg |
|
Rated Operation Capacity |
795 kg |
|
Raise |
3.9 s |
|
Dump |
1.9 s |
|
Lower (empty, float down) |
2.1 s |
|
Tipping Load |
1590 kg |
|
Bucket Breakout Force |
20.8 kN |
|
Dump Clearance - Full Height |
2220 mm |
|
Dump Reach - Full Height |
540 mm |
|
Engine Model |
/ |
|
Emission |
/ |
|
Cooling System |
13 L |
|
Overall Length with Standard Bucket |
3432 mm |
|
Overall Width with Standard Bucket |
1630 mm |
|
Overall Height to top of Cab |
1940 mm |
|
Front Clearance Radius with bucket |
1800 mm |
|
Bucket capacity |
0.4 m³ |

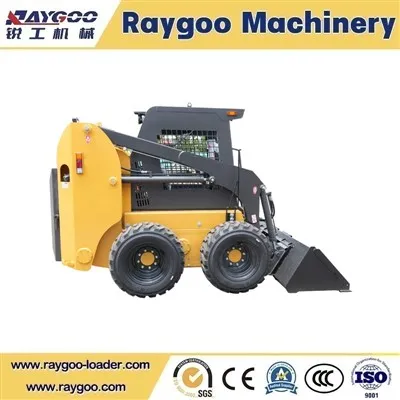

Key Features for 365b Mini Skid Steer Loader
- **High-Efficiency Power System**
Equipped with a stable, low-emission engine, this system balances powerful output with fuel efficiency to meet the demands of prolonged, continuous operation.
- **Agile Maneuverability**
Featuring a compact structure, a tight turning radius, and highly responsive controls, the machine is ideally suited for operations in confined spaces-particularly on narrow job sites and indoors.
- **Robust Load-Bearing Capacity**
Utilizing a reinforced lifting mechanism, the unit delivers exceptional loading, unloading, and handling performance, enabling it to effortlessly tackle high-intensity, high-frequency daily operational tasks.
- **Versatile Attachment Compatibility**
Supports the rapid interchange of various work tools-including forks, buckets, augers, and hydraulic breakers-offering multi-functional versatility to flexibly adapt to the requirements of diverse working conditions.
Applications for 0.4CBM skid steer
The 365B allows for the rapid interchange of a wide variety of attachments-including, but not limited to: forks, sweepers, cold planers, hydraulic breakers, augers, graders, snow plows, and enclosed sweepers. It is widely utilized across diverse applications such as road maintenance, snow removal, landscaping, agriculture, construction, ranching, and port operations.
Optional Configurations for skid steer pallet forks
- **Diverse Power Configurations**
Offers a selection of engines with various power ratings, allowing users to opt for high-output versions-tailored to specific operating conditions-to further enhance operational efficiency and load-carrying capacity. The equipment complies with Tier 3 and Tier 4 emission standards, meeting the environmental regulations and low-emission zone operating requirements of diverse regions.
- **Extensive Attachment Compatibility**
Compatible with a wide array of work tools, covering a diverse range of construction scenarios: including 4-in-1 multi-purpose buckets, heavy-duty pallet forks, augers for precision drilling, hydraulic breakers for demolition tasks, road sweepers, as well as winter operation equipment such as snow blowers and snow pushers.
- **Flexible Tire Configurations**
Allows for the selection of different tire types based on the actual operating environment. For complex and rugged terrain, high-traction off-road tires are available; conversely, for indoor operations or work on paved surfaces, solid tires can be selected to ensure both smooth operation and superior wear resistance.
Our company
FAQs
Q: What are the power system and emission standards for the LiuGong 365B?
A:
The LiuGong 365B skid steer loader offers a variety of engine configuration options to meet the diverse needs of different regions and operating conditions:
Engine Brands: Available options include engines from renowned brands such as Perkins, Yanmar, and Xinchai;
Emission Standards: Compliant with various emission requirements-including EPA Tier 3 / EU Stage IIIA and EU Stage II-to align with environmental regulations across different regions;
Q: What are the key points for the routine maintenance of the Liugong 365B?
A:
Check the levels of the engine oil, coolant, and hydraulic fluid to ensure they are sufficient;
Check the tire pressure and inspect for wear;
Check the electrical wiring, lights, and instrument displays to ensure they are functioning normally.
Q: For which specific operating scenarios is the LiuGong 365B skid steer loader primarily suited?
A:
The LiuGong 365B skid steer loader features a compact structure and exceptional maneuverability, making it ideal for a wide range of operations within confined spaces. Its primary applications include:
Construction: Site clearing, material handling, foundation excavation, etc.;
