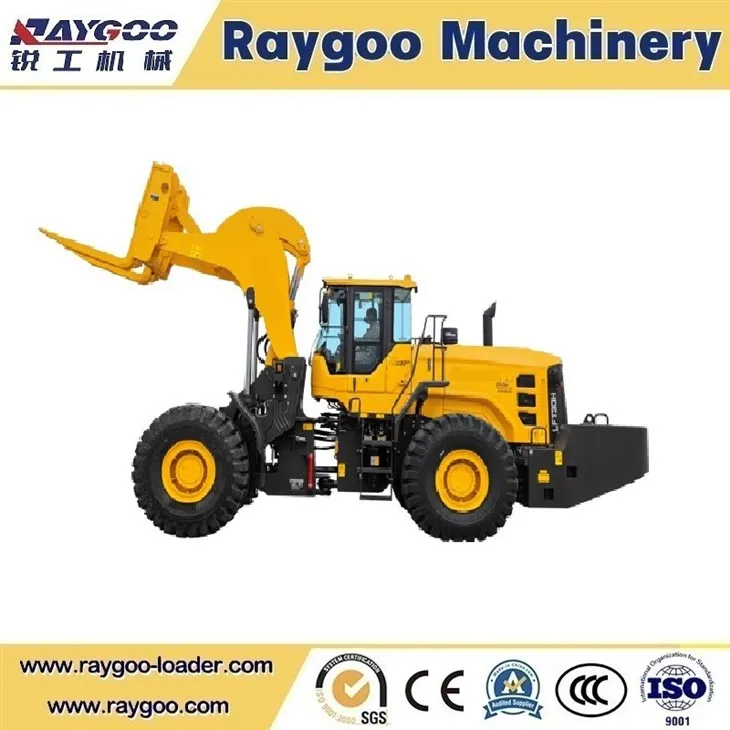

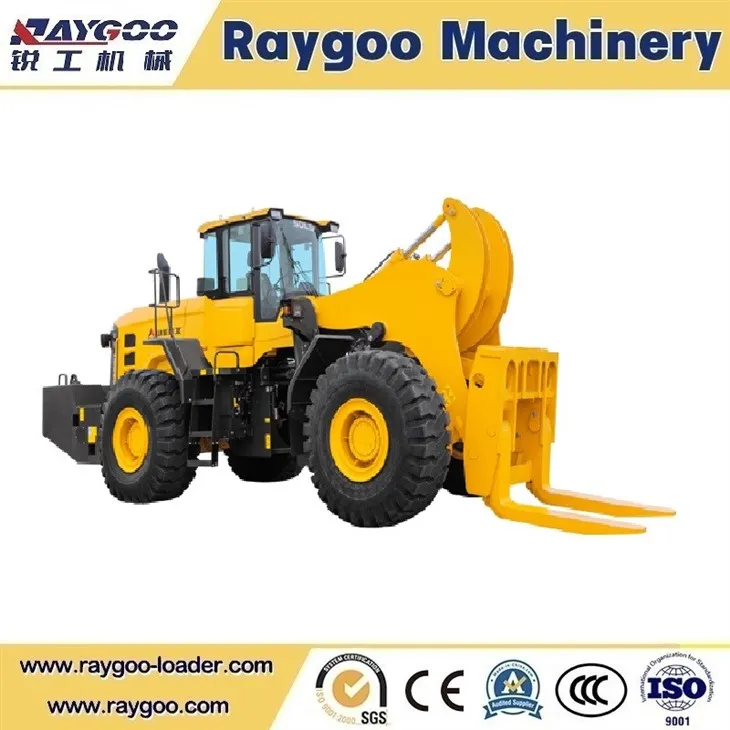

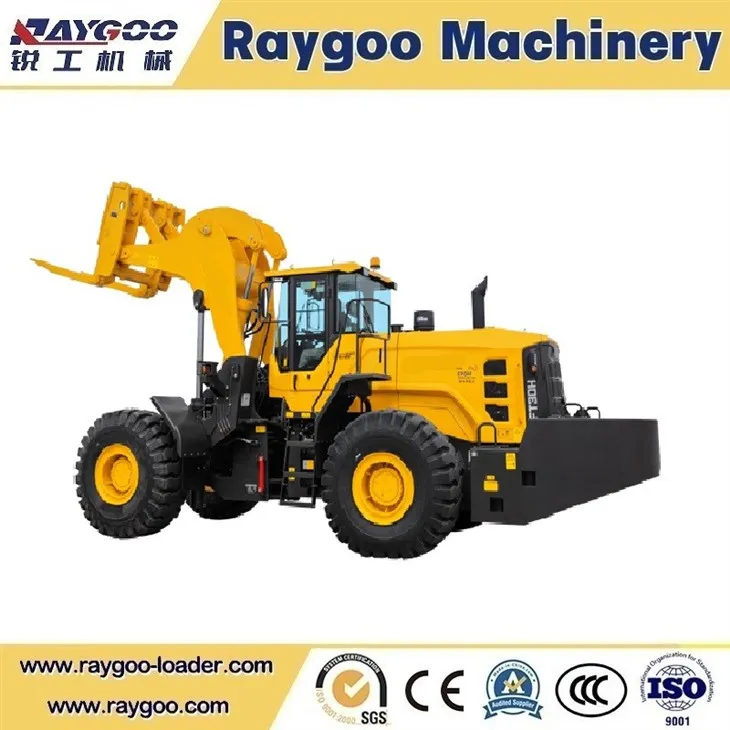

SDLG LFT30H Wheel Loader: Product Overview
The SDLG LFT30H is a high-performance, compact wheel loader engineered for demanding material-handling operations in mining, construction, and industrial settings. Leveraging Volvo Group's technological expertise, it combines robust power, precision maneuverability, and operational efficiency to maximize productivity in confined spaces.
LFT30H
Model
30000kg
Operating Weight
192kw
Engine Power
Technical Specifications of SDLG LFT30H Wheel Loader
| Parameter | Value |
|---|---|
| Operating Weight | 32,000 kg |
| Rated Load Capacity | 30,000 kg |
| Max Lift Height | 3,600 mm |
| Fork Dimensions | 1,500 × 280 × 130 mm (L×W×H) |
| Engine Power | 192 kW / 178 kW (varies by model) |
| Bucket Capacity | ~1.7 m³ (standard) |
| Breakout Force | >50 kN |
| Turning Radius | 7,645 mm |
| 7,645 mm | |
| Max Traction Force | 228 kN |
| Overall Dimensions | 9,785 × 3,115 × 3,510 mm (L×W×H) |
Design & Performance Features
Robust Structural Engineering
Utilizes high-strength steel in critical stress areas for enhanced durability under heavy loads.
Optimized weight distribution and a low center of gravity ensure stability during lifting operations, even at full capacity (30,000 kg)
Powerful & Efficient Engine
Equipped with a fuel-efficient diesel engine (e.g., WP10G240E342 model) compliant with international emission standards (e.g., China IV/Stage IV)
Delivers 178–192 kW power and high torque output for efficient handling of dense materials like rock, gravel, and industrial debris
Advanced Hydraulic System
Features a responsive hydraulic system enabling smooth lifting, lowering, and tilting motions, with a cycle time of 19.2 seconds for enhanced efficiency
Articulated steering provides a tight turning radius (7,645 mm), ideal for navigating cramped worksites
Applications
Primary Use Cases:Mining: Loading/transporting marble blocks and heavy
Construction: Truck loading, debris handling, and site preparation.
Industrial: Warehouse inventory management, palletized goods handling.
Advantages Summary
| Feature | Benefit |
|---|---|
| High Load Capacity | Handles 30-ton loads with stability, reducing operational cycles. |
| Fuel Efficiency | Advanced combustion tech lowers operating costs and emissions |
| Modular Maintenance | Easy-access components minimize downtime |
| All-Terrain Agility | Compact frame + articulated steering excels in confined spaces. confined spaces. |
Our company
FAQ
Q:1. What engine powers the LFT30H, and what are its emission standards?
A:
Engine Model: WP10G240E342 (Weichai Power).
Power Output: 178–192 kW (240–258 HP).
Emission Compliance: China IV / EU Stage IV equivalent. Designed for high torque at low RPM (1,500–1,800), reducing fuel consumption by ~8% vs. previous models.
Q:Can attachments be switched quickly? What types are compatible?
A:
Quick-Attach System: Standard hydraulic quick-coupler allows <2-minute changeovers.
Supported Attachments:
General-purpose buckets (1.5–3.0 m³)
Pallet forks (up to 2,500 mm length)
Snow blades, log grapples, and rock buckets. Custom attachments require hydraulic flow verification (Max. 220 L/min @ 21 MPa).
Q: How does the LFT30H perform in confined spaces?
A:
Articulated Steering: Provides a tight turning radius of 7,645 mm.
Visibility Enhancements: Low-profile boom design + 360° cabin windows minimize blind spots.
Gradeability: 30° slope capability on firm surfaces. Ideal for mining tunnels, warehouse aisles, and congested construction sites.
