Product Details

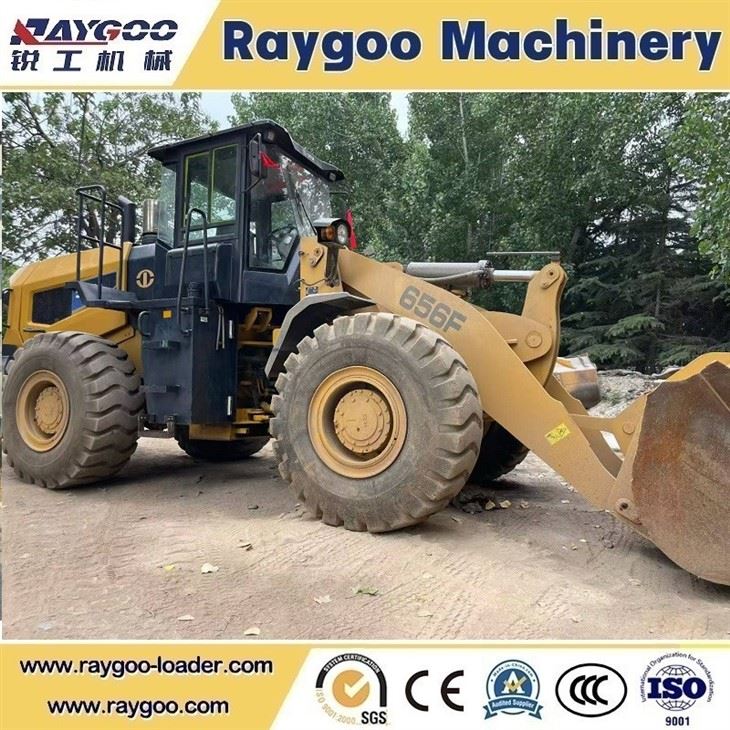

eliable Used SEM 656F Wheel Loader for Material Handling and Earthmoving
The used SEM 656F wheel loader is designed for demanding loading and transportation tasks across construction sites, aggregate yards, mining support operations, logistics terminals, and infrastructure projects. Built around a proven heavy-duty structure and efficient powertrain, this model combines strong breakout performance, stable operation, and practical maintenance access.
This machine offers a cost-effective alternative for contractors and equipment buyers seeking dependable loading capacity without the investment level of a new machine.
Each available unit is inspected before delivery to ensure operational readiness and consistent working performance.
656F
Model
17,678kg
Operating Weight
3.0m3
Bucket capacity
sem front end loader Specifications
| Item | Specification |
|---|---|
| Rated Load | 5,500 kg |
| Operating Weight (with Standard Bucket) | 17,678 kg |
| Bucket Capacity | 2.6 - 5.0 m³ |
| Wheelbase | 3,350 mm |
| Overall Dimension (L×W×H) | 8,472 × 3,117 × 3,465 mm |
| Max. Drawbar Force | 170 kN |
| Breakout Force | 161 kN |
| Dump Clearance | 2,991 mm |
| B-Pin Height | 4,162 mm |
| Engine Model | Weichai WD10G220E23 |
| Rated Power | 162 kW |
| Rated Speed | 2,000 rpm |
| Displacement | 9.7 L |
| Implement System Type | Open center flow sharing |
| Boom Raise Time | 5.13 s |
| Hydraulic Cycle Time | 9.3 s |
| System Pressure Setting | 17 MPa |
| Transmission Type | Countershaft, power shift |
| Transmission Gears | F4 / R4 |
| Torque Converter Type | Single stage, 3 elements |
| Transmission Model | TR200 |
| Forward/Reverse I | 7.6 / 7.6 km/h |
| Forward/Reverse II | 14 / 14 km/h |
| Forward/Reverse III | 22 / 22 km/h |
| Forward/Reverse IV | 39 / 39 km/h |
| Service Brake | Dry & caliper, air-to-oil control |
| Parking Brake | Drum / shoe type |
| Steering System Type | Load sensing |
| Steering Pump Type | Gear pump |
| Steering Pressure | 16 MPa |
| Steering Angle (L/R) | 38° ±1° |
| Main Drive Type | Spiral bevel gear, single stage |
| Final Drive Type | Planetary type, single stage |
| Rear Oscillation | ±11° |
| Tire Size | 23.5-25 |
| Tire Type | Bias |
| Tire Layer | 16 PR |
| Tire Tread Type | L-3 |
Why Buyers Consider Used SEM 656F
Lower acquisition cost compared with new equipment
Mature platform with accessible maintenance
Suitable for multiple industries
Fast deployment after delivery
Stable loading performance
Flexible configuration choices
Inspection Items Before Delivery for loader sem 656d
Each available machine can be checked for:
Engine starting condition
Hydraulic response
Transmission shifting
Steering performance
Bucket linkage condition
Tire wear status
Structural inspection
Functional operation test
Optional Configurations for sem 655d wheel loader
To adapt to different operating environments, the following configurations can be considered:
Bucket Options
Rock bucket
High dump bucket
Light material bucket
Coal bucket
Attachments
Pallet fork
Quick coupler
Log grapple
Material handling attachment
Operator Options
Air conditioning
Reverse camera
LED work lights
Suspension seat
Special Working Conditions
High-temperature cooling package
Dust protection package
Reinforced wear components
...
Our company
FAQ
Q: Is the loader ready to work after arrival?
A: Units are inspected before shipment and prepared for operation.
Q: Does this machine support long operating shifts?
A: Its heavy-duty structure is designed for continuous work conditions.
Q: What should be checked before purchase?
A: Operating hours, structural condition, hydraulic performance, drivetrain condition, and maintenance history.
