Product Details

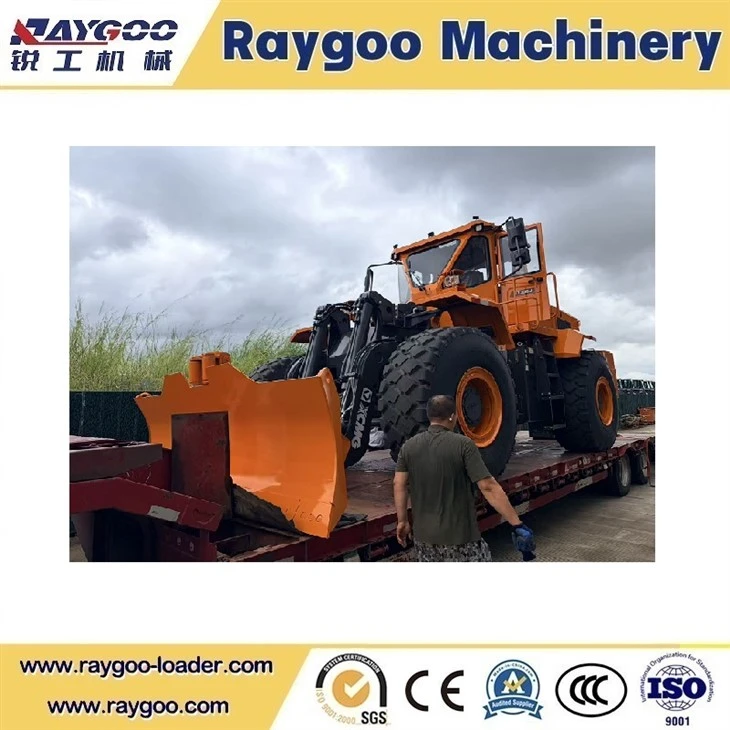

This GT35J High-speed bulldozer employs a "two-in-one" design that innovatively combines features of road and off-road vehicles. Its new chassis integrates the agility and efficiency of an articulated bulldozer frame with the high-speed stability and safety of a heavy-duty truck, achieving a stable driving speed of 80 km/h or higher while also meeting the requirements for low-speed, off-road earthmoving operations. The new dozer blade supports functions such as straight pushing, angled pushing (left/right), downward cutting/pushing, and scarifying, making it suitable for complex tasks like clearing road obstructions, site leveling, and trenching. The machine comes standard with a cab featuring Roll-Over and Falling-Object Protective Structures (ROPS/FOPS) and a standard control interface for unmanned operation, thereby better meeting the demands for high mobility and operational efficiency in modern emergency equipment modernization for disaster relief and support services.
GT35J
Model
20500kg
Rated Capacity
160m3
Bucket capacity
Product Parameters
| Item | Unit | Technical Parameters |
|---|---|---|
| Chassis type | / | Wheeled |
| Curb mass | t | 20.5 |
| Overall dimensions | mm | 7650×3400×3500 |
| Crew | person | 2 |
| Max. travel speed | km/h | 80 |
| Cruising range | km | 500 |
| Max. gradeability | ° | 27 |
| Fording depth | m | 1.2 |
| Blade width | m | 3.4 |
| Max. cutting depth | m | 0.45 |
| Max. lifting height | mm | 1000 |
| Dozing productivity | m³ | 160 |
| Wireless remote control distance | m | 50 |
| Applicable ambient temperature | °C | -40 ~ +46 |
| Adaptive plateau altitude | m | ≥ 4500 |
| Cab protection capability | / | Roll-over & falling-object protection (ROPS/FOPS) |
Product Highlights
- High Mobility:Features composite chassis technology, pioneering a new generation of high-speed chassis capable of stable travel at speeds exceeding 90 km/h; can rapidly reach work sites under its own power without the need for trailer transport; utilizes multi-mode suspension control technology to adapt to various operating conditions, offering superior off-road performance.
- Versatile and Efficient Operation: Capable of straight pushing, angled pushing (left/right), tilt-pushing, and soil loosening to handle complex dozing tasks; equipped with air supply and mounting interfaces for semi-trailers, enabling towing capabilities; includes a hydraulic power source interface.
- Safety, Ergonomics, and Comfort: Features ROPS (Roll-Over Protective Structure) and FOPS (Falling-Object Protective Structure); ergonomic design ensures high operational comfort; equipped with ABS braking and emergency steering functions for safe operation; utilizes pilot controls and an integrated heating/cooling air conditioning system for a comfortable operating environment.
- High Level of Intelligence: Monitor-based control and monitoring; status detection and fault diagnosis; intelligent cooling control; wireless remote control capabilities.
- High Level of Autonomy:99.5% localization rate; components from imported brands manufactured domestically account for only 1.2% of value (1.26/106), 0.13% of quantity (5/3785), and 0.83% of categories (2/240); core components-such as the transmission, drive axle, and controller-are independently developed by XCMG, ensuring autonomous control; achieved breakthroughs in five key technologies, including composite chassis technology and integrated steering control technology; generated 15 invention patents, 10 utility model patents, and 3 design patents.
Applications
- Construction Zones: Dumping material shifting, ground profiling and backfill placement.
- Mining & Rock Quarries: Topsoil stripping, haulage roadway upkeep.
- Highway Projects: Subgrade densification, bitumen paving operations. Emergency Rescue Works: Rubble clearance, rapid passageway establishment.
Our company
FAQ
Q: What operational functions does the GT350J high-speed bulldozer's blade offer?
A: Equipped with a new type of blade, this machine supports multiple operating modes-including **straight pushing, angled pushing (left/right), downward cutting/pushing, and soil loosening**. It is capable of handling complex dozing conditions and performing various tasks such as clearing road obstructions, site leveling, and trenching.
Q: What safety features does the cab include?
A: The machine comes standard with a **ROPS (Roll-Over Protective Structure) and FOPS (Falling-Object Protective Structure)** cab. This ensures operator safety during emergency relief operations or debris-handling tasks, meeting safety standards for emergency work.
Q: What is the purpose of the unmanned operation interface?
A: It features a **standard control interface for unmanned operation**, allowing for future automation upgrades. It supports the connection of external control systems and enables remote or autonomous driving modifications, aligning with the trend toward intelligent and unmanned emergency equipment.
