Product Details

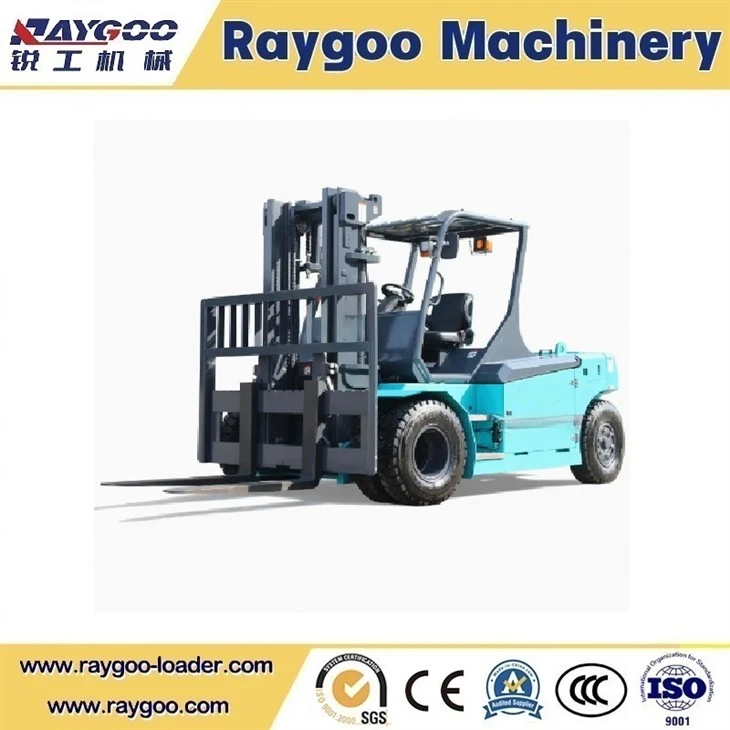

This is an 6/7t Heavy Duty Electric Counterbalanced Forklift. As a piece of heavy-duty, new-energy material handling equipment designed to replace traditional 8-ton diesel forklifts, it is suitable for both zero-emission indoor operations and heavy-duty outdoor tasks. It is widely used in environments requiring the transport of large volumes of heavy cargo, such as container terminals, stone processing plants, steel mills, large-scale warehouses, building material logistics centers, and heavy industrial facilities.
FB70
Model
7000kg
Rated Capacity
3720mm
Full length (without fork)
Product Parameters
|
Model |
FB60/FB70 |
Full length (without fork) |
3720mm |
|
Rated load capacity |
6/7T |
Full width (at the frame) |
2060mm |
|
Tyre type driving wheels/loading wheels |
pneumatic tire |
Minimum turning radius |
3355mm |
|
Lifting Height |
3000mm |
Roof Guard Height |
2480mm |
Applications for FB70
1.Warehouse & Logistics: Pallet handling, loading/unloading trucks, stacking goods
2.Industrial & Factory Use: Material transport, assembly line support, workshop handling
3.Construction Sites: Moving building materials, site organization, equipment handling
4.Port & Shipping: Container handling, cargo stacking, dock operations
5.Retail & Supermarkets: Stock replenishment, loading shelves, warehouse stocking
Key Configurations
Engine: High-performance diesel or electric motor, low-emission, fuel-efficient
Control System: User-friendly dashboard with load and fault monitoring
Safety Features: Automatic braking, emergency stop, overload protection
Forks & Mast:Adjustable forks, multi-stage mast options for different lifting heights
Cab / Operator Comfort:Ergonomic cabin with ROPS/FOPS protection, good visibility, optional air conditioning
Structural Design of Electric Forklifts
- Mast and Forks
Features a two-stage standard wide-view mast with internally routed hydraulic lines to prevent collisions and minimize wear. Equipped with thickened, heavy-duty forks suitable for handling steel coils, stone pallets, and heavy containerized cargo; fork spacing is manually adjustable.
- Operator Cabin
Designed with an open-style overhead guard, an ergonomic suspension seat, and a small-diameter, angle-adjustable steering wheel. Wide-angle side mirrors and a roof-mounted warning light ensure a clear, unobstructed field of vision. An integrated control lever allows for smooth, low-effort lifting and tilting operations.
- Heavy-Duty Tires
Large, solid industrial tires (front and rear) feature deep treads for superior wear resistance. They ensure stable operation across diverse surfaces-including concrete, gravel yards, and paved port areas-while offering puncture resistance and high load-bearing capacity.
Our company
FAQ
Q: How long does the battery last on a single full charge, and does it support fast charging?
A: It comes standard with a 554Ah LiFePO4 battery, which is fully sufficient for a standard 8-hour single shift; an optional 689Ah high-capacity battery supports 12-hour two-shift operations; and the 912Ah version supports 16 hours of continuous, all-day operation.
Q: Does the vehicle struggle or become unstable when turning or climbing slopes at full 8-ton load?
A: It does not lack power, and the risk of tipping over is extremely low.
Power: Equipped with a 35kW AC drive motor and a 40kW lift motor, it offers a maximum gradeability of 20% at full load, easily handling factory ramps and container loading ramps.
Stable Structure: Features a thickened counterweight, widened rear wheel track, and large, heavy-duty solid tires, ensuring minimal body roll during fully loaded turns. With a minimum turning radius of 3.35 meters, it can maneuver flexibly in narrow warehouses and container aisles.
Electronic Control: Includes built-in speed-limiting protection that automatically reduces speed during heavy-load turns to further ensure safety.
Q: Can it be used long-term outdoors in the rain or in humid port environments? What are its waterproof and dustproof ratings?
A: Yes, it is suitable for outdoor operation in rainy weather and humid port environments.
Protection: The vehicle's motors, controllers, and connectors are rated IP54, effectively blocking rain splashes and dust ingress. The battery compartment features a sealed, waterproof design, ensuring trouble-free operation in light rain.
Note: Prolonged exposure to heavy rain or driving through deep water is not recommended. For long-term use in coastal port areas, an optional anti-rust galvanized parts upgrade package is available to mitigate salt-spray corrosion..
