Product Details

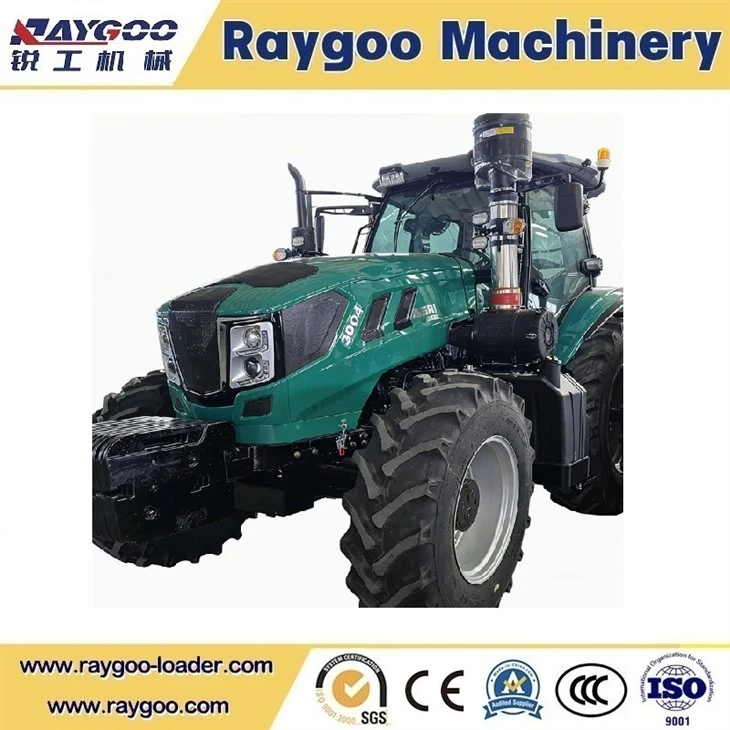

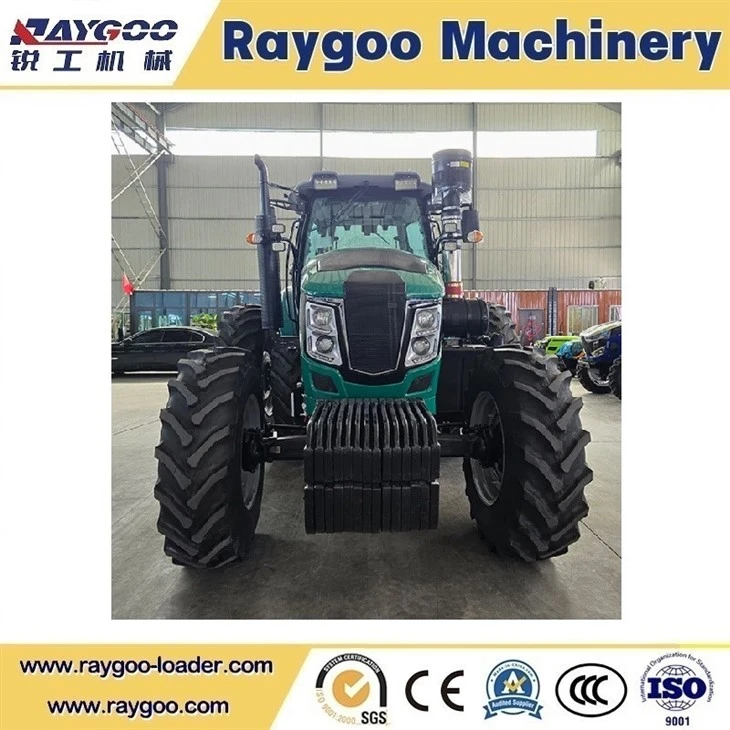

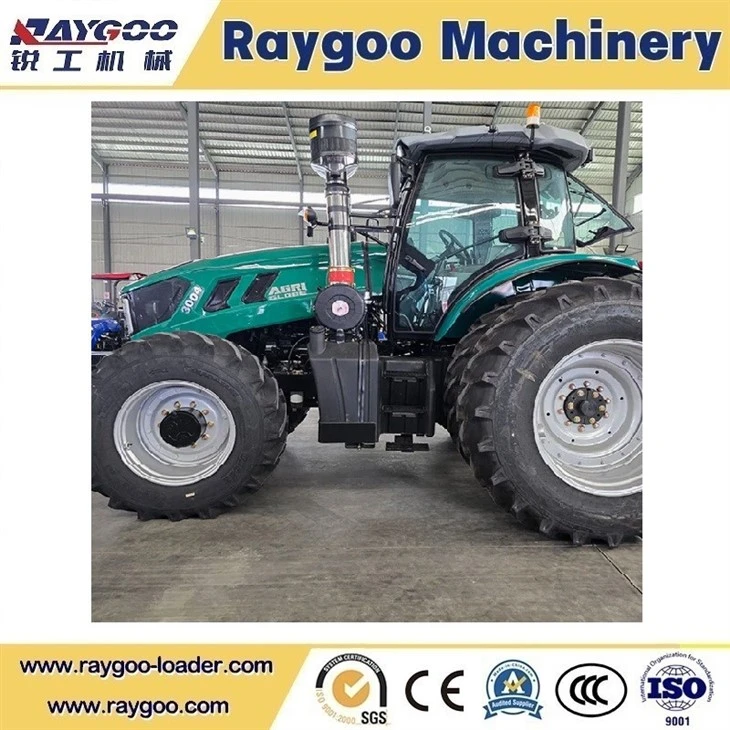

This Mini Tractor for Planting, 300-horsepower class, four-wheel-drive wheeled tractor powered by a six-cylinder, high-pressure common-rail, turbocharged diesel engine. It offers ample power reserves and robust torque output, making it suitable for heavy-duty agricultural tasks such as deep plowing, deep subsoiling, heavy-duty tillage, and large-scale seeding. Equipped with an elevated, extended multi-stage air cleaner, it features exceptional dust-blocking capabilities that effectively protect the engine and extend maintenance intervals during prolonged operation in dusty fields or dryland environments. Optimized for fuel efficiency, it maintains stable fuel consumption during extended, continuous operation, making it ideal for sustained cultivation on large-scale farms.
AG3004
Model
10500kg
Rated Capacity
4*4
WHEEL DRIVE
Product Parameters
|
TRACTOR MODEL |
AG3004 |
AG3404 |
|
ENGINE BRAND |
Shangchai |
|
|
ENGINE POWER |
220.5 kw |
250 kw |
|
ENGINE RATED SPEED |
2200 rpm |
2200 rpm |
|
WEIGHT |
10500kg |
|
|
WHEEL DRIVE |
4x4 |
|
|
ENGINE EMISSION ATANDARDS |
Stage III |
|
|
ENGINE TYPE |
In-line,4-stroke,supercharged,high pressure common rail |
|
|
GEAR SHIFT |
24F+12R synchro shift |
|
|
CLUTCH TYPE |
Dry,single action |
|
|
DRIVING SPEED |
3.10-39.10 km/h |
|
|
PTO TYPE REV (r/min) |
540/1000 rpm |
|
|
PTO SPLINE SIZE |
20 or 21 teeth |
|
|
GROUND CLEARANCE |
528mm |
|
|
STEERING TYPE |
Hydraulic Power |
|
|
WHEEL BASE |
3302mm |
|
|
WHEEL TREAD |
2150-2750mm |
|
|
DIMENSION |
5790x2990x3420 mm |
|
|
DIFFERENTIAL LOCK |
Manual Differential Lock |
|
|
THREE POINT HITCH |
Rear,3 point suspension |
|
|
Number of rear control valves |
5 groups multi-way valves |
|
|
Hydraulic control system |
Electronic controlled lift |
|
|
Hydraulic flow (lit/m) |
196 |
|
|
FUEL TANK(L) |
700 |
|
|
TIRE SIZE |
600/70R30---710/70R42 |
|
|
OPTIONAL CONFIGURATION (TIRE) |
540-65R30/650-65R42 |
|
|
16.9R30-20.8R42 |
||
|
16.9-30/20.8-42 |
||
Small Tractor Transmission and Drivetrain Systems
- Features a four-wheel-drive configuration with heavy-duty, reinforced front and rear drive axles. Equipped with wide, deep-tread radial agricultural tires, the design ensures a large ground contact area and excellent traction, effectively minimizing slippage while offering strong adaptability across wet, clay, and dry soil conditions
- The transmission supports a multi-gear configuration, covering a wide speed range-from low-speed, high-load tillage to road transport-and is compatible with various large-scale agricultural implements. The power take-off (PTO) shaft supports standard operating speeds, accommodating equipment such as reversible plows, subsoilers, balers, and heavy-duty seeders.
Reliability and Operational Versatility
The unit features a heavy-duty, reinforced chassis; the frame and drivetrain components are engineered for enhanced durability, ensuring reliable performance during continuous, heavy-load operations. The structural design balances strength with excellent maneuverability, making it ideal for large-scale farmlands, state farms, and commercial agricultural operations. It supports the installation of front and rear ballast weights to further boost traction, accommodating a wide range of tasks such as plowing, land preparation, straw incorporation, and hauling.
Our company
FAQ
Q: For which types of field operations is the 3004 tractor primarily designed?
A: This is a 300-horsepower, heavy-duty 4WD tractor designed mainly for heavy-load field operations. It can be paired with large reversible plows and subsoilers for deep tillage, as well as with straw incorporators, combined tillage implements, and heavy-duty seeders; it can also tow heavy trailers for transport. It is suitable for large-scale farm operations such as land tilling, straw management, and extensive seeding, particularly in large dryland or clay-soil fields.
Q: What are the advantages of the extended, high-mounted air filter?
A:Field environments often contain significant dust and crop residue; the extended, high-mounted multi-stage air filter stays clear of ground-level dust, resulting in cleaner air intake. Its multi-stage filtration structure efficiently removes impurities, minimizing dust entry into the engine, reducing cylinder wear, and extending engine service life. It also lengthens the interval between filter element replacements, offering distinct advantages for long-term operation in dry, dusty regions.
Q: What benefits does the combination of a 4WD system and wide tires provide?
A: Four-wheel drive delivers superior traction, making the tractor less prone to slipping during plowing. Wide agricultural tires with deep treads increase the ground contact area, lowering ground pressure and reducing soil compaction, which helps prevent the vehicle from getting stuck in wet or clay-heavy soil. Enhanced grip ensures lower power loss when operating heavy implements and improves overall operational stability.
