Product Details

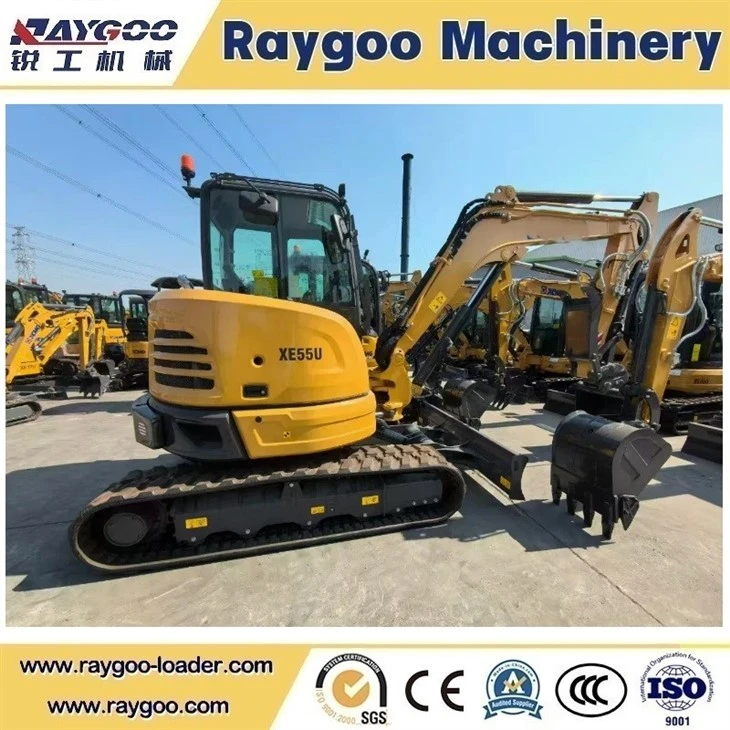

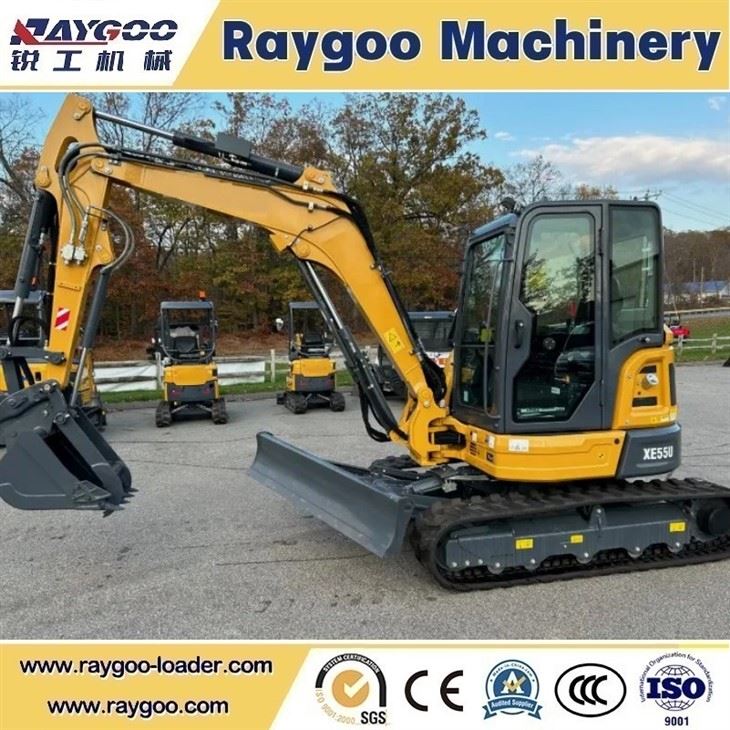

The XCMG XE55U is a compact and versatile hydraulic excavator designed for construction, landscaping, municipal projects, and other earthmoving applications. With reliable performance, excellent digging capability, and a compact design, it offers efficient operation in confined workspaces. The XE55U is an ideal choice for contractors looking for a practical and cost-effective excavator.
XE55U
Model
5,700kg
Operating Weight
0.5m3
Bucket capacity
Specifications
|
Engine |
Make/model |
V2403/Tier 4F |
|
No. of cylinders |
4 |
|
|
Piston displacement |
2 434 cm3 (0.6 gal.) |
|
|
Max torque |
159.8 N·m/1500 rpm |
|
|
Power output |
30.7 kW (41.2 hp) (ISO 14396) |
|
|
Digging forces |
Digging force, standard arm |
24.3 kN (5,462.9 lbf.) |
|
Digging force, bucket (ISO 6015) |
44.5 kN (10,004 lbf.) |
|
|
Overall track length |
2 490 mm (8'2") |
|
|
Swing mechanism |
Boom swing, left |
70° |
|
Boom swing, right |
53° |
|
|
Slew rate |
9.5 rpm |
|
|
Drive |
Travel speed (low - high) |
2.8-4.6 km/h (1.7-2.9 mph) |
|
Traction force |
52.8 kN (11,869.9 lbf.) |
|
|
Gradeability |
70%/35° |
|
|
Weight |
Operating Weight With Cab |
5.7 t (12,566 lb.) |
|
Operating Weight With Canopy |
5.6 t (12,346 lb.) |
|
|
Working range |
Maximum digging height - std arm |
5 650 mm (18'6") |
|
Maximum digging depth - std arm |
3 640 mm (11'11") |
|
|
Maximum dumping height - std arm |
4 010 mm (13'2") |
|
|
Minimum swing radius - std arm |
2 430 mm (7'12") |
key feature
Compact Design: Ideal for construction and confined workspaces.
Powerful Performance: Delivers reliable digging and lifting capability.
High Efficiency: Designed for efficient operation and lower fuel consumption.

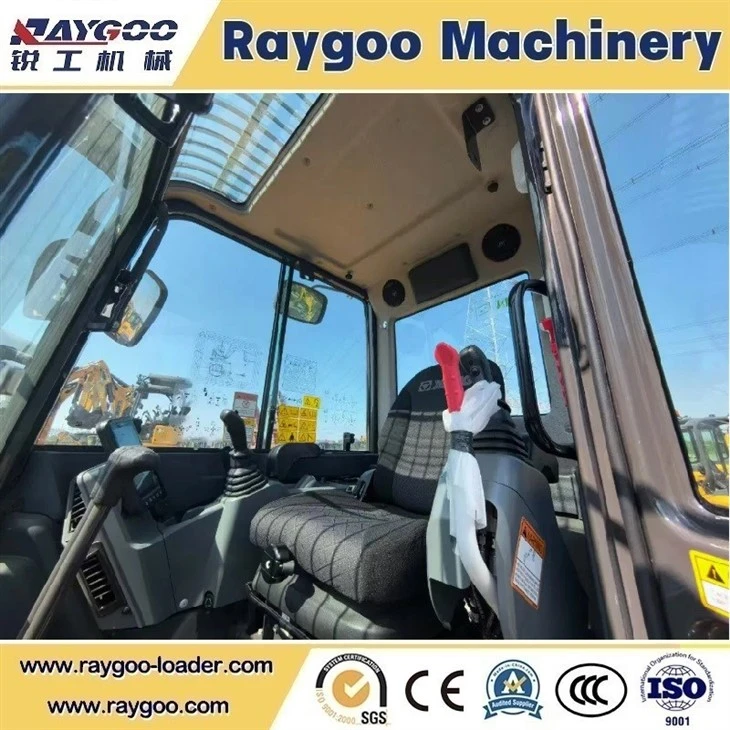

Easy Operation: Comfortable cab and user-friendly controls improve operator productivity.
Versatile Applications: Suitable for construction, landscaping, municipal projects, and earthmoving work.
Attachments
Standard Bucket – Suitable for general excavation and earthmoving.
Rock Bucket – Designed for digging in hard and rocky conditions.
Hydraulic Breaker – Ideal for concrete breaking and demolition work.
Hydraulic Thumb – Helps with material handling and sorting.
Auger – Suitable for drilling holes in soil and other materials.
...
Our company
FAQ
Q1: What is the XCMG XE55U used for?
A: It is suitable for construction, landscaping, municipal projects, roadwork, and earthmoving applications.
Q2: What are the advantages of the XE55U?
A: It features a compact design, reliable performance, easy operation, and versatile applications.
Q3: Is the XE55U suitable for confined spaces?
A: Yes. Its compact design makes it ideal for working in narrow and confined areas.
