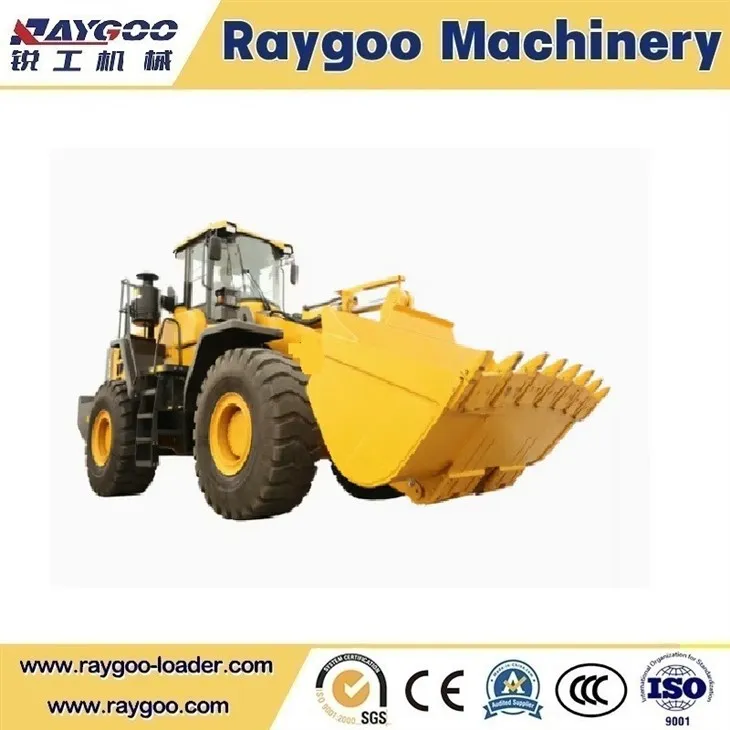

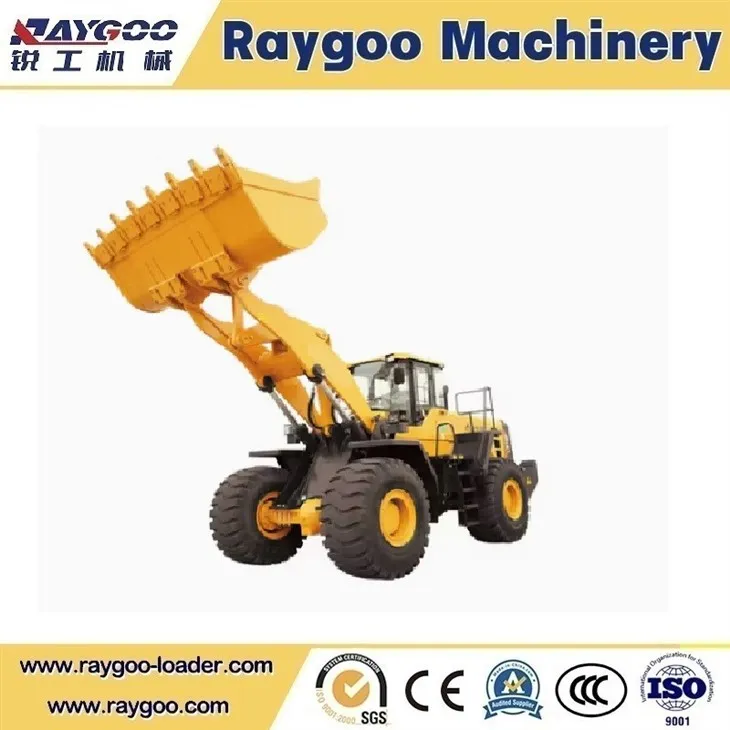

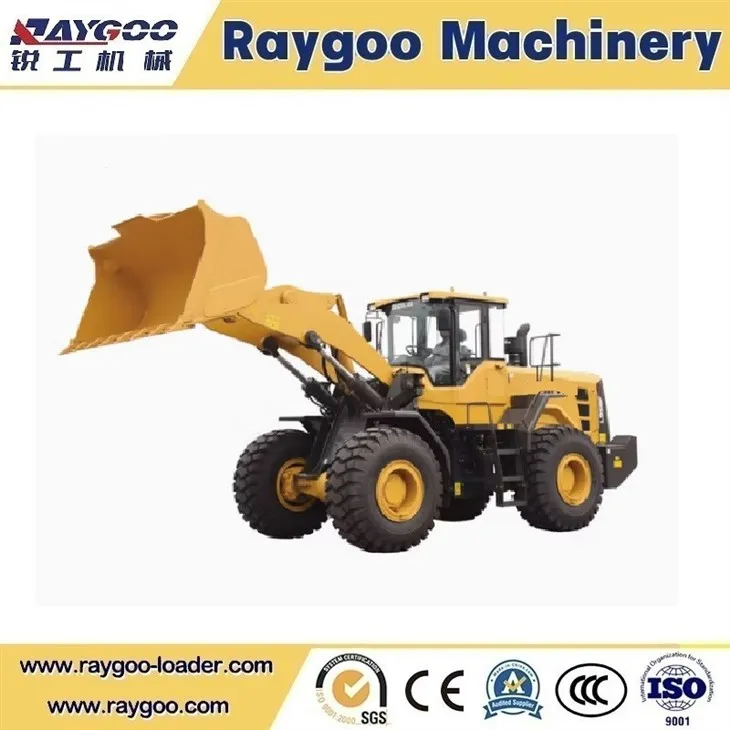

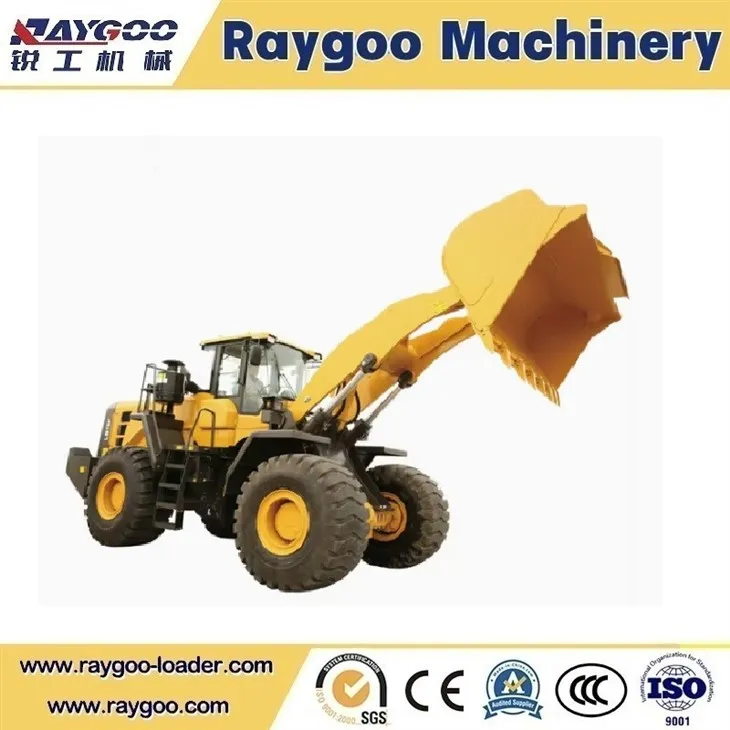

The product OF SDLG L975F Wheel Loader
The L975F is a robust and efficient 7-ton class wheel loader designed for demanding heavy-duty applications. As a new-generation high-end product developed on a 7-ton platform, it inherits the classic strengths of SDLG loaders-robustness, reliability, durability, stable performance, and energy efficiency. It is engineered for rapid operations with sparse materials and is widely recognized for its excellent market performance, having won prestigious awards such as the Gold Prize of Market Performance in China.
L975F
Model
7000kg
Operating Weight
7m3
Bucket capacity
Key Specifications of Sdlg L975F wheel loader
| Parameter | Value |
|---|---|
| Rated Load | 7000 kg |
| Operating Weight | 24900 kg |
| Standard Bucket Capacity | 4.2 m³ (range: 3.5 - 7.0 m³) |
| Overall Dimensions (LxWxH) | 9250 x 3320 x 3635 mm |
| Wheelbase | 3550 mm |
| Max. Dumping Height | 3200 mm / 3600 mm (varies by source) |
| Dumping Distance | 1315 mm |
| Engine Model | Weichai WP10G270E341 |
| Rated Power | 199 kW |
| Max. Breakout Force | 216 kN |
| Transmission | 4 Forward / 4 Reverse Gears |
| Fuel Tank Capacity | 380 L |
Core Features OF the L975F Wheel Loader
Powerful Performance & Efficiency: The L975F is equipped with a Weichai WP10G270E341 engine, delivering a rated power of 199 kW and complying with the China Phase III emission standard. It boasts a high breakout force for tough digging, with a maximum breakout force of 216 kN and a maximum tractive force of 226 kN. Its advanced single variable hydraulic system and Auto-Clutch automatic energy distribution system are designed to optimize power matching and significantly reduce fuel consumption, offering substantial cost savings compared to smaller loaders.
Specialized Variant: L975H Side-Discharge Model
Enhanced Stability & Durability: Built on a genuine 7-ton platform with a Volvo box-type chassis, the loader ensures exceptional structural integrity. A key design feature is its long wheelbase of 3550 mm, which is longer than many competitors, providing superior stability during heavy lifting and loading cycles. It utilizes heavy-duty components, including an 8/9T grade transmission and a 7T driving bridge, to increase bearing capacity and overall machine life, with the transmission lifetime rated for over 15,000 hours.
Manufacturer Background
it is a globally recognized heavy machinery brand (founded 1972). A Volvo Group partner, it specializes in loaders, excavators, and mining equipment, holding certifications like "Asia Quality Excellence Award."
Our company
FAQ
Q: What are the key technical specifications and applications of the L975F?
A: The L975F is a 7-ton class (Stage/Tier III) large wheel loader designed for heavy-duty material handling. Its core specifications include an operating weight of 24,900 kg, a rated load of 7,000 kg, and a standard bucket capacity of 4.2 m³ (with options from 3.5 to 7.0 m³). It is powered by a Weichai WP10G270E341 engine delivering 199 kW of rated power. The loader is engineered for demanding applications in quarries, mines, heavy infrastructure projects, ports, and construction sites.
Q:What features make the L975F reliable in tough and dusty working conditions?
A: The L975F incorporates several design elements for enhanced durability. It features a robust box-type frame for optimal load distribution. A key component is the oil bath air filter with a secondary stage, which boasts a 93% sand dust separation rate and filters over 95% of particles, making it exceptionally suitable for harsh, dusty environments like mines and significantly reducing the risk of engine premature wear.Additionally, the spill guard plate on the bucket helps prevent material loss during operation.
Q: How does the L975F ensure safety and fuel efficiency?
A: The loader includes multiple safety systems such as a start interlock that prevents the engine from starting unless the transmission is in neutral, and a lift limit that automatically stops the boom at its highest point to protect hydraulic components. It employs a full hydraulic wet brake system for reliable stopping power.For fuel efficiency, it uses a load-sensing variable hydraulic system that reduces flow loss and an integrated intelligent cooling system that automatically adjusts fan speed based on engine temperature, lowering energy consumption.These features contribute to lower operational costs.
