Product Details

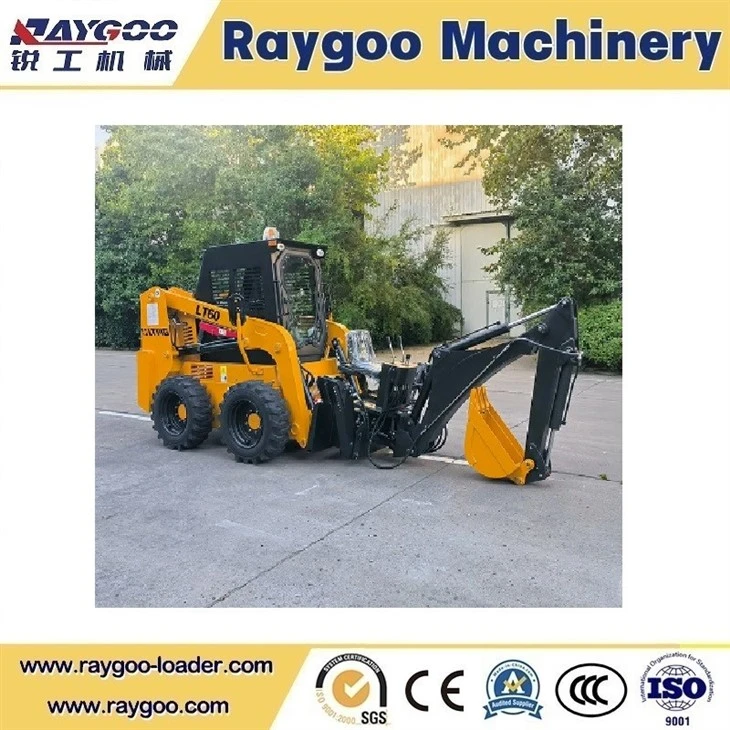

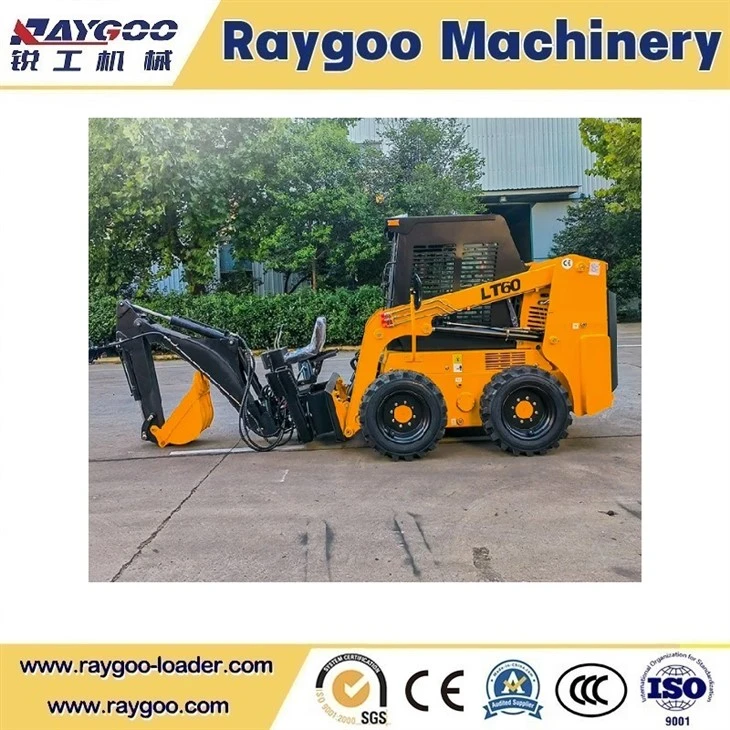

Mini Wheel Skid Steer Loader 630kg Employing skid steering technology, it boasts a zero turning radius, allowing for agile maneuvers in tight spaces. Its wide, off-road tread tires provide excellent ground grip, ensuring superior performance on muddy construction surfaces. The compact design makes it suitable for operation in confined spaces. The machine has an operating weight of approximately 2800kg, a rated load of 850kg, and a powerful 45kW engine.
LTMG‑LT60
Model
1000kg
Rated Capacity
0.3 M³
Bucket Capacity
ZS080V Product Parameters
| Operating weight | 2850kg |
| Rated power | 36.5kw |
| Blade capacity | 0.4m³ |
| Width | 1725mm |
| Height | 1998mm |
| Max. Operating Altitude | 3826mm |
Dual operating modes and driver's cab
- **Skip Steer Main Unit**: Quickly interchangeable buckets, forks, breakers, sweepers, and other attachments for loading, transporting, bulldozing, and sweeping operations. Hydraulic quick-change interfaces facilitate easy tool changes.

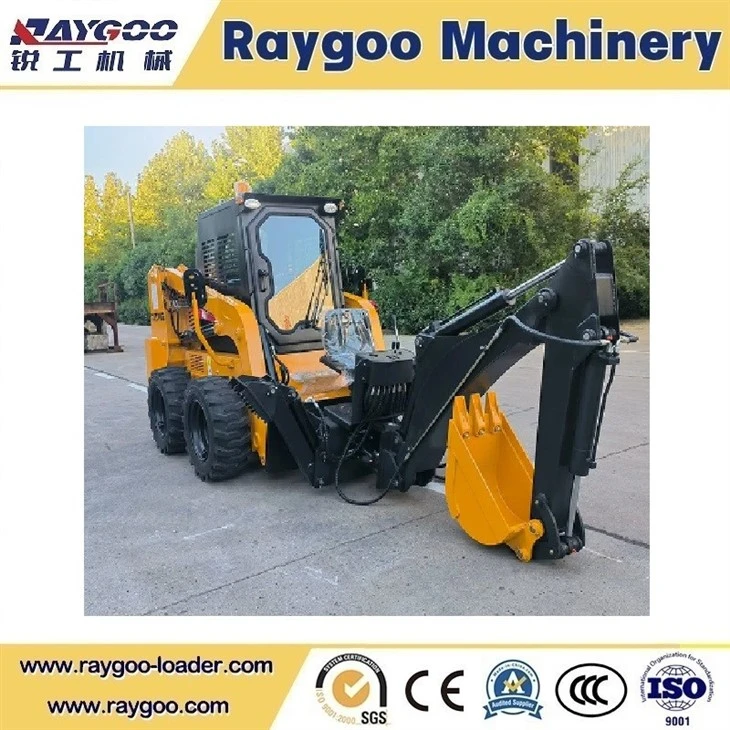

- **Rear-Mounted Backhoe Arm**: Independently hydraulically controlled for trenching, digging, and backfilling; capable of small to medium-sized excavation work without requiring a separate mini excavator; robust articulated arm structure ensures smooth hydraulic operation.
>
> One machine combines the functions of a loader and a mini excavator, saving on equipment procurement costs.
**Cockpit and Hydraulic System**: Enclosed cab for excellent visibility; multi-way hydraulic valves support combined operations, allowing simultaneous digging and lifting; comprehensive cooling system for extended continuous operation; modular attachment interfaces for strong expandability.
Application Scenarios
1. **Municipal Engineering** Urban road repair; excavation of drainage ditches and cable trenches; sidewalk renovation; pipeline laying; backfilling of earthwork in residential areas; clearing construction waste. Ideal for urban streets and alleys with limited space where large excavators cannot access.
2. **Landscape Engineering** Gardening: digging tree pits, excavating ponds, leveling land; transporting seedlings; landscaping preparation.
3. **Small Building and Courtyard Renovation** Rural self-built house foundation excavation and backfilling; courtyard renovation, earthwork in small yards; indoor factory renovation (small indoor spaces).
4. **Farms/Ranches** Farms: digging irrigation ditches; material handling and stockpiling; clearing poultry and livestock pens.
5. **Factory and Warehouse Areas** Factory area cleaning and material transfer; factory pipeline repair and excavation.
6. **Post-Disaster Emergency Repair** Clearing obstacles in narrow areas and digging drainage ditches.
Our company
FAQ
Q: Does a skid steer loader with a backhoe need to be secured during backhoe digging operations?
A: Yes. When digging, the backhoe's outriggers must be lowered to support the ground and counteract the reaction force generated during digging, preventing the machine from tilting or wobbling. Heavy digging without outriggers is strictly prohibited and will damage the frame and tires. The backhoe is only suitable for light to moderate earthmoving operations and cannot be compared to the digging power of a dedicated mini excavator.
Q: What attachments can be changed on the LT60 skid steer loader?
A:The front of the main unit supports quick-change attachments: standard bucket, breaker, forks, sweeper, snowplow, and log grappling hook; the rear can be fitted with the backhoe boom. One main unit can switch between different tools to perform multiple operations such as digging, loading, breaking, transporting, and sweeping. Attachment installation and removal are done via hydraulic quick-change, allowing for fast changes.
Q: What size workspace is it suitable for?
A: Relying on zero-radius skid steering, the machine has a compact body, **approximately 1.6-1.7 meters wide**, allowing it to enter and exit narrow alleys, residential areas, factory workshops, and indoor renovation sites. Its core application is in confined spaces inaccessible to large excavators and loaders. It is not suitable for large-scale, high-volume outdoor earthmoving projects.
