Product Details

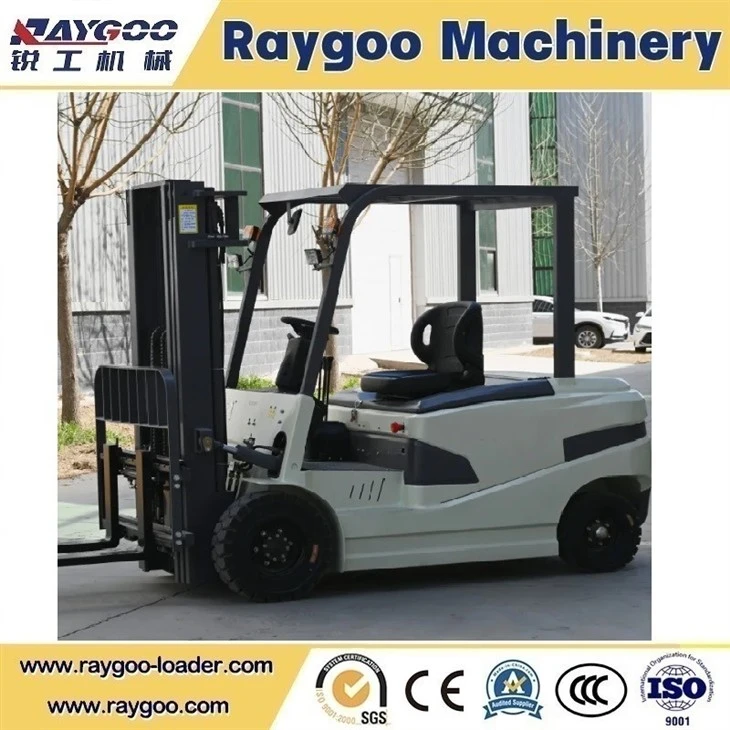

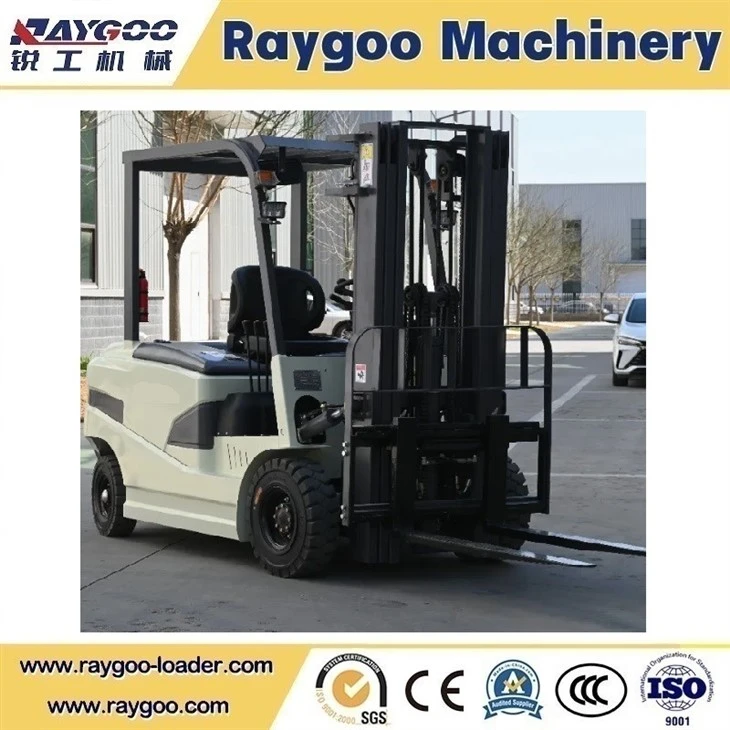

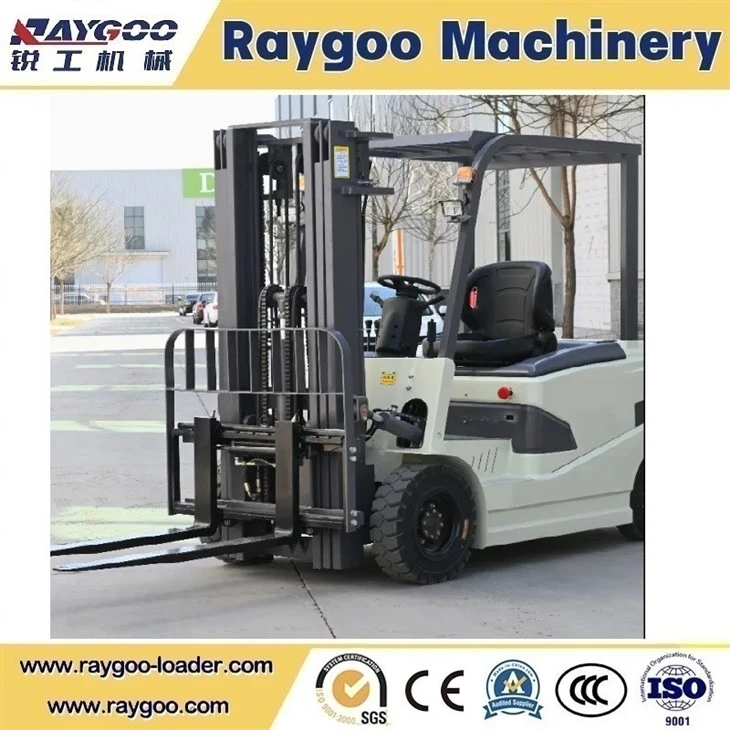

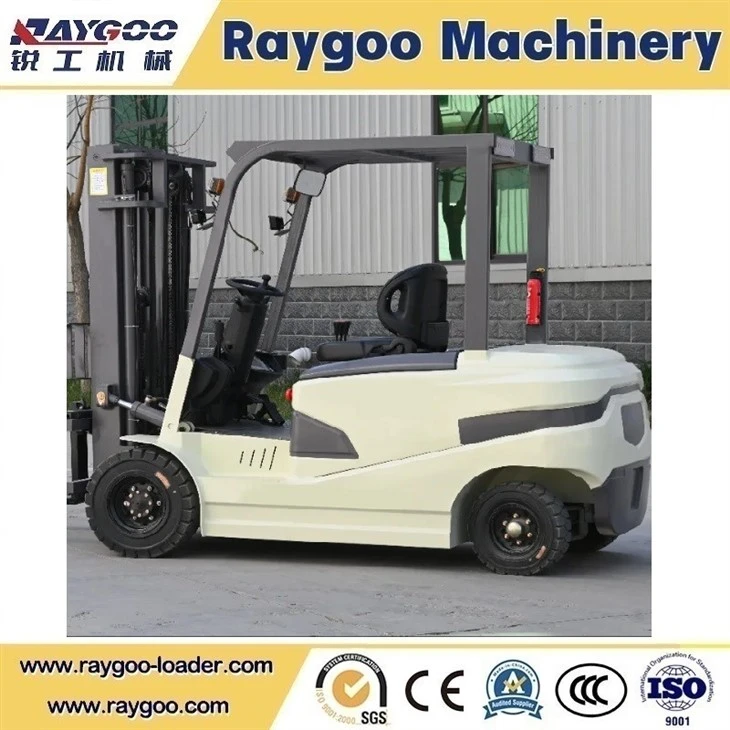

The AC25 electric forklift is a 2.5-ton four-wheel sit-down counterbalance electric forklift, equipped with full AC drive & lifting motor system. Designed for indoor warehouses, factories, logistics yards and light outdoor cargo handling. It delivers low noise, zero exhaust emission, stable operation and lower daily maintenance cost compared with diesel forklifts.
CPD35
Model
3500kg
Rated Capacity
3000mm-6000mm
Full length (without fork)
Product Parameters
| Item | Parameter |
|---|---|
| Model | AC25 / CPD25 |
| Rated load capacity | 2500 kg (2.5 ton) |
| Load center distance | 500 mm |
| Mast type | Duplex mast / Triple mast (optional) |
| Max lifting height | 3000‑6000 mm (customizable) |
| Drive system | Full AC drive motor |
| Steering type | Electric power steering |
| Tyre type | Solid rubber tire |
| Battery type | Lead‑acid battery / Lithium‑ion battery(optional) |
| Travel speed (loaded) | ≈12 km/h |
| Lifting speed (loaded) | ≈0.35‑0.45 m/s |
| Overall length (without fork) | 2580 mm |
| Overall width | 1150 mm |
| Over‑all height (mast lowered) | 2150 mm |
| Fork size | 1070×122×40 mm |
| Service weight (with battery) | 4200 kg approx |
| Operating mode | Seated 4‑wheel counterbalance |
| Working environment | Indoor & light outdoor work |
Core Advantages
Full AC Motor System AC traction and hydraulic lifting motors eliminate carbon brush replacement, reduce maintenance frequency, offer powerful torque, stable acceleration and smooth direction switching.
Ergonomic Operator Cabin Wide open operating space, adjustable suspended seat, small-diameter steering wheel, easy-to-operate control levers. Effectively reduce operator fatigue during long-shift work. High-strength overhead guard meets international safety standards to protect drivers.
Our company
FAQ
Q: Can this forklift work outdoors?
A: Yes, it can work for light‑duty outdoor operations, but please avoid heavy rain.
Q: What battery options are available?
A:Lead‑acid battery is standard, lithium‑ion battery is optional for longer working hours.
Q: What is the maximum lifting height?
A:Standard lifting height is 3000mm. 3‑6 meters height can be customized.
